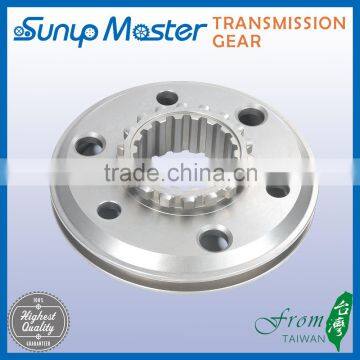

41253-1030 Transmission Gears for HINO FM226 Truck Parts

FOB Price

US$ 1 - 1,000 / Piece

50 Pieces(Min. Order)

Port ANY PORT IN TAIWAN
Payment TermsT/T

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Type	Transmission Gear	OE NO.	41253-1030
Car Make	HINO	Size	161mm*56mm
Place of Origin	Taiwan, China	Brand Name	Sunupmaster
Model Number	41253-1030	Warranty	0 Months

Product Description

HINO

PART NO.	DESCRIPTION	MODEL
1-33211502-1	INPUT 10T/21T/30T
1-33331162-2	GEAR
13643-1340	GEAR COMP.	AK
33302-1150	RING HUB ASSY
33311-1353	INPUT SHAFT 18T/26T/24T
33311-2162	INPUT 19T
33311-2181	MAIN DRIVE GEAR12T/23T/26T(=KO-51)	EH-700
33311-3180	INPUT 10/21/28T	H07C
33311-3291	INPUT SHAFT (MAIN DRIVE GEAR) (=KO-61) 10T/21T/28T	MA
33311-3620	INPUT 23T	FB
33311-3701	INPUT SHAFT GEAR (=KO-83) 10S/21T/24T	FM226
33311-3750	TOP GEAR 10S/23T/26T	AK EH-700
33311-3760	MAIN DRIVE GEAR
33311-3862	MAIN DRIVE GEAR 10T/24T/26T
33311-4230	INPUT SHAFT (=KO-77) 10S/22T/29T	H07D
33311-4320	INPUT 23T	FB
33311-4680	INPUT SHAFT 10S/23T/29T
33321-1970	MAIN SHAFT(=KO-70)
33332-2280	GEAR
33333-2510	SPEED GEAR 31T/42T	FB 2W
33333-2540	3^RD GEAR	FB
33334-1271	4^TH GEAR 28T/26T
33334-1560	SPEED GEAR
33334-1910	SPEED GEAR(=KO-58) 30T/36T
33334-2000	4^TH SPEED GEAR 19T	K.M.
33334-2043	4^TH GEAR 28T/26T	AK
33334-2130	3^RD GEAR 19T	K.M.
33334-2140	4^TH GEAR (=KO-52) 28T/26T
33334-2220	SPEED GEAR 32T/36T	H07D
33334-2310	5^TH GEAR19T	K.M.
33335-1940	SPEED GEAR (=33335-2110)45/26	FM226
33335-2110	SPEED GEAR (=33335-1940) 45T/26T	FM226
33337-2040	6^TH GEAR
33337-2370	GEAR(=KO-67) 28T/24T	FM226
33337-2460	SPEED GEAR 28T/25T
33337-2460	SPEED GEAR 28/25T	H07C
33337-2540	5^TH GEAR(=KO-78) 26/29	H07D
33337-3090	SPEED GEAR
33338-1530	SPEED GEAR 52T/30T
33338-1580	SPEED GEAR 52T/30T
33361-1861	HUB
33361-2230	HUB 54T/20T
33361-2250	HUB 48T/34T
33361-2560	HUB 66T/20T
33361-2650	HUB=33361-E0020
33361-2660	HUB
33361-36030	HUB54T/46T
33363-1053	SLEEVE SYN 42T
33363-1230	SLEEVE
33363-1370	SLEEVE (=KO-74) 48T
33363-1681	SLEEVE
33363-1721	SLEEVE
33363-1732	SLEEVE
33363-1805	SLEEVE
33363-1821	SLEEVE 48-12T
33372-1220	DOG TEETH
33363-1841	SLEEVE
33363-37020	SLEEVE54T-6T
33371-1850	SYN.RING
33371-2270	SYN.RING
33372-1220	DOG TEETH 48T/24T
33372-1271	DOGTEETH54T/26T
33372-1330	CONE SYN 57T/36T
33372-1340	CONE SYN 5/6 42T/28T
33372-1570	GEAR 57/29T	H07D
33372-2190	CONE 57T/29T
33372-2230	GEAR (2230) 34T/60DT
33411-2730	COUNTER GEAR 11T/20T/27T/34T	MA
33411-2780	COUNTER GEAR12T/22T/28T/36T	FB112
33411-3000	COUNTER GEAR LARGE (=33411-3001=KO-69) 26T/21T/33T/14T	EM100
33411-3001	COUNTER GEAR LARGE (=33411-3000=KO-69) 26T/21T/33T/14T	EM100
33411-3240	COUNTER GEAR (=KO-82) 12T/22T/28T/36T	H07D
33411-3530	COUNTER GEAR(=KO-88) 12T/22T/30T/37T
33422-1211	SIDE GEAR 41T (KO-53)
33422-1410	GEAR	K.M.
33422-1900	GEAR (=KO-53) 41T
33422-1960	GEAR 32T
33426-1041	COUNTER GEAR
33426-1311	4TH GEAR
33426-2020	SPEED GEAR(=KO-72) 49T	FM226
33426-2110	COUNTER GEAR (=KO59) 44T	H07C
33426-2271	GEAR 43T
33426-2380	GEAR(=KO-79) 46T	H07D
33429-1041	COUNTER GEAR
33429-1680	GEAR TRANS (=KO-68) 40T
33429-1930	COUNTER GEAR (KO-60) 39T	H07C
33429-1931	GEAR (KO-60) 39T
33429-1932	GEAR (KO-60) 39T
33429-2210	GEAR (KO-80) 42T	H07D
33461-1140	REVERSE GEAR(=KO-75) 19T/28T
33461-1650	MAIN DRIVE GEAR (=KO-81) 23T
41205	GEAR TRANS 2D 1^ST GEAR
41233-1030	GEAR (=41253-1030=KO-65) 29T	FM226
41253-1030	GEAR (=41233-1030=KO-65) 29T	FM226
41252-1070	P.A. GEAR (=KO-64) 36T/25T/21T	FM226
41254-1050	GEAR (=KO-66) 25T/29T	FM226
41331-1060	DIFF SIDE GEAR (=41331-89202) 16T/29T
41331-1320	SIDE GEAR 16T/25T
41331-1330	SIDE GEAR 16T/36T	FM226
41331-1440	SIDE GEAR (=KO-57) 16T/29T
41331-1520	SIDE GEAR (=KO-84) 16T/29T
41331-89202	DIFF SIDE GEAR (=41331-1060) 16T/29T
41341-1030	PINION GEAR (=KO-85) 10T
41341-1040	DIFF PINION GEAR (=41341-89202)
41341-1050	PINION GEAR
41341-1100	PINION GEAR (=KO-76) 9T	FM226
41341-1280	PINION GEAR (=KO56) 10T
41341-89202	DIFF PINION GEAR (=41341-1040)
41371-1070	SPIDER (W/1040 & 1060)
41507-1011	MAINSHAFT 37T/18T/34T
41507-1020	MAINSHAFT 37T/39T/37T
44351-1023	HYDRAULIC GEAR
TK-024(32211-P0414)	COUNTER GEAR13/21/18

All

ABOUT US

Established in 2005, YI WAY(SUNUP MASTER SINCE 1983) manufactures a wide variety of transmission gears for autos, motorcycles, and machines. Recently, in compliance with production, marketing needs, and customers' strict requirements, we have continuously imported precision manufacturing equipment and inspection instruments from Europe, America, and Japan.

FACTORY VIEW

INSPECTIONS

TOOTH FORM TESTER

COORDINATE MEASURING MACHINE

PACKING (CUSTOMIZED BOX IS OK)

CERTIFICATION

1.CUSTOMIZED ALL KIND OF TRANSMISSION GEARS .

2.ANY PORT IN TAIWAN.

3.IF YOU HAVE ANY QUESTIONS PLEASE CONTACT US ANYTIME .

SKYPE:SUNUPMASTER29
