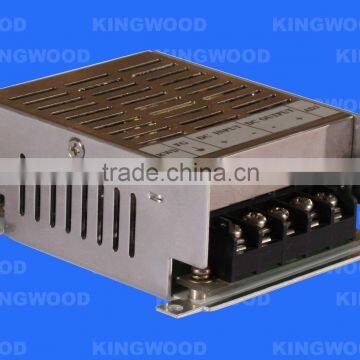

DC TO DC CONVERTER

FOB Price

Negotiable / Set

1 Set(Min.Order)

Supply Ability 1000 Set / Sets per Month
Port Guangzhou
Payment TermsT/T Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Guangdong, China	Brand Name	KINGWOOD
Model Number	DD48T1203(DD24T1203)	Input Voltage	48V(38~60)/24V(18~36)
Output Voltage	12V	Output Current	3A
Output Power	Other, 36W

Product Description

Specifications

It using the most advanced PWM technology and the most stable and reliable circuit topology

Introduction:

This series of DC / DC switching power supply are designed for a variety of communications electronics equipment, such as program-controlled switches, microwave equipment, optical fiber communication equipment etc. which are high efficiency, high performance, high stability, high reliability, and which use the most advanced PWM technology and the most stable and reliable circuit topology.

The series are small size, light weight, high efficiency, wide operating temperature range, strong anti-jamming capability, fast dynamic response, high stability, smal noise ripple, and with strong protection features, which apply to CNC machine tools, data-processing and other equipment, and which can be used as charging and discharging equipment for battery.

Features:

1. Small size, light weight

2. High reliability, low price

3. Wide input voltage range of the circuit

4. Basically protect circuit

5. Good ability to adapt to the environment

6. 8 hours, 100% full load aging and a full range of functional tests

Technique Parameter:

Technical Data	DD48T1203	DD24T1203
Input Rated Voltage （Vdc）	48 （38~60）	24 （18~36）
DC Output Voltage （Vdc）	12
DC Output Rated Current (A)	3
Precision Regulators (%)	≤±1
Load Regulation (%)	≤±0.5
Output Voltage Range (%)	±10
Output Limit (%)	110～120
Ripple Wave (mV)	≤100
Efficiency (%)	≥81
Insulation Voltage Parameters	Input-Output: AC0.5KV/1min Input-Substrate: AC0.5KV/1min Output-Substrate: AC0.5KV/1min
Working Environment	－10~+50; 20%~90%RH.
Storage Environment	－20~+85;10%~95%RH.
Thermal Methods	Continuous work, Self-ventilation
Dimension (L×W×H)(mm)	Aluminum Chassis 88×70×38
