Home > Products > FTTH BOX > Supply outdoor 1*12 core Fiber optic distribution box FTTH BOX with 12core

Supply outdoor 1*12 core Fiber optic distribution box FTTH BOX with 12core

FOB Price

USD $1 - $10 / Piece

10 Pieces(Min.Order)

Port Ningbo or Shanghai
Payment TermsT/T L/C D/P D/A Credit Card PayPal

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Zhejiang, China		Brand Name	HIKINGBOX
Model Number	HB-GFX013

Product Description

Product Name : Supply outdoor 1*12 core Fiber optic distribution box FTTH BOX with 12core

Specifications HIKINGBOX

1.PC/ABS plastic material
2.12 cores
3.1inlet&12outlet ports.
4.Can loaded with 12pcs SC adapters

Features:
1. Up to 12 pcs of drop cable
2.1ports for outdoor cable in
3.12ports for drop cable or indoor cable out
4 can accommodate 1x4 and 1x8 1x16 PLC splitter (or 2x4 or 2x8)
5. Wall mounting and pole mounting application

Application:
1. FTTH access network
2. Telecommunication networks
3.12ports for drop cable or indoor cable out
4. CATV networks
5. Data communication networks
6. LAN

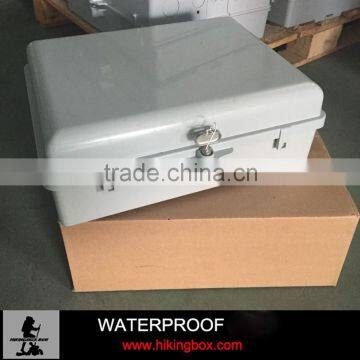

Photos HIKINGBOX

PART NO.:HB-GFX010

Dimensions HIKINGBOX

Type	Dimension(mm)	Max capacity cores
HB-GFX01	23520060	12
HB-GFX02	26523085	12
HB-GFX03	26523085	12
HB-GFX04	27521570	12
HB-GFX05	300270100	16
HB-GFX06	22018062	16
HB-GFX07	22018062	24
HB-GFX08	379290115	24
HB-GFX09	379293120	16
HB-GFX10	340265115	12
HB-GFX11	340265115	16
HB-GFX12	420320125	36
HB-GFX13	420320125	32

Description HIKINGBOX

Optic fiber boxes is applicable PLC coupler to a terminal access links FTTH access system. It is especially for connecting and protection for fiber cable for FTTH. This terminal box applies to the communications room and various network room wall installation or desktop installation.

Feature:

1. The design of the two-tier structure, the upper wiring layer optical splitter, lower for fiber splicing layer.

2. Optical Splitter module drawer modular design with a high degree of interchangeability and versatility;

3. The fiber optic cable to enter the number of:1x2 root (lower into the cable); The FTTH fibers enter the number of : 8 x 2 (under into the fiber);

4. 1SC or FC panels and each panel can hold 6 adapters

5. Box made of SMC material

General:

Relative Humidity:≤95%(+40°C);

Operating Temperature:-40°C~+60°C

Dimension:400mm x 300mm x 110mm

Model	HB-GFX010
Dimension (mm)	340265115mm
Weight (Kg)	≥0.6kg
Protection Rating	IP 65
Material	SMC/PC/cold-rolled sheet
Installation	Wall/Pole Mountable
Samples	Available

Application:

1.Widely used in FTTH (Fiber To the Home) access network

2.Telecommunication Networks

3.CATV Networks

4.Data communications Networks

5.Local Area Networks

6.Suitable for Telekom UniFi

Accessories:

Cabinet keys; Plastic expansion screw, Self-tapping screws; Hose clamps, Shrinkable sleeves, etc.

We always commitments to High-Quality with every product:

With more than 10 years experience, our customer all around the world.

Welcome to visit our factory!

Any interesting or question you have, just advice me!

Any inquiry will be replied without delay!
