Home > Products > Lockable gas springs > Gas Strut Lock Type(ISO9001:2008)
Gas Strut Lock Type(ISO9001:2008)
- SHANGHAI NINGBO
- T/T
You May Like
-
Lock Type Compression Gas Spring (ISO9001:2008)
-
Locking Gas Spring Manufacturer China (ISO9001:2008)
-
Hanghzou Manufactory On Sale Lockable Gas Spring With Cables and Manual Handle(ISO9001:2008)
-
New Design Lockable Gas Springs for Recliner Chairs/medical Apparatus(ISO9001:2008)
-
China Professional Cylinder Locable Gas Spring for AUTO(ISO9001:2008)
-
Adjustable Gas Spring With Release System(ISO9001:2008)
Product Details
| Place of Origin | Zhejiang, China | Brand Name | FYT(gas spring) | |
| Model Number | FYT-JKQ-25 | Style | Cylinder | |
| Load Type | Compression | Material | Stainless Steel | |
| Usage | Other, any need for locking |
Product Description
Specifications
gas strut lock type(ISO9001:2008)1.practical and economic
fessional design
3.durable and attactive
4.good quality
gas strut lock type(ISO9001:2008)
*Features

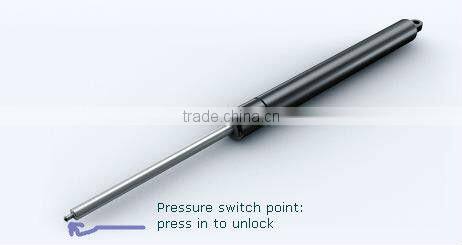

1. Free lockale over the complete stroke
2. High corrosion resistence
3. Housing: black ,white or silver ( chromate treatment if any requirement)
4.Piston rod: pqp rod
5.Minimal friction coefficient to achieve the lowest extention force ( little oil chamber)
6.Lower breakaway force
7.Installaion position: any (We offer many kind connectors,such as ball jionts, forked connector, plastic connector or others you like )
8.Maintenance-free and ready for installation
9.Adjustable filling force (optional)
10.Many kind of locable gas struts; with cable and button system. For your choice.
11.Long service life ( 50000 cycle guarantee,through(ISO9001) )
*Usage
It is widely applied in medical equipments,chairs and other product.The gas spring with some release mechanism can stop at the arbitrary position, then to make heavy locking force(can reach above 10000N).
*Technical parameter
| Rod diameter [mm] | Tube diameter [mm] | Stroke [mm] | Extended lengh [mm] | Force rangeN |
6 | 15 | 20-250 | 2×stroke+60mm | 20-400N |
| 8 | 18 | 20-300 | 2×stroke+80mm | 50-800N |
| 10 | 22 | 20-400 | 2×stroke+85mm | 100-1500N |
| 12 | 22 | 20-400 | 2×stroke+85mm | 100-2000N |
| 14 | 28 | 20-500 | 2×stroke+100mm | 100-2500N |

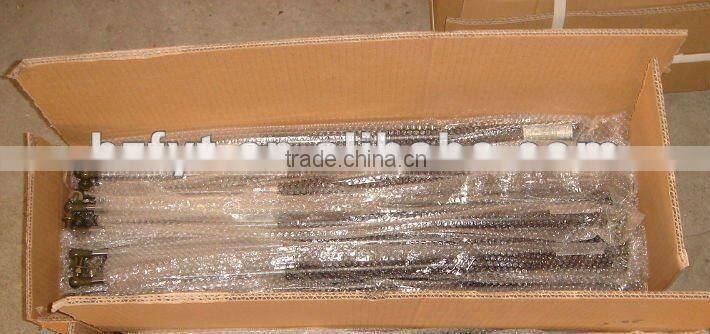

*Packing:each is paked in plastic bag,and 100 or 200 bags per CTN
* Delivery: 20 days after receipt of payment
