OEM is Accept Furniture Piston Gas Spring(ISO9001:2008)
- ningbo\shanghai
- T/T Credit Card
You May Like
Product Details
| Brand Name | FYT | Model Number | FTY-YQ-19 |
Product Description
Specifications
furniture piston gas spring(ISO9001:2008)1.It has strong stability when using
2.no noise ,slience.
3.high quality
4
gas spring for furniture(ISO9001:2008)
1.It has strong stability when using
2.Competitive price and best quality
3.According your drawing or dimension
4. Electroplated surface
5. Full-stage damper
6. Silence design
7. 100 thousands time quality guarantee
8. Forces: 50N, 80N, 100N, 120N or as your requirement
9. Mounting on metal frames of doors and flaps
10. Mounting on wooden doors and flaps and so on.

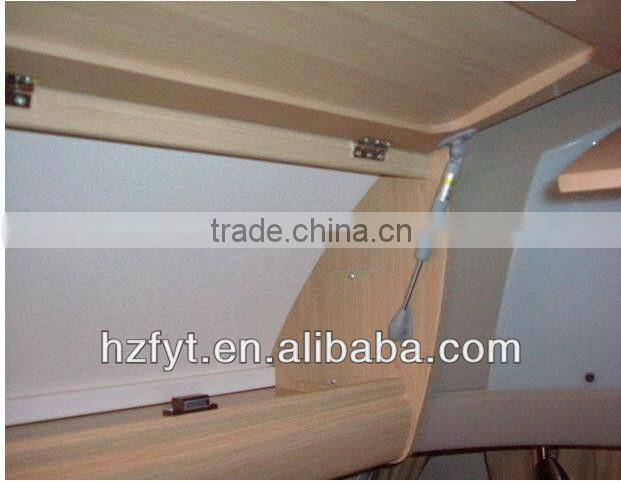

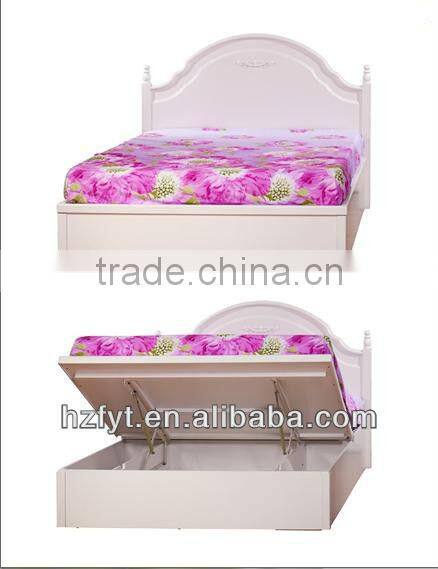

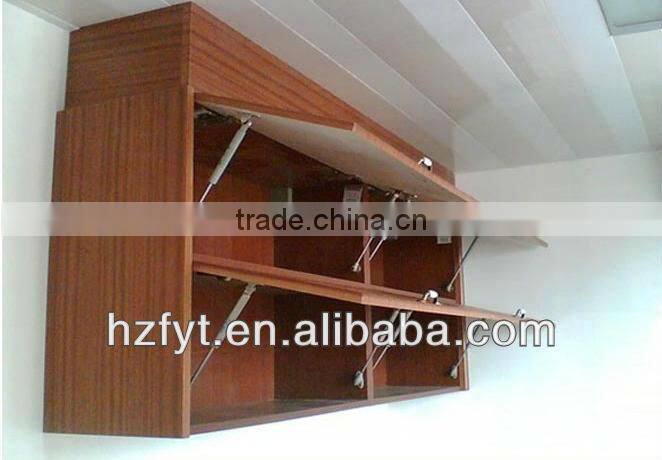

Show some cases (under you bed or your tool box or curpboard doors...)
makes it easier to lift up ,more convenient o(∩_∩)o
neat, natural and poised, slicence when operating, convenient of course.
Quality control
1.Use the material from Qingdao city which prodeced the best material in China.
2.Advanced machine make the products more nice, and reduce the lead time.
3.Increase the usage time
4.Has exactly working on every prodution.
5.also has test machine ensure the qulity of gas strut.
Technical parameters

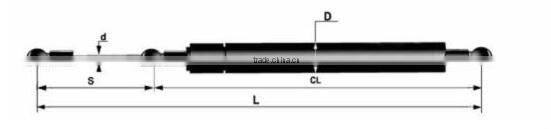

Type | Diameter of Rod (d) | Diameter of Tube (D) | Stroke (S) | Extension Length (L) | Force |
YQ6/15-001 | 6mm | 15mm | 88mm | 245mm | 50N-400N |
YQ6/15-002 | 88mm | 250mm | |||
YQ6/15-003 | 100mm | 280mm | |||
YQ6/15-004 | 130mm | 350mm | |||
YQ6/15-005 | 150mm | 385mm | |||
YQ8/18-001 | 8mm | 18mm | 84mm | 245mm | 50N-700N |
YQ8/18-002 | 96mm | 275mm | |||
YQ8/18-003 | 103mm | 290mm | |||
YQ8/18-004 | 113mm | 320mm | |||
YQ8/18-005 | 145mm | 375mm | |||
YQ10/22-001 | 10mm | 22mm | 150mm | 390mm | 100N-1500N |
YQ10/22-002 | 165mm | 430mm | |||
YQ10/22-003 | 196mm | 500mm | |||
YQ10/22-004 | 200mm | 510mm | |||
YQ10/22-005 | 200mm | 581mm | |||
YQ10/22-006 | 210mm | 530mm | |||
YQ10/22-007 | 211mm | 528mm | |||
YQ10/22-008 | 225mm | 510mm | |||
YQ14/28-001 | 14mm | 28mm | 58mm | 250mm | 100N-2500N |
YQ14/28-002 | 185mm | 450mm | |||
YQ14/28-003 | 200mm | 525mm | |||
YQ14/28-004 | 250mm | 595mm | |||
YQ14/28-005 | 300mm | 716mm | |||
YQ14/28-006 | 350mm | 830mm |
Packing:each is packed in plastic bag,100 or 200 bags per CTN.
Delivery:in 20 days after reciept of payment.
