Ebike Battery 48v 14Ah Dolphin Type With Sanyo Cell
US$ 310 - 310
/ Piece
1 Piece(Min. Order)
- shanghai/ningbo
- Credit Card
You May Like
-
Downtube Sanyo Cell Ebike Battery 48v 14Ah Fit Bbshd Mid Motor
-
48v 14ah Dolphin Battery Sanyo 3500 Power Cells Fit Bbs02 Bbshd
-
2016 48v 14ah Dolphin Battery Sanyo 3500 Power Cells Bafang BBSHD & BBS02 Ready
-
36v 11.6ah Electric Bicycle Rear Rack Battery
-
Bicycle Lithium Battery With Led Light
-
Electric Bicycle Rear Rack Li-polymer Battery
Product Details
| Part | Wheel | Place of Origin | Jiangsu, China | |
| Brand Name | sanyo | Model Number | Dolphin |
Product Description
2016 48v 14ah Dolphin Battery Sanyo 3500 Power Cells Fit Bafang BBSHD & BBS02 Ready

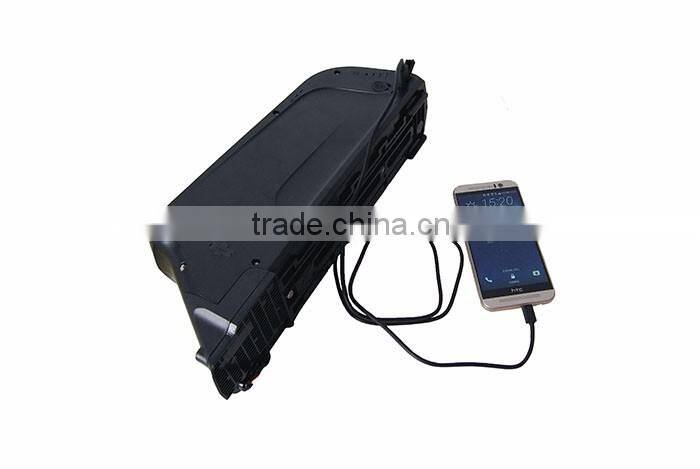

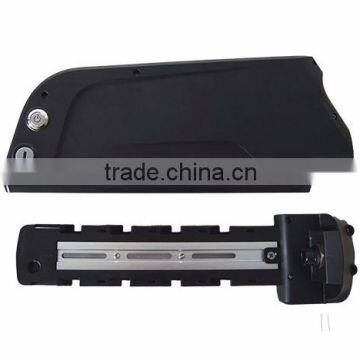

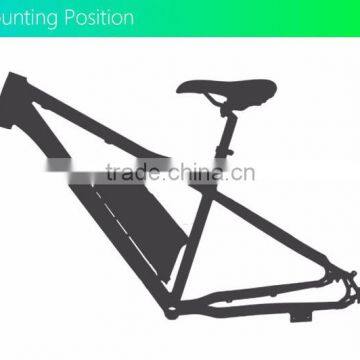

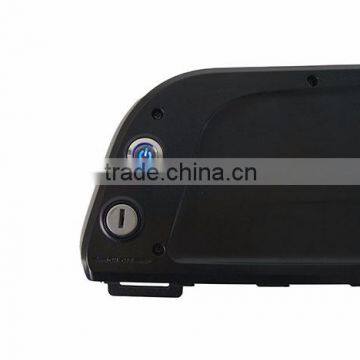

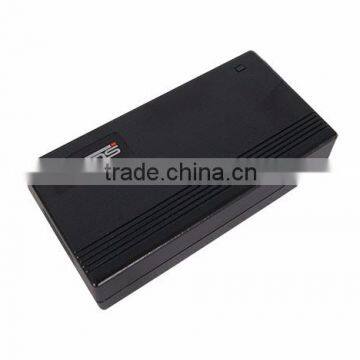

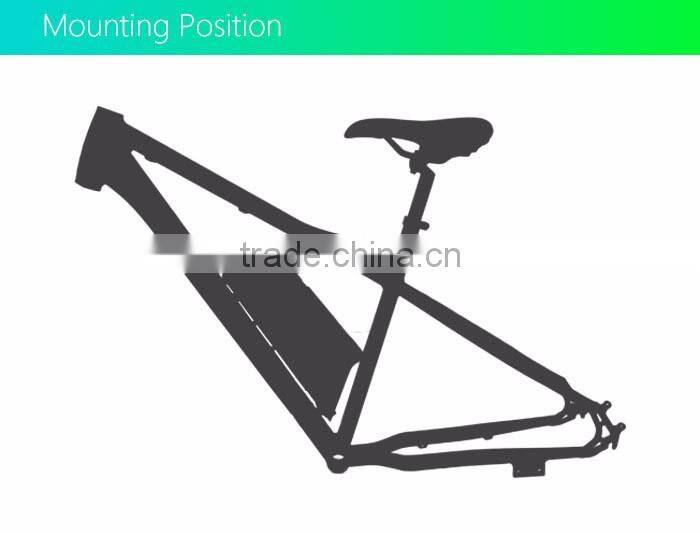

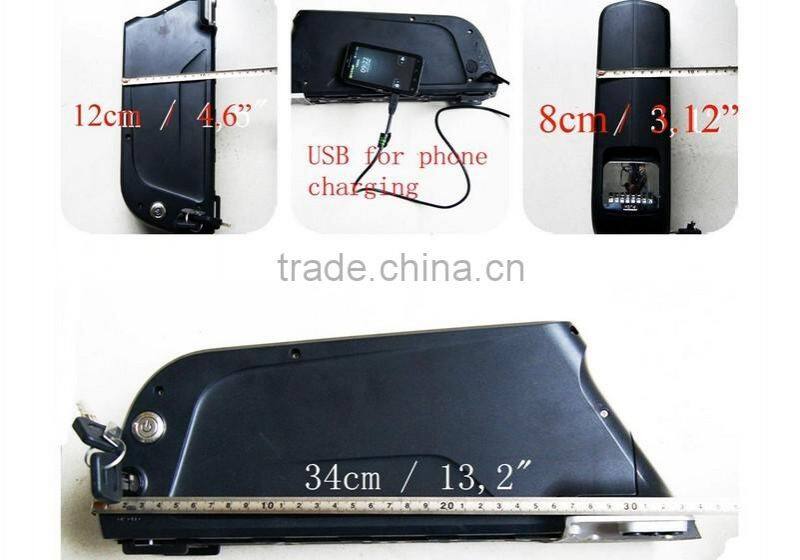

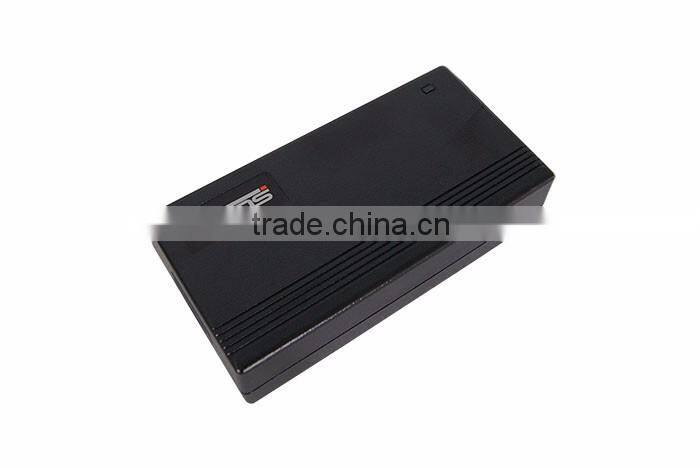

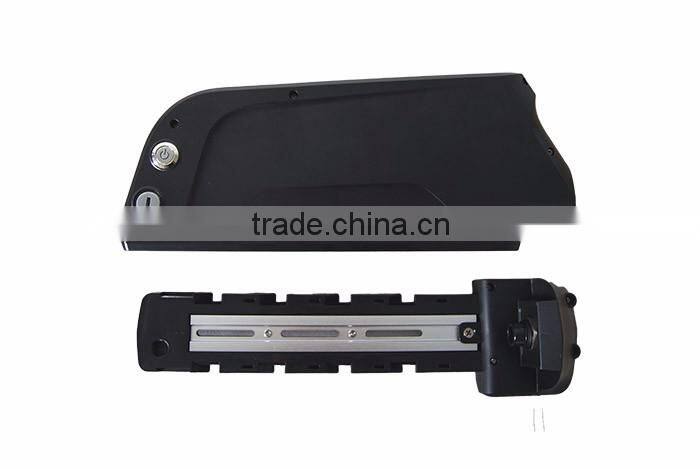

48V 14AH New Style Sanyo Dolphin Bottom Tube Bottle Battery package in black or black with gray accents and Li-ion Battery (Sanyo 3500mah Power Cells) with built in 30a BMS and 2a charger (< 8 hours to charge). This battery was designed to run the Bafang BBSHD BBS03 and BBS02 for the longest time with the greatest efficiency in the smallest space in your triangle. It even has a usb accessories (phone or tablet) charging port.
Specifications:
Cell Brand: Sanyo
Battery Type: LiNiCoMn2O4
1. Basic Characteristics;
Working temperature
- Charge Temperature : 0~45°C
- Discharge Temperature -20~65°C
- Retention of charge (store in one month): ≥95%
2. Technical Data
- Rated Voltage: 48V
- Rated Capacity C1: ≥ 14Ah
- Battery Resistance: ≤100mΩ
- Charge Way of Charge:CC/CV
- Standard Charge Current: 2A
- Max Charge Current: 5A
- Max Charge Voltage: 54.6V
- Cell Overcharge Protection Voltage: 4.25V/Cell
- Discharge Standard Discharge Current: 30A
- Over Current Protection: 80±10A
- Discharge Cut-off Voltage: 39V
- Cell Overdischarge Protection Voltage: 3.0V/cell
- Ratio Discharge:
1C >96%C1
2C >93%C1
3C >90%C1
3. Safety Test (No fire, No explosion)
- Short Circuit Safety Test
- Overcharge Safety Test
- Crush Safety Test
- Needling Safety Test
- Extrusion Safety Test
- 130°C High Temperature Safety Test
Specifications:
Cell Brand: Sanyo
Battery Type: LiNiCoMn2O4
1. Basic Characteristics;
Working temperature
- Charge Temperature : 0~45°C
- Discharge Temperature -20~65°C
- Retention of charge (store in one month): ≥95%
2. Technical Data
- Rated Voltage: 48V
- Rated Capacity C1: ≥ 14Ah
- Battery Resistance: ≤100mΩ
- Charge Way of Charge:CC/CV
- Standard Charge Current: 2A
- Max Charge Current: 5A
- Max Charge Voltage: 54.6V
- Cell Overcharge Protection Voltage: 4.25V/Cell
- Discharge Standard Discharge Current: 30A
- Over Current Protection: 80±10A
- Discharge Cut-off Voltage: 39V
- Cell Overdischarge Protection Voltage: 3.0V/cell
- Ratio Discharge:
1C >96%C1
2C >93%C1
3C >90%C1
3. Safety Test (No fire, No explosion)
- Short Circuit Safety Test
- Overcharge Safety Test
- Crush Safety Test
- Needling Safety Test
- Extrusion Safety Test
- 130°C High Temperature Safety Test
