24v 180w Motor(2 Rats) Electric Power Wheelchair Kit
US$ 485 - 490
/ Piece
5 Pieces(Min. Order)
- Shanghai China
- T/T Credit Card
You May Like
Product Details
| Part | Other, electric power wheelchair kit, electric power wheelchair kit | Place of Origin | Jiangsu, China | |
| Brand Name | cnebikes | Model Number | electric power wheelchair kit |
Product Description
Specifications
1.24v 180w motor(2 rats)electric power wheelchair kit2.Maximum load:120kg
3.24v 17ah li-ion battery
4.Net weight:20kg
5.CE
Product detail:
1.24v 180w motor electric power wheelchair kit ( motors for my manual wheelchair )

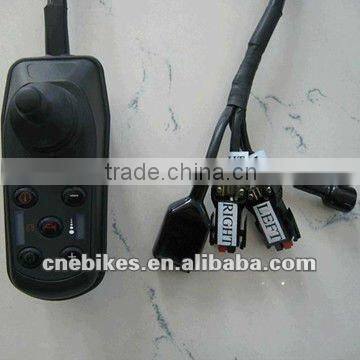

(1* controller 2* wheel 2* motor)
2. 24v 17ah battery
3.Color of the frame:silver-grey black happhire
3.CE UL
Specification:
| item | parameters |
| contour dimension | 1150×700×930mm |
| wheel base | 312mm |
| wheel tread | 535mm |
| road clearance | 85mm |
| least radius of gyration | 1.2m |
| net weight | 15kg |
| maximum load | 120kg |
| Front wheel specifications | 7.5 inch |
| Rear wheel specifications | 24 inch |
| Motor Voltage | 24V(DC) |
| motor power | 180W |
| battery | li-battery,24V 17Ah |
| chargers input | AC110V/AC220V |
| charger output | 27.2(DC) |
| maximum range | ≥20Km |
| maximum speed | ≤6Km |
| climbing ability | ≥8° |
| Slope ability | ≥8° |
| longitudinal stability | 20° |
| lateral stability | 15° |
| Obstacle-navigation hight | ≥40mm |
| Obstacle-navigation width | 100mm |
