Home > Products > paper tube rolling machine > pyrotechnics paper tube core making machine CS-8type
pyrotechnics paper tube core making machine CS-8type
- shanghai
- T/T
You May Like
Product Details
| Product Type | Paper Core Machine | Processing Type | Winding Machine | |
| Place of Origin | Hunan, China | Brand Name | YOVON | |
| Model Number | cs-8 type |
Product Description

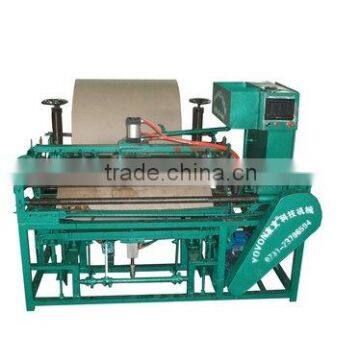

cs-8 type tube making machine (full-auto)
1. DETAIL MESSAGE:
full-auto paper tube making machine for fireworks. it can roll (full-auto) glue and cut tube and drop out tube on one machine. It need pump. The machine is used for producing parallel paper tube and then cut it into short tubes automatically. It consists of paper stand, gluing device (automatic cycle system with diaphragm pump), auto-water-adding system, paper cutting device, tube forming, tube-cutting and discharging device. The machine is equipped PLC and step motor with machine. .
It is used for producing all kind of paper tubes/cores, such as fireworks tubes, cloth core, cotton yarn, fax paper, plastic-wrap, paper can for tea packing and many other paper tubes.
2. Technical parameters
Technical parameters CS-8 type | |
Number of roll paper | 3-10 layer |
Tube ID | 25-100mm |
tube thickness | 1-6 mm |
Applicable paper gram | 180-300gsm |
Max. Paper tube length | 1220mm |
Roll core mold fixed | Three claws chuck |
Winding head | 2 rolls of belts |
Cutting tube mode | Single circular knife cutting |
Glue way | Single sides |
operation | 1 person |
Paper delivery speed | 12 sheets/min |
Speed control | transducer |
Applicable glue | white glue/Tapioca starch glue |
Input power | 6*1.1KW/380V/50HZ/3phases |
weight | 750 kg |
Main frame size | 2200×2500×1400mm |
