Jianan rote control energy meter testing bench
- Ningbo china
- T/T L/C Credit Card
You May Like
-
Jianan GPRS/CDMA energy saving management devices
-
10/100 bast t internet energy meter with GPRS
-
Jianan wireless based energy meter monitoring system
-
Concentrator DJGZ23-NBJN07
-
5A 10A 40A 60A 80A 100A digital ac voltmeter and ammeter
-
DDS149-97 Single phase measuring instrument electric meter flow meter
Product Details
| Place of Origin | Zhejiang, China | Brand Name | JIANAN | |
| Model Number | DJGL33-NBJN05 | Display Type | Analog Only | |
| Phase | Other, None | Measuring Energy Range | 5A,10A | |
| Accuracy Class | 2.0 | Output Voltage | 220-240V | |
| Operating Temperature | -40~+70 | Dimensions | 160x112x71mm |
Product Description

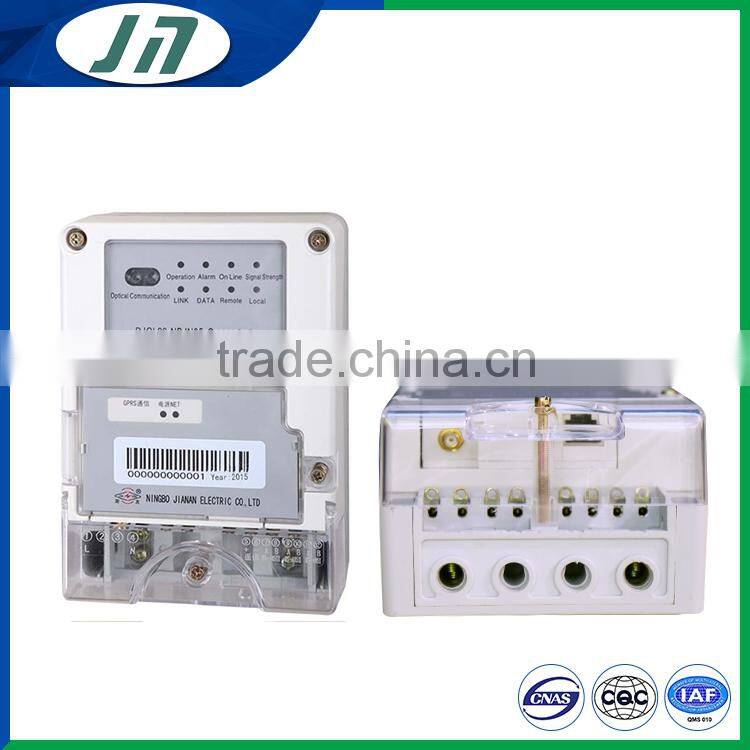

Jianan rote control energy meter testing bench
Product Overview
munication way can be customized from: GPRS/CDMA,EPON optical fibre communication,10/100 Bast T internet
2.small size, low consumption, easy to install, reliable, no need maintenance
llecting and storing energy value, day frozen energy value and balance date frozen energy value
ncentrator can detect voltage deviation and voltage qualified rate and overrun rate function
5, timing acquisition: concentrator gathering directly by means of corresponding data of specified items
6, timing, automatic data collection: concentrator can be set according to the master station cycle to read meter
7, automatically again calling: concentrator will read meter again if can not receive data in schedule time, once fail again, a time stamp will be generated, and report to the master station.
Main technical parameter
Item | Characteristics |
Voltage Reference voltage(Un) Operating voltage range | 220-240V 70%120%Un |
Current Basic current(Ib) Maximum current(Imax) Starting current | 5A,10A 40A,60A,80A,100A 0.4%Ib |
Frequency | 45Hz~65Hz |
Power Consumption Non-Communication status |
≤1.5W 10VA ≤3W 12VA |
Humidity | ≤95% |
Temperature Operation range Limit range for storage and transport | -25℃~60℃ -40℃~70℃ |
EMC Electrostatic discharges(Contact discharges) Electrostatic discharges(Air discharges) Surge immunity test Fast transient burst test Electrostatic RF fields(80MHz to 2000MHz) | 8kV 15kV 4kV 4kV/100KHz 10V/m(with current),30V/m(without current) |
Insulation strength AC voltage test Impulse voltage test | 4kV during 1 min 1.2/50μs mains connections 6kV |
Accuracy | 2.0 |
Protection rate | IP54 |
Communication Interface(protocol) Optical communication RS485 PLC/RF USB Internet |
|
Products details

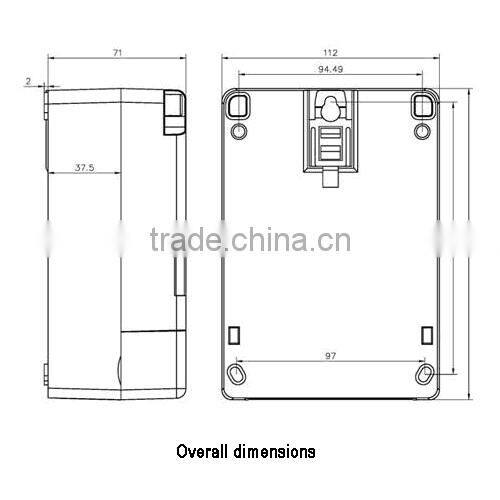

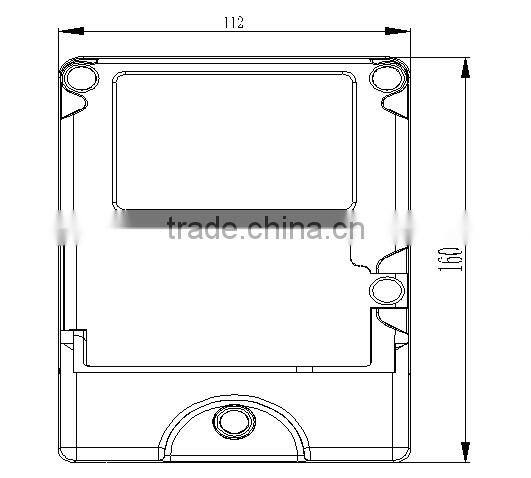

Dimension
Wiring diagram


AQ
1. Are you a factory or trading company?
We are a factory.
2. What is the location of your company? How can I visit there?
1). Our factory is located in #711, Keji road, Cixi ,Ningbo, China
2). 2.5 hours' drive from Shanghai Pudong International airport, 1.5 hours' drive from Ningbo airport or Hangzhou airport.
3. Can you do OEM?
Yes, we can do OEM products. It's no problem.
4. How can I get some samples?
1) . We are pleased to offer you samples. New clients are expected to pay for the courier cost and samples fee, this charge will be deducted from the payment for formal order.
2) . Regarding the courier cost: you can arrange a RPI (remote pick-up) service upon Fedex, UPS, DHL,TNT, etc. to have the samples collected; or inform us your collection account. Then you can pay the freight direct to your local carrier company.
5. What is the lead time for samples?
The samples will be shipped to you within 5 days normally.
6. What is the lead time for mass order?
In general, it is about 15 to 25days according to order.
7. What is your payment method?
For sample order, we accept Western Union or T/T(bank transfer), For bulk order, T/T(bank transfer) or L/C(letter of credit) is accepted.
8. Can I put my own logo on the products?
Yes, it is ok.
9. What is the minimum order quantity (MOQ)?
1000 pieces.
10. What is the shipping port ?
Ningbo port except you have any other instruction.
