Working Voltage AC85-265V 50/60Hz Led High Bay Light Ip65 120 Degree
- Shenzhen or Hongkong
- T/T Credit Card
You May Like
-
2016 New Design Low Price Led High Bay Light 5 Years Warranty
-
2016 Hot Sale Low Price Industial Led High Bay Light 100w
-
China New Design Popular Led Highbay Pendant Lamp 100watts
-
Newest Design High Quality White Led Highbay Pendant Lamp 100watts
-
Hot Sell Delicate Multicolor Led Industrial High Bay Lighting
-
2016 Hot Selling Custom Led Light Bay Lighting
Product Details
| LED Light Source | SMD | Warranty(Years) | 1 | |
| Input Voltage(V) | AC100-240V | Lamp Power(W) | 100 | |
| Lamp Luminous Flux(lm) | 9600 | Lamp Luminous Efficiency(lm/w) | 91% | |
| Color Temperature(CCT) | Pure White | Working Temperature(℃) | -40, 55 | |
| Working Lifetime(Hour) | 50000 | Lamp Body Material | Aluminum Alloy | |
| IP Rating | IP65 | Certification | CE, FCC | |
| Place of Origin | Guangdong, China | Brand Name | DAPTER | |
| Model Number | XTY-ML100 |
Product Description
Working Voltage AC85-265V 50/60Hz led high bay light ip65 120 degree
LED High Bay Lamp Conventional Technical Parameters | |
Input voltage | AC100V~240V |
Power supply frequency | 50Hz~60Hz |
Total harmonic distortion | <9% |
Power factor | >0.98 |
Power efficiency | >87% |
Working voltage of LED | DC30~36V |
Power | 50~210W |
Texture of material | Aluminum alloy |
LED luminous efficiency | 80~100lm/W |
LED initial luminous flux | >9600LM |
Luminaire efficiency | >91% |
Average illuminance | 6m 171Lux 8M 123Lux 10M 68Lux |
Uniformity of illuminance | 10>0.6 |
Correlated color temperature | 2700-7000k |
Color index | Ra>80 |
Light distribution curve | Circular spot |
Light distribution mode | LED+lens |
LED node temperature | <=80℃ |
Working environment temperature | ~40℃~+55℃ |
storage environment temperature | ~25℃~+65℃ |
Protection grade | IP65 |
Service life of light source | 50000H |

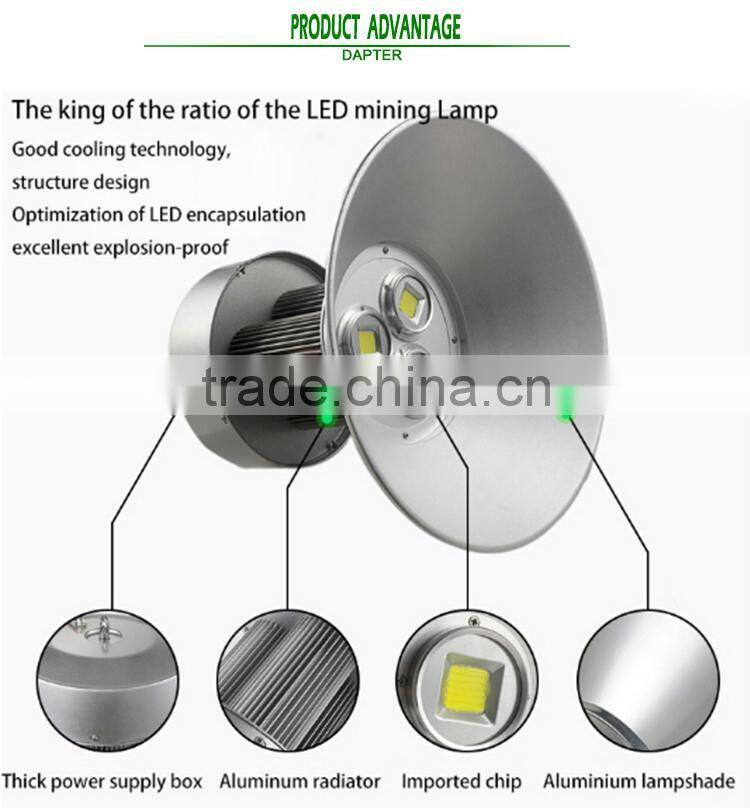

Product Features
1. The lamps are the use of PAMMA optical lens.The lampshade can be used according to theindustrial and mining enterprises, petroleum, chemical, metallurgical and other places.

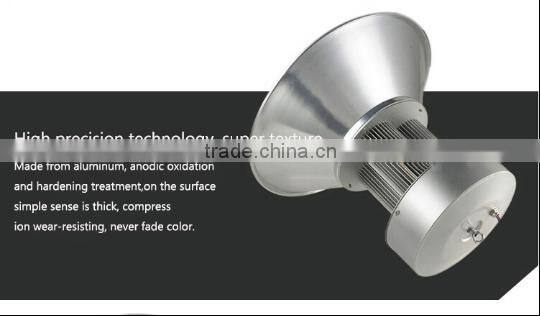

3. The lamp shell adopts high-quality aluminum,surface painted or anodized, the lamp body is delicate
and beautiful, excellent radiating performance.
4. Lamp light source adopts imported high lumen and high-power integrated chip, the built-in high
power factor constant current power supply
1, R&D staff: 20 persons
2,Sales team: 5 persons
3,Production people:400 persons
4,Production capacity: 100,000pcs per month
5,Factory size: 3000 square meter
Why Choosing Dapter?
1. 6 years solar light & charger Manufacturer.
2. Cooperated with many famous brands such as Carrefour, LIdL, Leeds, Freeloader, etc
3. High Quality Control with CE, ROHS, FCC approval.
4. Powerful RD ability ---- All products are belonging our private Mold and Own Design
5. 1 year warranty policy, up to now, our product defective rate is under 0.4%
6. 300000 kits every month to guarantee the best deliver time
How to install?
Fix the product with a right angle and make sure no shelter on the surface of solar panel.
How to use?
The product is off before delivery in order to avoid discharging during transportation. You can activate it by using the pin or related button or tearing off the film. This is depend on different item, the activate way may differ
What to do with the rainy day or Cloudy day?
The outdoor solar light is waterproof. You don’t need to worry about it. After fully charged, the capacity of battery can keep the LED working in several rainy/ cloudy days.
If you found the light brightness is down or total off, how to handle?
It prove the power of solar light battery is not enough to support normal lighting, so you need have 2-3 goods sunlight charged, especially in Winter season, the sunlight intensity is much below the standard sunlight (1000kw/m2), it may need more longer time to charge.
Why the charging efficiency is low in winter or cloudy day?
Generally the sunlight standard is 1000kw/m2, in the winter or cloudy day, the sunlight intensity are much lower than standard so the charging efficiency is lower accordingly.
1,Reply you enquiry in 24Hrs
2,Feedback of complaint in 24Hrs
3,OEM/ODM are welcomed
4,Exclusive agents in local country are welcomed
