Home > Products > Wifi camera nvr kits > Ip Camera Set Outdoor HD POE Network Cctv Security System Nvr Kit Dome Camera
Ip Camera Set Outdoor HD POE Network Cctv Security System Nvr Kit Dome Camera
US$ 226 - 263
/ Set
5 Sets(Min. Order)
- SHENZHEN
- T/T Credit Card
You May Like
-
High Quality Night Vision 4CH Wifi Kits 2.4G Wireless Cctv ip Camera Nvr 1080P Poe
-
2016 New HD POE Network Camera System Outdoor Security IP Camera SET
-
Facory Directly Sale 1080p Weatherproof Wifi ip Camera Nvr Kit
-
Facotry Wholesale 1080p 4ch Wireless ip Camera Nvr Kits
-
2016 New Design 1080p Outdoor Wifi ip Wireless Camera Kit
-
Factory Direct Sale 2mp 4CH Wifi ip Camera With Nvr Kit
Product Details
| Place of Origin | Guangdong, China | Brand Name | GAOZHI | |
| Model Number | GZ-KW44-B62W2 |
Product Description
Ip camera set oudoor easy to use home security system hikvision ir dome camerasecurity camera system
Ip camera set oudoor easy to use home security system hikvision ir dome camerasecurity camera system
| Hot sale security camera system !! | |
| 4CH AHD DVR Kits | 4CH IP camera NVR kits |
| |
Product Description
Specification

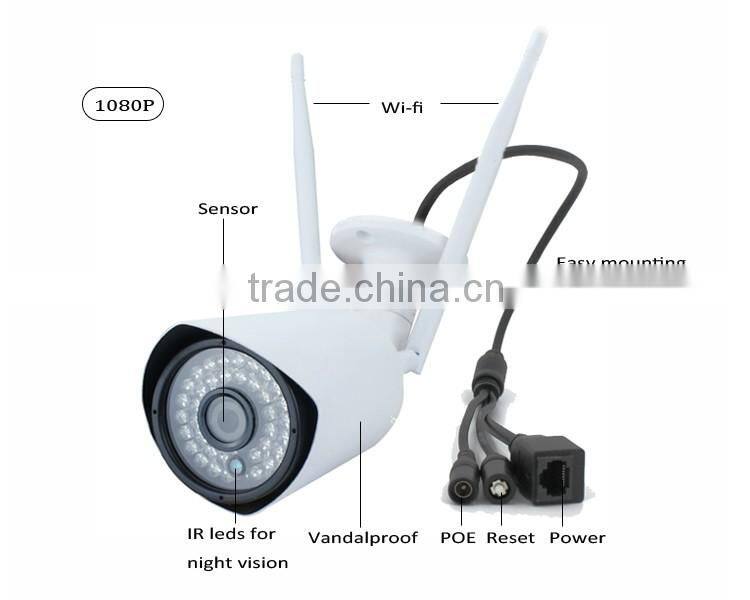

1080P WiFi IR Bullet IP Camera Model no.: GZ-IPC-B6206-W with AR 1021wifi model, 2 antennas | |
| Pictures | |
| Key features | • 1/3" 1080P progressive scan CMOS |
| Camera | Image Sensor | 1/3" 1080P CMOS | |
| Effective Pixels | 1920 (H)x1080(V) | ||
| Min. Illumination | Color: 0. 05LUX/F1.8, B/W: 0Lux (IR on) | ||
| S/N Ratio | >50dB | ||
| Backlight Compensation | BLC | ||
| WDR | Digital WDR | ||
| Noise Reduction | 3D DNR | ||
| Gain Control | Auto/Manual | ||
| Day/Night | Auto(ICR) / Color / B/W | ||
| White Balance | Auto | ||
| Electronic Shutter Speed | Auto/Manual 1/50~1/10000 | ||
| IR distance | IR distance 20 Meters | ||
| Lens | Focal Length | 3.6 mm Lens | |
| Max Aperture | F1.8 | ||
| Focus control | Fixed | ||
| Angle of View | 70°@6mm | ||
| Video | Video Compression | H.264 High Profile / JPEG Snapshot | |
| Resolution | Main Stream:1080P(1920*1080) Sub Stream: 352*288 | ||
| Video Bitrates | 1024Kbps ~ 6144Kbps | ||
| Video Frame Rate | Default 15fps @1080P, Max. 30fps@1080P | ||
| Audio | Compression | ADPCM | |
| Interface | embedded mic in | ||
| Wifi parameters | Wifi standard | ieee 802.11 a/b/g/n | |
| Frequency range | 2.4GHZ/5GHZ | ||
| Security | 64/128-bit WEP, WPA/WPA2,WPA-PSK/WPA2-PSK,WPS | ||
| Transmission rate | 11b:11Mbps, 11a: 54Mbps, 11g:54Mbps, 11n:150Mbps | ||
| Transmission distance | testing the communication distance bewtenn Wifi NVR WN3000 and Wifi IPC-B6207-W, WN3000 connected with router by cable : open environment 90 meters. Wall test, 4 walls, 33 meters | ||
| Network | Ethernet | RJ-45 (10/100Base-T) | |
| Wi-Fi | Support, IEEE802.11 b/g/n | ||
| Network Protocol | IPv4, HTTP, SSL, TCP/IP, UDP, UPnP, ICMP, IGMP, SNMP, RTSP, RTP, SMTP, NTP, DHCP, DNS, PPPOE, DDNS, FTP, IP Filter, QoS, Cloud | ||
| Network Preview | Web browser view, including IE,Chrome,Firefox | ||
| Smart Phone | Supports iPhone,iPad, Android phone,pad,Windows Mobile phone. | ||
| Compatibility | Onvif V2.1 | ||
| Max. User Access | 12 Users | ||
| General | Power Supply | DC12V | |
| Power Consumption | <6W | ||
| Working Environment | -10℃~+55℃(14°F~131°F),10%~90% | ||
| Ingress Protection | IP66 | ||
| Dimensions | Φ65 x 188mm | ||
| Weight | 360g | ||

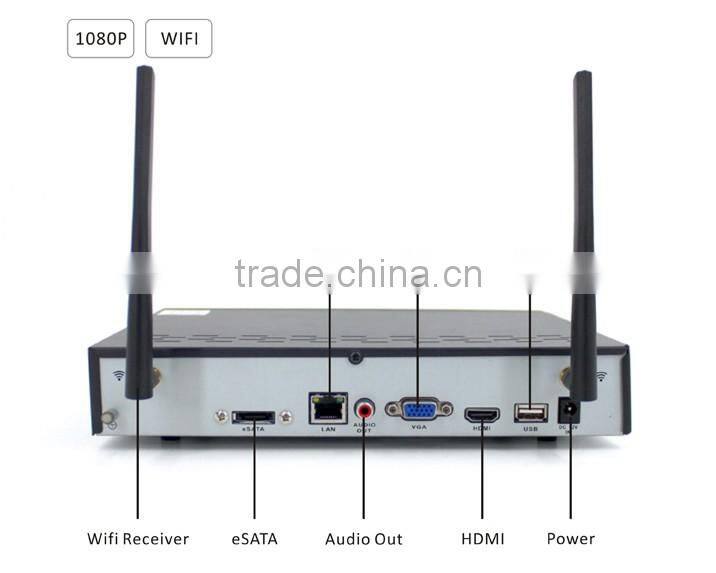

Model no.: GZ-NVR-WN3000 Main Chip: Hisilicon 3520D | |
| Pictures | |
| Key features | • 4CH 1080P/720P Wifi IP camera input; |
| System | GUI | 16-bit True Color | |
| Operating System | Embedded Linux OS | ||
| Password security | Multi-level users management, 1 Admin + 19 Users | ||
| A/V Input | Video Input | 720P/1080P WiFi IP Camera x4 | |
| Audio Input | NO | ||
| A/V Output | Decoding resolution | 720P/1080P | |
| VGA output | 1024*768,1280*720,1280*800,1280*1024,1440*900,1920*1080P (1080P) | ||
| HDMI output | 1024*768,1280*720,1280*800,1280*1024,1440*900,1920*1080P (1080P) | ||
| Audio output | 1ch RCA | ||
| Playback resolution | 720P/1080P | ||
| Synchronous playback | 4CH | ||
| HDD | SATA Devices | 1 x SATA HDD | |
| Maximum capacity | 4TB | ||
| External HDD | 1 x Esata, e-sata as storage function. | ||
| External Interface | USB Connector | 2 x USB2.0 | |
| Serial Interface | NO | ||
| 2 way audio (voice talk) | NO | ||
| Alarm input/output | Optional | ||
| Network Interface | RJ 45,10M/100 M Ethernet, ieee802.11 b/g/n support AP or Station Mode,dual antenna | ||
| Network | Network protocol | TCP/IP, SMTP, HTTP, DHCP, PPPoE, NTP, DDNS,UPnP,FTP,RTSP,Onvif,P2P | |
| Mobile Device | iPhone, iPad,Android Phone, Android Pad | ||
| System Upgrade | Supports USB update | ||
| Remote Software | StreamView APP, IE Browser,Google Chrome Browser,Firefox Browser | ||
| General | Power Supply | Input 100~240V, 12V 2A | |
| Consumption | <10W without HDD&PoE | ||
| Working temperature | -10℃~+55℃(14°F~131°F) | ||
| Working humidity | 10%~90% | ||
| Dimension ( mm ) | 260(W) x 41(H) x 230(D) | ||
| Weight ( w/o HDD/DVD±RW ) | 1.6 kg | ||

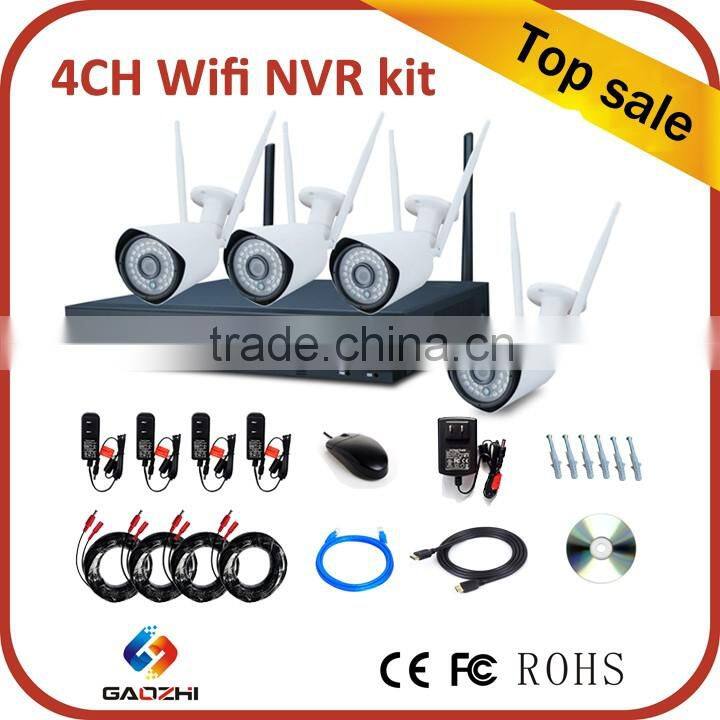

What's included
| BOM For 4CH 2MP Wifi kit, Based on R260 housing | ||||||
| NO. | Items | specification | Quantity | 1. Economy kit | 2. Standard kit | 3.Super kit |
| 1 | WN3000 -with Wifi | 4CH 2Mega @Hisilicon 3520D | 1 | √ | √ | √ |
| 2 | Original color box of NVR | with foam | 1 | √ | √ | √ |
| 3 | Adapter of NVR | 12V-2A | 1 | √ | √ | √ |
| 4 | Dryer bags | 1 | √ | √ | √ | |
| 5 | Software CD | 3.5" | 1 | √ | √ | √ |
| 6 | Remote Control with battery | 1 | √ | √ | √ | |
| 7 | USB Mouse(Red light) | USB Mouse with red light | 1 | √ | √ | √ |
| 8 | antennas of NVR | 2 | √ | √ | √ | |
| 9 | E-sata | 1 | √ | √ | √ | |
| 10 | Ethernet Cable | 3.5ft / 1m | 1 | √ | √ | √ |
| 11 | HDMI cable | 6.5ft / 2m | 1 | √ | √ | √ |
| 12 | Hard Disk | 1 | √ | |||
| 15 | 2MP Bullet Wifi IP Camera (Model:IPC-B6206-W2) | OV2710 +GM8136S | 4 | √ | √ | √ |
| 16 | Adapter of cameras | 12V-1A | 4 | √ | √ | √ |
| 17 | 18m power cable | 4 | √ | √ | ||
| 18 | antennas of cameras | 8 | √ | √ | √ | |
| 19 | Original color box of Camera | 1 package with 4 cameras | 4 | √ | √ | √ |
| 20 | Screw installation package | 4 | √ | √ | √ | |
| 21 | Outer box | 1 | √ | √ | √ | |
Company Information
FAQ
1.Compatibility
IP Cameras Support onvif 2.1,seamless integrated with different brand NVR.
NVR can only support our Ip camera .
2.Warranty
2-years free repair Warranty. For the confirmed defective products , will send free replacement in the next shipment .
3.ODM Service
Strong RD team from HUAWEI with 11 years experience, provide satisfactory ODM service. You can have your OWN logo or start-up screen for free if quantity meet the MOQ. Same to Customized package .
4.APP remote control
Both Support mobile app named Streamview ,and pc software named Smart Client for remote control.
5.Surveillance Distance
A. 2.8 mm lens : Less than 10m
B. 3.6mm lens :10m—20m
C. 6mm lens : 30m—50 m
(We have 2.8—12 mm auto-Focus camera for long distance & special condition.
