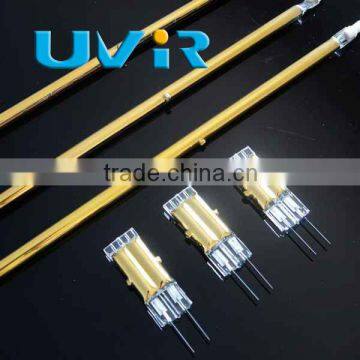

Halogen Infrared Heat Lamp Half Gold Coated Lamp
- Jiangmen
- Credit Card PayPal
You May Like
-
Halogen Infrared Heat Lamp White Coated Lamp
-
Quartz Heat Element for copier machine
-
Best selling reflector lamp L shape led replacement 500w halogen
-
Best price single tube oven tunnel infrared lamp
-
Top quality heating oven plastic welding machine
-
Best selling single tube plastic weldingtube halogen heating lamp ,heating element
Product Details
| Place of Origin | Guangdong, China | Brand Name | UVIR | |
| Model Number | NIR | Color | Other, Clear / White / Gold /Red | |
| Specification | Other, Single tube:Dia.8-28mm Twin:11x23mm /15x33mm | Material | Other, Quartz | |
| Certification | CE |
Product Description
Specifications
Energy saving Fast heatingLow investment cost Easy installation
Halogen Infrared Heat Lamp
Half Gold Coated Lamp
Halogen Infrared Heat Lamp White Coated Lamp
IR Application Area
n Paint drying
n Pre-heating of PET perform
n Silicon wafer manufacturing process in semiconductor
n Drying process in paper mill
n Plactics thermoforming
n Fusing printing ink
n And various kind of drying processes
IR Benefits and Features
Long life | 5000h on average |
High Speed | within 1 second to switch on |
Hight efficiency | more than 85% heat efficiency of full power |
High power density | up to 200w/cm |
High controllability | neither ballast nor special circuits are necessary for basic usage |
No air draughts | because of radiation(like solar energy) |
Clean and adorless | no risk of contamination over environment or target object to be heated |
Extensive assortment | many types of voltage,wattage,length,base,cables,niversal burning position is available |
Flexible | special lamp designing service on demand is available |
IR Emitter Technical Background
IR Emitter | NIR Infra Short Wave Single Tube | Short Wave Twin Tube | Medium Wave Twin Tube | Fast Response Medium Wave Twin Tube |
Power | 500-4000W | <200w/cm | 18 20 25w/cm | 80w/cm |
Max. Heated Length | Min.50 / Max.1000mm | 6400/2400w | 1500 2000 6500mm | 6400/2390mm |
Tube Cross Section | 8-14mm | 34x14 / 23x11mm | 18x8 23x11 34x14mm | 34x14 / 23x11mm |
Filament Temp.°C | 1100-2600 | 1850-2400 | 800-950 | <1850 |
Peak Wavelength | 1-2um | 1.0-1.4um | 2.4-2.7um | >1.4um |
Reflector | Gold | Gold | Gold | Gold |
Max. Power | --- | 200kw/m2 | 60kw/m2 | 150kw/m2 |
Response Time | 1s | 1s | 1-4min | 1-2s |
IR Emitter Spectrum
Twin Emitter Design
Single Emitter Design
Special Size Emitter Design
Heraeus Short Wave Twin Tube IR Emitter
| 80002677 | 80046737 | 09751713 | 09751765 | 45130750 |
| 80009069 | 80046754 | 09751751 | 09751760 | 45130753 |
| 80009073 | 80046755 | 09751741 | 09751731 | 45132045 |
| 80010767 | 80009069 | 09751740 | 09751720 | 45132827 |
| 80042199 | 80009073 | 09751761 | Heraeus | Infrared |
