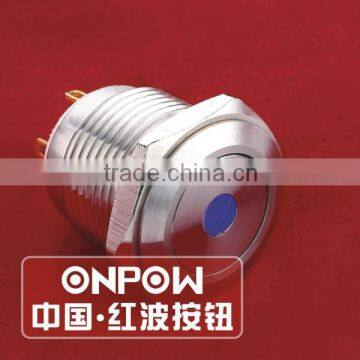

ONPOW 16mm Dot Led Lighted Momentary Metal Push Button 1NO Switch with IP65 (GQ16F-10D/J/B/2.8V/S) CE, RoHS
- 10000 Piece / Pieces per Month
- SHANGHAI / NINGBO
You May Like
-
ONPOW 16mm Hyperplane high round actuator waterproof metel push button switch with 1NO contact ( GQ16PH-10/J/S) CE, RoHS
-
ONPOW Metal body micro switch(GQ22-11W series,CE,CCC,ROHS,IP67)
-
ONPOW push button micro switches(GQ19-11W,GQ22-11W series,CE,CCC,ROHS,IP67)
-
ONPOW 22mm metal push button micro switch(GQ22-11WE series,CE,CCC,ROHS,IP67)
-
ONPOW 22mm metal push on micro switch(GQ22-11WE series,CE,CCC,ROHS,IP67)
-
ONPOW 19mm metal push on micro switch(GQ19-11W series,CE,CCC,ROHS,IP67)
Product Details
| Place of Origin | Zhejiang, China | Brand Name | ONPOW | |
| Model Number | GQ16F-10D/J/B/2.8V/S | Protection Level | IP65, IK08 | |
| Max. Current | 2A | Max. Voltage | 36V |
Product Description
ONPOW Push Button Manufacture Co.,Ltd. is currently one of the leading, fast developing manufacturer of push button switches and indicators.
- Founded in 1988 and experienced in the field of pushbutton switches for 27 years
- Certification:we have passed ISO9000 Quality Management System and UL,VDE,CE(LVD),CE(EMC),PSE,CCC,ROHS,REECH
- More than 40 patents
- About 40 series of pushbutton switches and 1-2 new series of production developed each year
- Over 1500 molds available for production
-Registered Fund: About 50 million RMB
Model Number | GQ16F-10D/J/B/2.8V/S | |
Mounting hole size | 16mm Diameter | |
Switch Rating | 2A / 36VDC | |
Contact Configuration | 1NO | |
Operation Type | Momentary | |
LED Color | Blue (other options: Red, Green, Yellow, Orange, White, Black) | |
LED Voltage | 2.8V/6V/12V/24V/36V(Outer resistor) | |
Head Shape | Flat | |
Crust Material | Stainless steel | |
IP Degree | IP65 | |
| ||
Terminal Type | Pin terminal (2*0.5mm) | |
Switching | x(double-break slow-motion contact) | |
Panel Thickness | 1~6mm | |
Torque | 5~14Nm | |
Mechanical Life | 1,000,000 cycles | |
Electrical Life | 200,000 cycles | |
Operation Pressure | About 4N | |
Operation Travel | About 2.5mm | |
Material
| Button | Stainless Steel |
Body | Stainless Steel | |
Base | PBT | |
Packing: switches with high flat button
1. Neutral packing : 40 pcs/box, 25boxes/carton
2. Upon customers' request, but the price is different with neutral packing
3. Carton size: 30*50*35 cm
Shipping: switches with high flat button
1. DHL, TNT, Fedex, UPS and other international express.
2. By air or by sea.
