Jiangmen UVIR Lamp Factory: Jiangmen, Guangdong, China; Main products: Infrared Lamp, Halogen Heater, Infrared Heater, IR Lamp, Infrared Heater

Home > Products > IR Machine > infrared conveyer heating machine

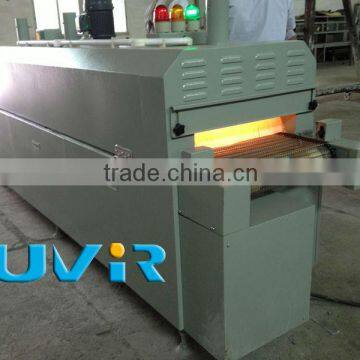

infrared conveyer heating machine

FOB Price

Negotiable / Set

1 Set(Min.Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Condition	New	Place of Origin	Guangdong, China
Brand Name	UVIR	Model Number	UVIR
Usage	Other, Grain / Berb / Fruit / Agaric	Type	Other, Infrared Oven
Power Source	Electric	Voltage	380V
Power(W)	15KW~On request	Dimension(LWH)	L8m x W0.8 x H1.2m
Warranty	1 year	After-sales Service Provided	Engineers available to service machinery overseas

Energy saving Fast heating
Low investment cost Easy installation
infrared conveyer heating machine

infrared conveyer heating machine

IR Application Area

n Paint drying

n Pre-heating of PET perform

n Silicon wafer manufacturing process in semiconductor

n Drying process in paper mill

n Plactics thermoforming

n Fusing printing ink

n And various kind of drying processes

IR Benefits and Features

Long life	5000h on average
High Speed	within 1 second to switch on
Hight efficiency	more than 85% heat efficiency of full power
High power density	up to 200w/cm
High controllability	neither ballast nor special circuits are necessary for basic usage
No air draughts	because of radiation(like solar energy)
Clean and adorless	no risk of contamination over environment or target object to be heated
Extensive assortment	many types of voltage,wattage,length,base,cables,niversal burning position is available
Flexible	special lamp designing service on demand is available

IR Emitter Technical Background

IR Emitter	NIR Infra Short Wave Single Tube	Short Wave Twin Tube	Medium Wave Twin Tube	Fast Response Medium Wave Twin Tube
Power	500-4000W	<200w/cm	18 20 25w/cm	80w/cm
Max. Heated Length	Min.50 / Max.1000mm	6400/2400w	1500 2000 6500mm	6400/2390mm
Tube Cross Section	8-14mm	34x14 / 23x11mm	18x8 23x11 34x14mm	34x14 / 23x11mm
Filament Temp.°C	1100-2600	1850-2400	800-950	<1850
Peak Wavelength	1-2um	1.0-1.4um	2.4-2.7um	>1.4um
Reflector	Gold	Gold	Gold	Gold
Max. Power	---	200kw/m2	60kw/m2	150kw/m2
Response Time	1s	1s	1-4min	1-2s

IR Emitter Spectrum

IR Machine

Heraeus Short Wave Twin Tube IR Emitter
