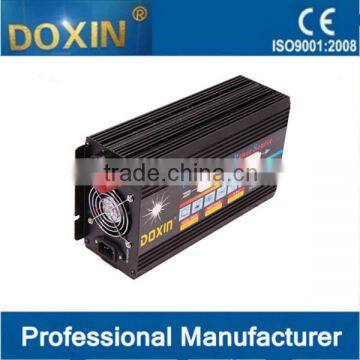

dc to ac 12v to 240v Power Inverter With Charger And UPS

Specifications

Solar power inverter

dc to ac 12v to 240v power inverter with charger and UPS

 Product Description

1. Full -automatic operation
2. High frequency
3. Power-off mode charging
4. Portable size for convenient use
5. Environmentally friendly: No noise, no fume, no fuel required
6. Cooling fan,controlled by temp. automatically, protect the equipments from overheating
7. Cost-effective inverter for home appliances, office equipments, solar/wind systems and outdoor works

  Overload protection

  Over-current protection

  High-temperature protection

  Battery reverse connection protection

  Battery high-voltage&low-voltage protection

  Built-in fuse protection, etc

2.Technical Data
Input Voltage: 24V DC
Output Voltage: 100V~120V AC / 220V~240V AC
Output Voltage Regulation: 5%~10%
Continuous Power:1000W
Surge Power: 2000W
Low Voltage Alarm: 17V+-0.5V DC
Low Voltage Shutdown: 19V+-0.5V DC
High Voltage Shutdown: 30V+-0.5V DC
Over-temperature Shutdown: 65degree +- 5degree
Frequency: 50Hz or 60Hz
No Load Current Draw: <0.3A
Efficiency: >85%
Working Temperature: 0 ~ 40degree
Working Humidity: 20%~80%
Storage Temperature: -30degree~ 70degree
Product size: 215*150*70MM
Net Weight: 2.45kg
Carton measurement:61*37.5*26CM, 8PCS/CTN

4. Detailed pictures

5. Relative hot sales products

Regarding vehicle-use power inverter with ups&charger, besides 3000w, we also have  300W, 500W,600W,800W, 1000w, 1200w,1500w ,2000W and 2500W.

6. Application:

Ideally suitable for Journeys, Camping, Tents, Boat Trip, Working on the way and everywhere, where is no electricity !
Simply connect with 12v/24v Battery as in a Car, Motorcycle, Camper or Boat and use 110v/ 220v electrical appliances.

1. It is well suitable for supplying power for your notebook, digital camera,  video camera and other appliances when you travel on the vehicle, camp, boat and other outside activities.
2. It can also be widely used in the districts with unstable power or supplied power by solar or wind energy sources.
3. Besides, it supplies a stable power for household appliances, such as TV, computer, DVD, VCD, satellite receiver, printer, fluorescent lamp, cooler, stereo, fan, electric drill, drill press, lighting, motor, game player, etc.

Mark:

1. For power inverter 500w, 600w, 800w, they should be with below 100AH car battery, to protcet the battery.

2. For inverter 1000w and above 1000w, they should be with above 150AH car battery, to make them get charged rapidly and protect the battry.

3. Adapt to various electrical appliance, like TV, DVD, fridge, air condition, computer, daylight lamp and so on.

7. Attention:

Don't use them in the high temperature

Don't overload the voltage

Don't use when the low voltage alarm is beginning

8. CE certificate

9. Application:

10. Installation

11.Wave form and plug

EU/German/ USA/UK/Universal/Australia plug are available
