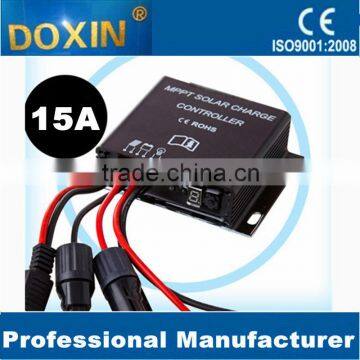

15A solar panel charge controller lighting timer controller switch 12v/24v

15A solar panel charge controller lighting timer controller switch 12v24v

1. Main Feature

1) IP 68 waterproof level and aluminum outer shell is able to effectively prevent various kinds of corrosion.

2)Automatic identification of 12V/24V system voltage.

3)LED digital display and waterproof key-operated operations,which makes use simple and convenient.

4)Ternary form charing algorithm to equally charge storge battery every week,which can effectively prevent battery from imbalance and vulcanization so that service life of battery can be prolonged.

5)Five working modes which make it convenient to use the product on various kinds of road lamps and monitoring devices.

6)Exyernally installed temperature sensor is capable of high-accurate temperature compensation.

7)Paramerter seting can be stored if there is power faiture, No need for repeated setting. Usage is simple and convenient.

2. Detailed pictures:

3. Instructions for parameters

3. Function:

This MPPT controller is not only have above mentioned special function, at the same time including completely Protecting and Controlling functions:

Overcharge protection

Overdischarge protection

Battery Reverse Current Protection

Overloading Protection

Short Circuit Protection

Reverse Polarity Connection Protection

4.Specification

5. Form a complete set:

Solar Panel: 12V solar system should use 40pcs cells laminated solar panel. The maximum power point voltage is18V above. 24V solar system should use 2pcs above mentioned solar panels. 48V solar system should use 4pcs above mentioned solar panels.

Conductor: The cable between solar panel with MPPT solar charge controller should be better calculated by 1Ampere per 1mm².

Solar Charge Controller: JUTA brand MPPT-10 Model solar charge controller Rated input Ampere is 10A. We have 12V, 24V and 48V three kinds of MPPT solar charge controllers (other specifications could be designed as customer special request). Fit for power of solar panels: 20200Wp12V, 40400Wp24V, 80-800Wp (48V).

6. Connection:

1.      Connected the +, - poles of the battery to the controller firmly and correctly. At this time the LOAD green LED is bright. If the LOAD green LED is not bright, it is indicate there is battery reverse polarity connection. Only LOAD green LED is bright, we could continue next step operation.

2.      Connected the +, - poles of the solar panel to the controller firmly and correctly.

3.      Connected the +, - poles of the LOAD to the controller firmly and correctly.

7. Simply Measure Methord:

For 12V system, measure the input voltage from solar panel with multimeter, it is normal if the voltage of solar panel more than battery voltage 0.5-6V. Generally, the higher input voltage, the better charge efficiency. For 24v and 48V system, the input voltage will be much more higher than battery voltage

(Note: It is normal phenomenon the controller can not find Maximum Power Point within 10 minutes from system start.)

8. Indicator:

1.      Load indicator, green, bright indicate there is output, Load could work, off indicate there is not output, Load can not work.

2.      Low Voltage Indicator, red, bright indicate the voltage of the battery is low. Load could not normal working. This is normal phenomenon. When the battery voltage recover to 12.6V or (25.2v), the Load will be automatically working, at this time the indicator is off.

3.      Charge Indicator, green, bright indicate the battery need to charge, flickering means float charging, off means charge has stop.

9. RESET Button:

The rated output current of this MPPT solar charge controller is 10A, if there is short circuit or overload happened, the MPPT controller will close output. ( Load indicator off, Low voltage indicator off.)

If you need the MPPT controller recover work, please check the reasons and clear out the fault firstly. Then put a small stick such as toothpick, ball-pen tip inside the RESET hole, and press RESET button will be OK.

10. Attention:

1.      Please check the rated voltage of the solar panel, battery, load are all the same with 12V or 24V

2.      Please pay attention to connection, do not connect the + - poles of battery and solar panels wrong.( Wrong connection will be burn your MPPT controller)

3.      Battery must be connected earlier than solar panels and load. When take off the system, Solar Panels must be take down first, then cut off battery.

4.      The rated current of solar panel and load must be less than MPPT controllers rated current.
