M18 Cable series Retro reflective Photoelectric sensor
- 50000 Piece / Pieces per Month
- Beijing
- T/T
You May Like
-
M18 Plug series Retro reflective Photoelectric sensor
-
M18 Plug series Through beam Photoelectric sensor
-
M18 Cable series Through beam Photoelectric sensor
-
M18 Cable series Background suppression photoelectric sensor
-
M18 Plug series Background suppression photoelectric sensor
-
Q18 Cable series DC 4-wire Diffuse photoelectric sensor
Product Details
| Place of Origin | Beijing, China | Brand Name | Bedook | |
| Model Number | FM18-R3N-C31P2..... | Usage | Position Sensor | |
| Theory | Optical Sensor | Output | Switching Transducer |
Product Description

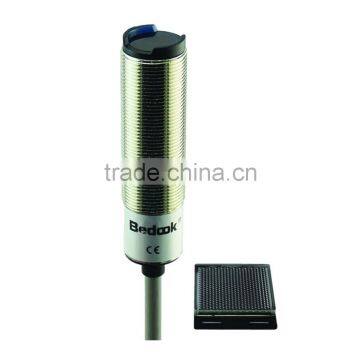

Bedook M18 Cable series Retro reflective photoelectric sensor
Warmly celebrate :Bedook MVDC sensor , the only Chinese sensor successfully passed the overall perfermance test provided by German authoritative enterprise.
Features:
Model No.:
| Housing | Metal | Plastic |
| DC 4-wire NPN Light/Dark-on | FM18-R3N-C31P2 | FM18-R3N-P31P2 |
| DC 4-wire PNP Light/Dark-on | FM18-R3P-C31P2 | FM18-R3P-P31P2 |
| AC 3-wire Light-on | FM18-R3A-C14P2 | FM18-R3A-P14P2 |
| AC 3-wire Dark-on | FM18-R3A-C24P2 | FM18-R3A-P24P2 |
Total: 8 Models
Welcome phone / mail / skype: Haven.yang to inquire, We are pleased to serve you in 24 hours, your company based on actual demand conditions, tailored to your personalized & right sensor.
Technical data:
| Electrical data | Operating voltage | 10-30V DC | 24-240V AC |
| Switching frequency | 500Hz |25 Hz | |
| Response time | <2ms | <5ms | |
| Load current | 100mA | 200mA | |
| Power delay | <300ms | |
| Environment | Light immunity | <5000Lux. |
| Ambient Temp./ Humidity | -25...55Celsius/ 35...85% | |
| Mechanical data | Housing Material | Brass, nickel-plated/ PBT |
| Adjustment | Single-turn potentiometer | |
| Connectors | PVC cable/ 2m;4*0.25mm² | 3*0.34 mm² | |
| Displays/operating | Indicator | Yellow LED |
| Accessories | Accessories (to be ordered separately) | Reflector: FR-Q51 and more accessories can be found in chapter 5 |
Packing:
Standard export cartons with our LOGO:
11*8.5*5.5 cm/ 30*23*8cm/ 30*28*35cm/ 60*30*35cm
Shipping:
1. Delivery time: 3-4 weeks after this contract is confirmed and finalized.
2. DHL Economy Express is our recommendation for saving client's cost.
3. If there is your preferred shipping method, please just contact us or tell us your express info. In addition an agreement of CNY 200 is required according to other international carriers.
4. We provide 70% discount for shipping cost. Some Countries or particular remote areas,the shipping cost need to be discussed. Some Countries like Russian Federation, DHL, UPS and FEDEX is not available, EMS is the only shipping method.
Payment:
1. Full payment must be made within 10 days of placing your order in the first three orders.
2. The buyer is responsible for any tax and/or duty charged by their country.
3. Since you made the payment successfully, you can send us the Reference NO or bank paper.
Insurance:
Buyers are responsible for any insurance they feel is required.
Service:
Pre-sale, sale and after-sale tracking service is comprehensive, The first-class technical R&D team and Double quality Testing one by one, providing technical support, complete and spotless quality guarantee
How to order? :)
| Step | 1-> | 2-> | 3-> | 4-> | 5. order sending & get the tracking | 6. After-sale tracking |
| Customers: | Send a inquiry | Confirm the specification | Confirm the quotation & send PO | Arrange payment / deposit | ||
| Bedook : | Counter offer | Recommend suitable sensors & Quotation | Send the order confirmation / PI | Arrange to producing & update cargo news in time |
Warranty period:12 months after shipment.
1. If the product you purchase from our company itself has the quality question, please notify us within 3 days of delivery and provide Bedook type no.,photo, assembly Ref.& invoice. We will exchanges the goods processing with unconditional to customer.
2. During the warranty time, if the products have any quality problems, we'll afford the repairing/ exchanging costs.
3. Any items must be returned in their original condition to qualify for a refund or replacement.
4. The buyer is responsible for all the return shipping cost incurred.
We are responsible for all the goods from us. If you have any questions about the goods, you can contact us freely in any time.
All Bedook products are designed & built strictly according to the international norms and conformity with ROHS direction, have achieved CE certification. And in the process is technically the leading alternative to direct products of the same type from the European, American, Japanese and other world-famous brands. Tousands of quality sensors for you to choose the balance, also can make the products according to your requirement. We have established long-term stable cooperation with thousands of world famous enterprises , eg: Shanghai GM, Jinan Iron and Steel Group Co. , Wuhan Iron and Steel Corporation, Michelin Universe, Foxconn & etc., maintained a monthly average of about 30,000 pcs on sales, is becoming one leading manufacturer of the most famous & specializing brands on sensors' productions in China nowaday.
More tech details will be supplied by our salesman as soon as enquiry be sent to our company e-mail, or search keyword " bedooksensor "
