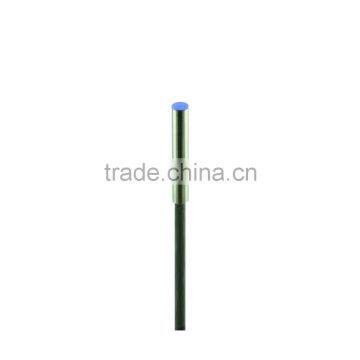

BB-H4 Cable series Ultra-mini inductive proximity sensor
USD $10.36 - $16.4
/ Piece
3 Pieces(Min.Order)
- Beijing
- T/T
You May Like
-
BB-H4 Z8 series Ultra-mini inductive proximity sensor
-
BB-H4 Plug series Ultra-mini inductive proximity sensor
-
BB-M5 Cable series Ultra-mini inductive proximity sensor
-
Q5x5 Cable series Flush mini inductive proximity sensor
-
Q5x5 pigtail series Flush ultra mini inductive proximity sensor
-
D6.5 cable series Flush standard inductive proximity sensor
Product Details
| Place of Origin | Beijing, China | Brand Name | Bedook | |
| Model Number | BB-H41.2P-V11P2 | Usage | Position Sensor | |
| Theory | Inductance Sensor | Output | Switching Transducer |
Product Description
Product Description
Features:
Ø4 mm, Stainless steel housing;
0.8/1.2mm, flush mountable;
DC 3-wire, switching output;
Cable, connector & pigtail versions;
Model No.:
| Sn=0.8mm | Sn=1.2mm | |
| DC 3-wire 10-30V NPN N.O. | BB-H40.8N-V11P2 | BB-H41.2N-V11P2 |
| DC 3-wire 10-30V NPN N.C. | BB-H40.8N-V21P2 | BB-H41.2N-V21P2 |
| DC 3-wire 10-30V PNP N.O. | BB-H40.8P-V11P2 | BB-H41.2P-V11P2 |
| DC 3-wire 10-30V PNP N.C. | BB-H40.8P-V21P2 | BB-H41.2P-V21P2 |
Technical Data:
| Electrical data | Operating voltage | 10-30V DC |
| Switching Frenquency | 2000Hz | |
| Load current | 100mA | |
| No-load current | < 10mA (24 V) | |
| Voltage drop | ≤1.5V | |
| Hysteresis | <15%(Sr) | |
| Repeatability | <1.0%(Sr) | |
| Environment | Amibient temperature | -25...70℃ |
| Ingress protection | IP67 | |
| Mechanical data | Housing material | Stainless steel |
| Face material | POM | |
| Electrical connection | Connectors | PVC cable/2m; 3*0.14mm² |
| Accessories | Accessories | None |
| (to be ordered separately) |
Packaging & Shipping
Packaging:
Standard export cartons: 11*8.5*5.5 cm/ 30*23*8cm/ 30*28*35cm/ 60*30*35cm
Shippping:
DHL International Economy Or according to the customer's requirements
Our Services
Service: pre-sale, sale and after-sale tracking service is comprehensive, The first-class technical R&D team and Double quality Testing one by one, providing technical support, complete and spotless quality guarantee.
