[ DATAN ] GS series cnc gantry milling machine
- shanghai/ningbo
- T/T L/C D/P D/A Credit Card PayPal
You May Like
Product Details
| Condition | New | Type | Vertical | |
| Place of Origin | Zhejiang, China | Brand Name | DATAN | |
| Model Number | GS | Voltage | 380V | |
| Power(W) | 18.5kw | Dimension(L*W*H) | 4500x3200x4000 mm | |
| Weight | 14~30 T | Certification | ISO CE | |
| Warranty | 1 year | After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
![[ DATAN ] GS series cnc gantry milling machine](https://res.goldsupplier.com/img/env2/common/load/circle-loading.svg)

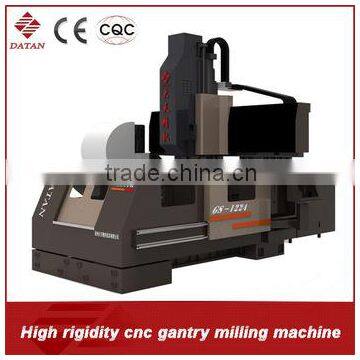

GS cnc machining center is large gantry and high rigidity of DATAN
1. Structure
A gantry frame structure is adopted with cast iron bodies. The gantry frame consists of bed, movable table, left & right columns, top beam, cross rail, horizontal saddle and milling head. There are three feeding axes, ie. X axis for travel of working table, Y axis for horizontal travel of saddle and Z axis for vertical travel of ram. Simultaneous control of each two or three axes can be achieved.
2. Standard accessories
Hand-held operating unit, indicating lamp, automatic lubrication system, hydraulic system,water gun,air conditioner for electrics, automatic chip conveyor & chip collection trolley, cnc controller etc.
3. Wide Range of Applications:
- Basing on its super rigid & stable structure, big machining capacities, efficient cutting yield,heavy table load capacity, it has a wide application in,
- Engineering & general machining
- Motor,pump,valve & bearing
- Turbine, wind mill, power generator,etc
| Model No. | GS1215 | GS1220 | GS1520 | GS1525 | GS1822 | GS1830 | |
| X axis travel | mm | 1500 | 2000 | 1800 | 2400 | 2200 | 3000 |
| Y axis travel | mm | 1200 | 1500 | 1800 | |||
| Z axis travel | mm | 800 | 1000 | ||||
| Worktable size | mm | 1500x1000 | 2000x1000 | 2000x1300 | 2500x1300 | 2200x1500 | 3000x1500 |
| T slot size | mm | 18x9x90 | 22x10x100 | 22x13x100 | |||
| Max load on worktable | kg | 3500 | 4000 | 4500 | 5000 | 6000 | |
| Spindle taper | 7/24 Taper No.50 | ||||||
| Spindle speed | r/min | ZF double gearbox(1:1,1:4)40-6000 | |||||
| Spindle power | Kw | 15/18.5 | |||||
| X/Y rapid travel | mm | 20 | 15 | 12 | |||
| Z axis rapid travel | mm | 15 | |||||
| Cutting feed rate | mm/min | 10-10000 | |||||
| Toolmagazine number | Pcs | Arm type 24 | |||||
| Machine size | m | 4.5×3.2 ×4.0 | 5.5×3.2 ×4.0 | 5.0×3.8 ×4.3 | 6.0 ×3.8 ×4.3 | 5.8×4.0 ×4.6 | 7.5×4.0 ×4.6 |
| Machine weight | T | 14 | 17 | 21 | 25 | 27 | 31 |
| Control system | FANUC / SIEMENS / SYNTEC / GSK | ||||||
| Main parts supplier | ntroller: Fanuc oi MD from Japan | |||||
| 2.spindle motor: Fanuc from Japan | ||||||
| 3. 3 axis servo motor: Fanuc ac servo motor from Japan | ||||||
| 4. spindle bearing: NSK(P4 grade) from Japan | ||||||
| 5. x/y/z axis bearing: NSK(P4 grade) from Japan | ||||||
| 6.x/y/z ball screw: HIWIN(C3 grade) from China Taiwan | ||||||
| 7.spindle unit: KENTURN from China Taiwan | ||||||
| 8. A.T.C system: from China Taiwan | ||||||
| 9.pneumatic cylinder system: from China Taiwan | ||||||
| 10.lubricator: from Japan | ||||||
| 11.heat exchanger: from China Taiwan | ||||||
| 12.electrical components: from China Taiwan | ||||||
GS1215 cnc gantry machining center features:
1) Strong massive machine is absolutely an essential part for gantry type machining center .Made of qualified Meehanite cast iron GC-276 and dealt with tempering treatment ,DATAN machines have high rigidity and admirable stability.
2). Structure size with finite element analysis(FEA) brings static rigidity and shock resistance of machine to a full play ,preventing the appearance of cutting resonance ,thus enhancing processing accuracy and prolonging tool service life.
1. Confirm the purchase
- FOB Shanghai / ningbo or CIF, LCL or FCL shipping.
- Payment terms: T/T or L/C or other ways contact us.
- Package: Plywood case.
- Delivery time: Within 20 working days after the down payment. (Actual delivery time depends on actual order.
2. Check the acceptance
Receive machine,please check:
- Examine the content of the packing list,the product quantity to both consistent,and accessories;
- Machine tool details if they 're normal, If have the trace of replacement and maintenance, If have other effects use of the problem.
If happens above declare,please contact us immediately.
3. Customer service
- Warranty period: We can send you the machines' components for free in the first one year.
- After-sell service: We can supply site commissioning and training abroad for the buyer, but the buyer needs to pay the relevant expense.
- The buyer will pay for:Air tickets, Food, board & lodging, and local transportation in buyer’s country.
Contact Us
- Hangzhou Datian CNC Machine Tool Co., Ltd.
- Contact nameSlash chen Chat Now
- Phone86-571-82402741
- AddressEast multiple track, 03 provincial roads, Xiaoshan District, Hangzhou, Zhejiang
