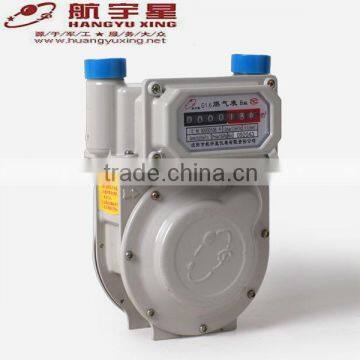

Aluminum Diaphragm Gas Meter G1.6

FOB Price

USD $15 - $20 / Set

100 Sets(Min.Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Liaoning, China		Brand Name	Hangyuxing
Model Number	G1.6

Technical Features:

1. Die-cast aluminum case, ease of installation and maintenance.

2. Gear-drive core to ensure smooth driving and good repeated measurement performance.

3. Redundancy sealing at driving output section to ensure gas tightness.

4. Stainless shafts to maintain excellent corrosive resistance.

5. Engineering plastics components to meet strength requirements.

Technical Parameters:

Technical Parameters		Unit	Model
Technical Parameters		Unit	G1.6	G2.5	G4.0
Accuracy Level		--	Class B	Class B	Class B
Cyclic Volume(Vc)		dm3	1.2	1.2	1.2
Nominal Flow(Qn)		m3/h	1.6	2.5	4
Max.Flow(Q max)		m3/h	2.5	4	6
Min.Flow(Q min)		m3/h	0.016	0.025	0.04
Total Pressure Loss		Pa	≤200Pa	≤200Pa	≤200Pa
Sealing Pressure		Kpa	30	30	30
Max.Working Pressure		Kpa	15	15	15
Metering Error	Qmin<Q<0.1Qmax	%	±3.0	±3.0	±3.0
Metering Error	0.1Qmax≤Q≤Qmax	%	± 1.5	± 1.5	± 1.5
Min.Reading		m3	0.001	0.001	0.001
Max.Reading		m3	9999.999	9999.999	9999.999
Working Temperature		°C	-20 - +50	-20 - +50	- 20 - +50
Working Life		Year	12	12	12
Size(L X W X H)		mm	168x210x124	170x220x130	170x220x140
Thread Size		mm	M30x2	M30x2	M30x2
Inlet-Outlet Space		mm	130	130	130
Weight		Kg	1.5	2	2.2
Application		Synthetic Gas,Methane,Natural Gas,LPG

Production Lines:
