Home > Products > Scanner Engine > NT-E201B 650nm Laser Module

NT-E201B 650nm Laser Module

FOB Price

Negotiable / Piece

10 Pieces(Min. Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Guangdong, China		Brand Name	Netum
Model Number	NT-E201B

650nm Laser Module
1. ODM / OEM engine
2. Well fit into any device
3. Read all 1D code
4. CE Compliant, FCC-B

NT-E201B 650nm Laser Module

Advantage:

1. Scan depth of field up to 800mm.

2. Factory direct sale, lowest price

3. Full independent intellectual property rights.

4. Steady performance and works well with other electrical parts.

5. Quality assurance; all products manufactured in Netum have been individually and strictly tested.

6. Strong EMI ability

7. 650nm Laser Module

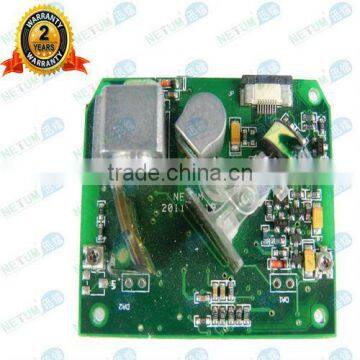

Picture Shows:

Specification of NT-E201B 650nm Laser Module :

NT-E201B 650nm Laser Module
Physical	Dimension	L 4 cm x W 2.5 cm x H 2 cm
Physical	Weight	75g
Technical Parameters	Light source	Visible laser diode (650nm)
	Symbologies	All 1D codes
	Reading preciseness	0.076mm (3mil)
	Interface	8-Pin ZIF Adapter, industry standard output
	Reading speed	200 times/second
	Reading distance	10mm-800mm
	Scan Angle of dip	∠ 45º
	Reading angle of elevation	∠ 60 º
	Laser Energy	0. 7mw±10%; λ=650nm
	Print Contrast	≥30 º
	Power source	Input Voltage:5V DC
		Input current: 75 mA; 100mA max
		Standby current:<10 mA max
		Current:100 mA max
	Lifetime	60000 hours
Working environment	Humidity	5% ~ 95% (Without condensation)
	Operating temperature	- 20°C to 45°C (-4°F to 113°F)
	Storage Temperature	- 20°C to 45°C (-4°F to 113°F)
	Light intensity	Daylight, 4000LUX
