Home > Products > More > NT-8099 High quality 2D barcode scanner QR code scanner supplier

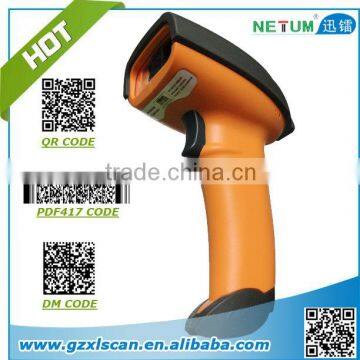

NT-8099 High quality 2D barcode scanner QR code scanner supplier

FOB Price

US$ 1 - 150 / Piece

10 Pieces(Min. Order)

Port Guangzhou
Payment TermsT/T Credit Card PayPal

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Products Status	Stock	Type	Barcode Scanner
Scan Element Type	CMOS	Colour Depth	32 Bit
Interface Type	USB, COM, PS/2, Other, USB, COM, PS/2, RS232	Max Paper Size	A4
Optical Resolution	0.1mm	Scan Speed	200times/sec
Brand Name	NETUM	Model Number	NT-8099 QR scanner
Place of Origin	Guangdong, China

Product Description

Specifications

2D barcode scanner
1. CMOS Tech Camera scan
2. Support Graphics Format
3. 1D&2D all are competible
4. High resolution

Company Information

NT-8099 High quality 2D barcode scanner QR code scanner supplier

Features:

1. New design concept,make operation more comfortable.

2. Applying CMOS image technology, easy to scan.

3. Multiple dacode ability, fast to scan 1D/2D barcode and PDF417.

4. Best shape design, anti-knock and quakeproof.

5. Mulitple interface, support USB,RS232 port.

Related pictures:

Parameters:

Physical Characteristics

1.1

Dimensions:

51mm x 30.61mm(width) x 21mm(height)

1.2

Weight:

1.3

Voltage and Current:

5 +/-10%VDC @ 350 mA

1.4

Item name

QR barcode scanner

Performance Characteristics

2.1

Light Source:

Aiming: 528 nm LED; illumination: 630 nm LED

2.2

Field of View:

34° V x 46° H(Vertical x Horizontal)

2.3

Roll / Pitch / Yaw:

360°, ±65°, ±60°

2.4

Scan Performance:

Symbology Decode Capability

3.1

1-D:

UPC/EAN and with supplementals, Code 39, Code 39 Full ASCII, Tri-optic Code 39, RSS variants, UCC/EAN 128, Code 128, Code 128 Full ASCII, Code 93, Codabar (NW1), Interleaved 2 of 5, Discrete 2 of 5, MSI, Codell, IATA, Bookland EAN, Code 32

3.2

PDF417 (and Variants):

PDF417, microPDF417 and composite codes

3.3

Postal:

U.S. Postnet and Planet, U.K., Japan, Australian, and Dutch

3.4

2-D:

MaxiCode, DataMatrix (ECC 200), and QR barcode scanner

3.5

Print Contrast:

25% minimum reflectance

3.6

Motion Tolerances:

Horizontal velocity: 5 in. (12.7 cm) per second

3.7

Interfaces Supported:

IE1100: RS-232C (Standard, Nixdorf, ICL, and Fujitsu); USB (Standard, IBM SurePOS, Macintosh) and Synapse connectivity allows for connectivity to all of the above plus many non-standard interfaces.

Imaging Characteristics

4.1

Image (Pixels):

0.35 Megapixel 752 pixels H x 480 pixels V

4.2

Graphics Format Support:

Images can be exported as Bitmap, Jpeg, and Tiff

4.3

Image Transfer Speed:

USB 1.1: Up to 12 Megabits/secondRS232: Up to 115 kb baud rate

4.4

Image Transfer Time:

Typical USB application is ~ 0.2 seconds with a compressed Jpeg of 100 kb

User Environment

5.1

Operating Temperature:

32° to 122° F / 0° to 50° C

5.2

Storage Temperature:

-40° to 158° F / -40° to 70° C

5.3

Humidity:

5% to 95%, non-condensing

5.4

Drop/Shock Specifications:

Withstands 2000g to concrete

5.5

Ambient Light Immunity:

Immune to normal artificial indoor and natural outdoor (direct sunlight) lighting.

Packaging & Shipping

All goods will be packing by Neutral Seaworthdy Carton packing:

With Cradle:

Inner Box: 1 pcs/box; 210 mm x 130mm x 105mm; 640g

Carton: 50 pcs/ctn; 880mm x 450mm x 420mm; N.W.: 32kg; G.W.: 33kg

Without cradle

Inner Box: 1 pcs/box; 185mm x 110mm x 90mm; 365g

Carton: 50 pcs/ctn; 600mm x 450mm x 420mm; N.W.: 18kg; G.W.: 19kg
70 pcs/ctn; 880mm x 450mm x 420mm; N.W.: 25kg; G.W.: 26kg
