plywood press A hot press Lamination press

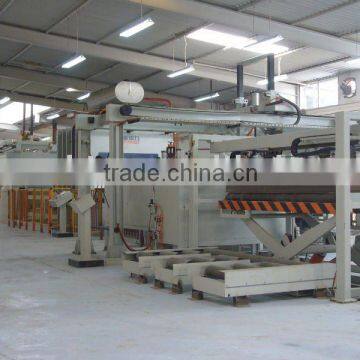

XXL Hydraulic Press is mainly appiled in the lamination of furniture decorative board and laminate flooring.We provide customers with various lamination lines according to their requirement. At present three are basic types:

XXl-E economical type overlaying production line

XXL-S standard type overlaying production line

XXL-A automatic type overlaying production line

1. Finished product size               1300×2500mm

2. Pressing cycle                 According to technological requirement

3. Total power                               ~46.5kW

4. Thermal consumption                25×10⁴ kcal/h

5. Compressed air consumption    ~0.6m³/min  0.6Mpa

6. Total pressure                          11000kN

7. Specific pressure                       34kg/cm²

8. Hot platen size                       1400×2600mm

9. Daylight opening                      300mm

10.Main oil cylinder(diameter×stroke)  300×300mm   6 units

11. Lifting cylinder(diameter×stroke)   90×300mm    2units

12. Oil pressure of hydraulic system     ≤25Mpa

13. Temperature of hot platen              ≤200°C

14. Heating medium                             Thermal oil or steam

15. Feeding speed                          20~80m/min (adjustable)

16. Vacuum conveyor speed           60~80m/min (adjustable)

17. Control mode                          Man-machine interface + PLC

18. Blowing rate of dust exhauster   ~3000m³/h(User prepares Dust exhauster)

19. Total net weight                           ~ 65000kg

20. Overall dimension(L×W×H)         ~32000×4800×4100mm
