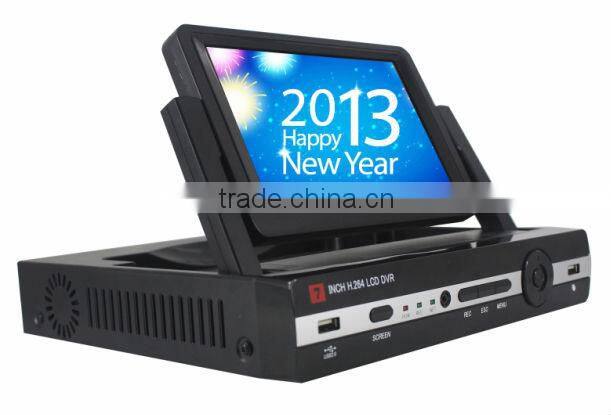

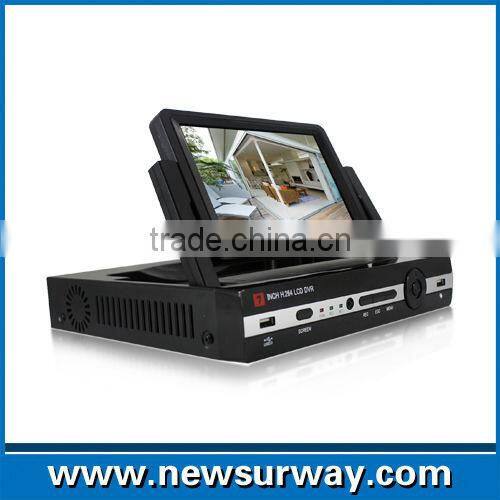

8ch 7.5 Inch TFT Monitor LCD Combo DVR

FOB Price

US$ 80 - 84 / Piece

1 Piece(Min. Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Guangdong, China		Brand Name	VIVIEYE
Model Number	SEDVR-7308S

1. 270 degrees revolving and 180 degrees turn over panel
2.7.5 inch digital LCD
3. HD VGA output
4.4CH 2D1+6CIFrecording

Main Feature:

l The LCD DVR with a flexible Bracket, It can support 120 Degree rotate and LCD Screen can support 330 Degree rotate.

l Integrate 7inch digital LCD, the screen resolution is 800X480.

l H.264 compression format.

l Support mobile phone surveillance

l Support languages : English ,German, French, Spanish, Italian, Russian, Portuguese…

l Video and audio real time recording and playback at the same time.

l Support HD VGA output, the resolution is high to 1280X1024.

l Searching modes: time / data searching, event searching, recording group searching.

l Backup modes: network backup, USB 2.0 backup.

l Support RS-485 PTZ control(speed dome camera), and preset positions operation.

l Support USB mouse and infrared remote controller operation.

l Multiplex operation: live ,record , playback, network can be operated at the same time.

Technical Specification:

Model	TFTDVR-7308S
Operation System	Embedded Linux Operation System
Operation Interface	GUI, support mouse, pane, remote control operation
Video Standard	PAL, NTSC
System Resources	Multi-tasking operation, simultaneous multi-channel recording, simultaneous video playback and simultaneous network operation.
Video Compression	H.264
Audio Compression	G.711A
Recording Mode	Manual, Timing, Alarm, Motion detection
Search Mode	By time, event, channel, log
Backup Mode	Network download, USB backup
Video Input	8ch BNC
Video Output	LCD:7 inch (Resolution:800X480)/ CVBS/ VGA (Resolution: 1280X1024)
Audio Input	4ch RCA
Audio Output	1ch RCA
Voice Talkback	1ch RCA
Live Video Resolution	PAL:720x576(D1 );NTSC:720x480(D1)
Playback Resolution	Relate on record resolution
Image Control	selectable
Remove Detection	Each channel can set independent detection zones and multilevel sensitivity
Video Display	1/4/8 multiple display
Record resolution	2CH D1+6CH CIF
Recording Frame Rate	PAL:25f/s(Adjustable)NTSC:30f/s(Adjustable)
Recording Storage	Local HDD, Network
Local Playback	Select any 4 channel playback at same time
Alarm Input	4ch
Alarm Output	1ch output
PTZ Control	RS485
HD Interface	1 SATA Ports
Network Interface	RJ4510M/100M Adaptable Ethernet Connection
Mobile Phone View	Support iPhone, blackberry, Windows Mobile, Android, Symbian
USB Interface	2 USB2.0 High-speed Port
Power Supply	12V 4A
