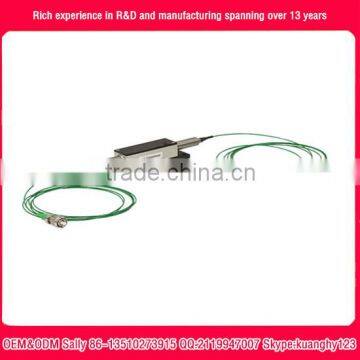

1W 2W 5W 10W 20W 980nm High Power Isolator HPIS fiber optical isolator OEM factory

1W 2W 5W 10W 20W 980nm High Power Isolator HPIS fiber optical isolator OEM factory fiber optical isolator OEM factory

Fiber optical isolator can transmit light in a certain direction while blocking light in the opposite direction. Fiber isolators protect light sources from back reflections and signals that can cause instabilities and damage. Powerlink offer a range of in-line type and beam expanded isolator, narrowband and broadband free-space optical isolators (Faraday isolators) including 1310/1550nm/1064nm high power polarization maintaining isolator and high power Polarization insensitive circulator. We also can supply a custom isolator service that can combine the best features of our entire isolator products
Features

1. Low Insertion Loss
2. High Return Loss
3. High Isolation
4. High stability
5. High Reliability

Applications

·Optical Fiber Amplifiers
·Testing Instrumentations
·Fiber Sensor
·Fiber Lasers
·Lab Research

 Ordering Information



Parameters			Unit	Value
Type			-	HPIS	HPPMIS
Center Wavelength			nm	1064
Operating Wavelength Range			nm	±20
Typ. Peak Isolation at 23°C			dB	32~40
Isolation at 23°C			dB	25
Typ. Insertion Loss at 23°C			dB	0.6
Max. Insertion Loss at 23°C			dB	1
Max.PDL at 23°C			dB	0.15	/
Extinction Ratio at 23°C	Fast axis blocked		dB	/	23
	Both of axis working		dB	/	20
Min. Return Loss(Input/Output)			dB	50
Max. Optical Power		CW	W	1, 2, 3, 5, 10, 20 or specify
		Pulse Peak	kW	10
Max. Tensile Load			N	5
Fiber Type			-	HI 1060 fiber or specify	PM980 fiber or specify
