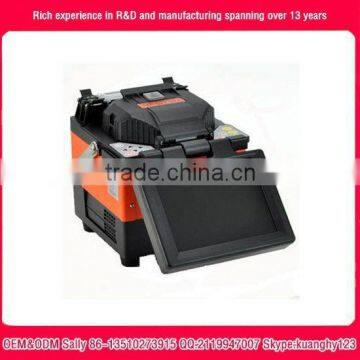

high quality sumitomo type-39 fusion splicer price

Specifications

RoHS

Compliant (engineered to be more environmentally friendly)

Fiber Requirement

Silica Glass

Coating Diameter

100 and 1000μm

Cladding Diameter

80 to 150μm

Cleave Length

8 to 16 mm (under 250μm coated fiber)
16mm (over 250μm coated fiber)

Typical Splice Loss, Identical Fibers

SMF: 0.02dB MMF: 0.01dB NZ-DSF: 0.04dB

Number of Fiber Profiles

48 Customizable

Number of Pre-Installed Heater Profiles

20 Customizable

Internal Splice Data Storage

10,000

Monitor Position

Multiple Position Monitor

Interface

USB Port for PC Interface
RCA Jack for External Monitor
DC input for Car Battery Operation

Dual Independent Heaters

Each Heater: 25 seconds 40mm sleeve 30 seconds 60mm sleeve

Typical Splice Time

9 Seconds Splice Cycle Time

Language Selections

16

Arc Test

Automatically Compensates for Environmental Conditions

Menu Selection

User Friendly Menus

Return Loss

<-70dB

Proof Test

Internal 200g (Std.), 400g (Optional)

Attenuation Splicing

Up to 15dB in increments of 0.01db

Loss Estimation Process

High-resolution Direct Core Monitoring (HDCM)

Image Display

Dual or Single Fiber Imaging X/Y

Size

150W x 150D x 150H mm
(5.9W x 5.9D x 5.9H in)

Weight

2.8 kg (6.2 lbs)

Power Requirement

Input: 100 to 240V AC;50/60Hz, 12V DC

Display

5.6 Inch TFT Low Glare High Resolution Color Monitor

Battery Operation

Standard: 100 Splices & Heater Cycles
Extended: 200 Splices & Heater Cycles

Wind Protection

30 mph (15 m/s)

Type 39-KIT-2 Standard Package

Type-39 Core Alignment Fusion Splicer with Built-in Dual Heat Shrink Ovens, AC Interface/Battery Charger, Long Life Battery, Hard Transit Case, Spare Electrodes, Cleaning Tools, Shrink Sleeve Cooling Tray, Fiber Protection Sleeves, Manual, Jacket Remover, Precision Cleaver
