UPVC Chemical Class DIN Pipe

FOB Price

US$ 0.1 - 10 / Meter

1000 Meters(Min. Order)

Port Shanghai

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Jiangsu, China	Brand Name	DFP
Model Number	Chemical class	Material	PVC
Specification	20MM-400MM	Length	1~6m
Thickness	According to the GB/T4219-1996 Standard	Standard	DIN(GB/T 4219-1996)

Product Description

SHIE YU Professional in UPVC, CPVC, HDPE, PPH, PVDF PIPE&FITTINGS

SHIE YU Milestones

-1973, Shieyu Group is established in Taichung

-1994, first company in Taiwan gained NSF listing

-1997, obtained ISO9001

-1999, established Kaohsiung facility to produce fittings and pipes

-2002, established manufacturing facility in China

-2008, China facility obtained NSF listing for CPVC CTS fittings.

-2012, Group annual turnover rate is 100 million USD.

-2013.05, Celebrated 40thanniverysary

-2013.08, China facility obtained NSF listing for UPVC SCH80 pipes and fittings

-2013.12, Set up second facility in Kunshan specializing in PPH/PVDF/ECTFE/HDPE products under the brand ASIAN VALVE.

Company information

1.We have own factoty for over 40 years with good quality and Service.

2.Good Quality: Implement NSF and ISO quality system on all products.

3.Good reputation in Southeast Asian,Middle east, South America market.

4.We have complete product ranges.

Standards: DIN, Sch80, Sch40, JIS, BS, or other assigned standards

5.Flexible lead time

Product Name: UPVC Chemical Class DIN Pipe

Description:

1.Material:	PVC
2.Size Available:	20mm~400mm
3.Standard:	DIN
4.Color:	Gray
5.Brand:	DFP
6.Connection:	SCOKET
7.MOQ:	1000m
8.Prodction Capatity	20000m per Month
9.Product Tests:	100% tested
10.Certification Available:	ISO,NSF,CNS

Pipe Dimension:

Chemical Class

Unit:mm

OD	Tolerance	En	PN KG/CM² at 23°c
20	+0.3	2.3	16
25	+0.3	2.8	16
32	+0.3	3.6	16
40	+0.3	3.0	10
50	+0.3	3.7	10
63	+0.3	4.7	10
75	+0.3	5.5	10
90	+0.3	6.6	10
110	+0.4	8.1	10
140	+0.5	10.3	10
160	+0.5	11.8	10
225	+0.7	16.6	10
280	+0.9	20.6	10
315	+1.0	23.2	10
355	+1.1	26.1	10
400	+1.2	29.4	10

Water Class

Unit:mm

OD	Tolerance	En	PN KG/CM² at 23°c
20	+0.3	2.0	16
25	+0.3	2.0	16
32	+0.3	2.4	16
40	+0.3	2.0	10
50	+0.3	2.4	10
63	+0.3	3.0	10
75	+0.3	3.6	10
90	+0.3	4.3	10
110	+0.4	5.3	10
140	+0.5	6.7	10
160	+0.5	7.7	10
225	+0.7	10.8	10
280	+0.9	13.4	10
315	+1.0	15	10
355	+1.1	16.9	10
400	+1.2	19.1	10

UPVC Physical Property:

PROPERTIES	UNIT	INDEX	TEST METHOD
Specific Gravity	g/cm³	1.3-1.5	ISO 1183
Vicat Softening Temperture	°c	70	ISO 306
Tensile Strength	Mpa	50	ISO 527-2
Impact Strength	KJ/M²	8.0	ISO 179
Tensile Modulus	Mpa	2600	ISO 527-2

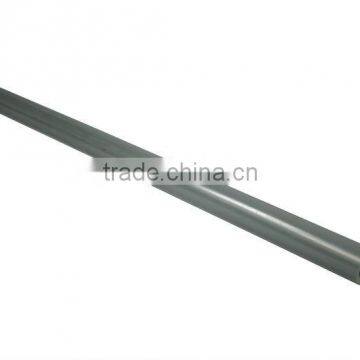

Product Picture:

ISO Certificate:

NSF Certificate:
