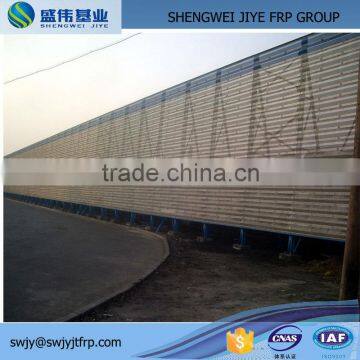

Security Wind Dust Controlling Perforated Windproof Mesh Wall

Material used in the windshield

Material used in the windshield is different according to different purposes and different environmental conditions. Can use mental material (low carbon steel, galvanized sheet, colored steel, aluminum-magnesium alloy plate, stainless steel) ,high-density polyethylene,EVA resin etc, surface treatment:electrostatic powder coating.Cold-resistant -40℃;hot-resistant 80℃. Normal life more than 20 years. Wind resistance is 30m/s, wind pressure is 750Pa(equivalent to gust 12). And in using process is basically  no need to repair, an investment, long-term benefit. The color of windshield can choose by customer's requirements or surroundings.

Integrated Dust effect is very obvious. Monolayer windshield integrated Dust effect can reach 65-80% or more, double windshield integrated Dust effect can reach about 95%. So the setting of   “The wind dust-controlling wall” can protect the environment of sensitive points, neat appearance windshield also creates a landscape in these regions.

Features

1.      Anti-UV (Anti-aging)

The surface of the product have plastic spraying, can absorb the sun's ultraviolet rays, reduce the oxidation rate of the material itself, make  product has a good anti-aging properties, improve life. And UV transparency is low, avoiding product damage.

2. Flame retardancy

 Because the metal plate has a good flame retardancy, can totally meet fire and safety requirements.

3. Impact resistance

The products have high-strengthen, it can withstand the impact of hail (gale).

At the top of the style, with a mass of one kilogram steel ball, free fall from the peak height of 1.5 meters, the products do not have crack and piercing.

4. Anti-static

Product surface through electrostatic spray treatment, after the sunlight, can adhered to the product surface oxidation of organic matter decomposition, in addition, it’s ultra-hydrophilic make the dust can be easily rinse by rain, play a self-cleaning effect, no maintenance costs.

Windshield Type

Single peak

Forming width between 250mm-500mm, peak height between 50mm-100mm, length within 6 meters can be processed. Sheet thickness between 0.5mm-1.5mm, within the above range, we can manufacture according to customer requirements.

Double peak

Forming width between 400mm-600mm, peak height between 50mm-100mm, length within 6 meters can be processed. Sheet thickness between 0.5mm-1.5mm, within the above range, we can manufacture according to customer requirements.

Triplet type

Forming width is 825mm, peak height between 50mm-100mm, length within 6 meters can be processed. Sheet thickness between 0.5mm-1.5mm.We can manufacture according to drawings.

The length of Wind Dust Network is no more than 6.15m (The longer the network, the farther away from steel, wind effects worse), the windproof effect best when the peak height is 7.5cm.

Advantage

Because coal field coal feed containing certain sulfur and volatile, it is an acidic environment, have a strong corrosive, using fiberglass wind deflector,Its biggest drawback is that it can be easily corroded by inorganic acid, therefore not applicable in the field of coal and other acidic environment, and areas with high UV will accelerate the aging process. The use of steel Windshield, only punching fracture is perishable, to prevent corrode fracture of sulfur dioxide produced by punching the windshield after being produced at the coal stockyard industrial atmospheric environment, after the electrostatic powder coating, the film is smooth, plump, water resistance, abrasion resistance, insulation resistance are all good, appearance is beautiful. Integrated Dust rate is more than 80%.
