Home > Products > Pressure sensor > 5Mpa Strain gage force sensor

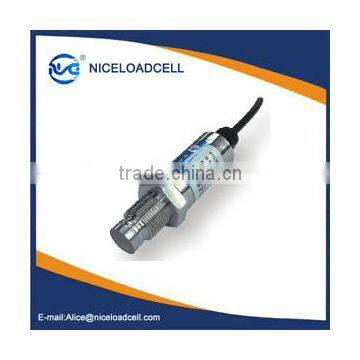

5Mpa Strain gage force sensor

FOB Price

USD $56 - $62 / Set

10 Sets(Min.Order)

Port FOB SHENZHEN
Payment TermsCredit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Guangdong, China		Brand Name	CZS
Model Number	CZS538

Product Description

Fat-screen type

ABSTRACT:

Applying to pressure measuring and controlling of industrial facility, Irrigation, Chemical industry, Medical, Electric power, air condition.
Diamond press machine, metallurgy, water supply to building and so on.

PARAMETERS:
Capacity Range	0-10-100MPa
Comprehensive Precision	0.1%FS , 0.2%FS, 0.3%FS, 0.5%FS, 1.0%FS
Output Signal	4~20mA; 0~5V; 1~5V; 0~10V
Use Temp Range	-10℃~+80℃-150℃
Electric Connectio	4-core plug or take-up nut
Excitation Voltage	9~36V, if output =4~20mA or 0~5V or1~5V; 15~36V, if outpur= 0~10V
Stability	0.1%F.S/year
Burden Resistance	Current output: ≤800Ω,Voltage output :≥50KΩ
Insulation Resistance	≥2000MΩ,100VDC
Effection of Vibration	On 20HZ-1KHZ of mechanical shake, output ≤ 0.1%F.S
Defend Grade	IP68

EXAMPLE: PT501 - 1M - 01 - C - 1 - I - CW - ZC1

PT5

ZC1

Models

Capacity(Noted by number)

Pressure Mearsure( K=KPa, B=Bar, M=MPa,H=mH2O )

Output Signal
( 01=4~20mA, 02=0~5V, 03=1~5V, 04=0~10V )

Precision (%FS)(A=0.1, B=0.2, C=0.3, D=0.5)

Pressure Typ:
(1=Gauge Pressure 2 =Combination Pressure

Thread Connection:
(I=M22×1.5 J=M20×1.5 L=M18×1.5 P=M16×1.5 M=M14×1.5 N=G1/4-19 Q=1/2-20 F=M12×1 R=1/4NPT S=1/2NPT T=1/8NPT U=7/16-20)

Temp. Of Medium(℃)
( CW=-10~80,CG=-20~125,GW=-30~150)

FS5

Electric Connection
( ZC=M22×1.5 airproof port DI=Hirsmann Connector
HK= 4-pin navigate plug FS=Waterproof&anticorrosion Cable)
