Home > Products > Spiral Steel Silo Forming Machine > Steel Seaming Silo Spiral Bending Seaming Machine Price

Steel Seaming Silo Spiral Bending Seaming Machine Price

FOB Price

USD $40,000 - $60,000 / Set

1 Set(Min.Order)

Supply Ability 30 Set / Sets per Month
Port Dalian
Payment TermsT/T L/C D/P D/A Credit Card PayPal

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Liaoning, China		Brand Name	PRO
Model Number	PRO-SM40		After-sales Service Provided	Engineers available to service machinery overseas

Product Description

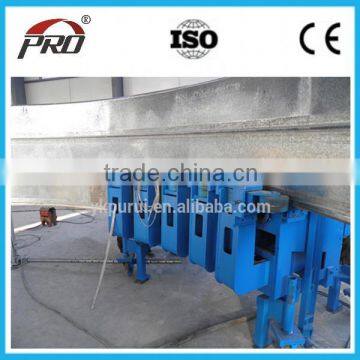

Steel Seaming Silo Spiral Bending Seaming Machine Price

Detailed Images

Working

Project

Specifications
1.Electrical equipment power: 27kw
2.Raw material width: 495mm
3.Finished width: 350---370mm
4.Material thickness:2-4mm

Product description
Application:making circular metallic container
Working process:
Through the 5 forming procedures and 5 kind of steel strip forming merge suturing machine steel strip(thickness:2-4mm;495mm)will be merged forcedly and suture spirally to make cylinder with 4-50m of different diameters.
These steel cylinders are used widely:
1. Material shape (storage): granular material, powder material, liquid material 2. Industry: grain, feed brewing, oil, medicine, food, cement, water treatment 3.Concrete variety(storage): wheat, soybean, maize, sorghum wheat flour, bulk cement fly-ash, sewage, water, chemical syrup
Features of Rx4.0m/m steel strip forming machine
1. Rx4.0m/m steel strip forming merging and suturing machine units is a new type of machine in our company. It is used to produce the Circular Metallic Container, developed from LIPP-SM40 forming machine, improved and holding the same function of LIPP-SM40 forming machine. 2.Rx4.0m/m steel strip forming merging and suturing machine units also have its own advantages, such as convenient to be repaired, avoid installing with different diameter, saving the time and cost of installing. This unit is produced by the Hi-strength Alloy steel, making the operating life longer.

Main technical parameter:
1. Constituent part:
(1)Forming machine: making the material bend and initial machine-shaping, meanwhile, it will bend the material to the silo required radius of curvature.
(2)Bending machine: it will roll cooperate with good molding materials bender seaming together
(3)Load bearing support: Given the right diameter of silo. Lifting of the steel silo enclose the top of load bearing support ollers, it can support the spiral rising silo.
(4)Decoiler: Moving steel coils that put on the decoiler, making steel coils can into forming machine successfully.
(5)Join frame: Joining the load bearing support, locking the required diameter of soil, making the load bearing support stable working.

2.Weight of machine part:
(1)Forming machine——3300 kg
(2)Bending machine——3550 kg
(3)Decoiler——230 kg
(4)Load bearing support——80kg
(5)Joint Frame——38kg

3
(1) Required thickness of raw material:
A,Galvanized sheet——1.5---3mm
B,Dark steel sheet——1.5---3mm
C,Chromated nickel steel sheet——1.5---2.5mm
D,Plastic coatings steel sheet——1.5---3mm
(2)Raw material width: 495mm
(3)Finished width: 350---370mm
(4)Diameter: 4m——25m
(5)Electrical equipment power: 9x3kw=27kw

The complete equipment parts

Main technical parameter:
(1) Required thickness of raw material:
A,Galvanized sheet——2---4mm
B,Dark steel sheet——2---4mm
C,Chromated nickel steel sheet——2---3mm
D,Plastic coatings steel sheet——2---4mm
(2)Raw material width: 495mm
(3)Finished width: 350---370mm
(4)Diameter: 4m---30m

Decoiler:

Size: 1700x1500x900 (mm)

Weight: About 300kg
Application: moving steel coils that put on the decoiler,

making steel coils can into forming machine

successfully.

Joint frame

Size: 1600x1600x1500 (mm)
Weight: About 100kg/pcs
Application: Joining the load bearing support, locking the required diameter of soil, making the load bearing support stable working.

Load bearing support

Size: 1800x400x400 (mm)
Weight: About 50kg/pcs
Application: Given the right diameter of silo, support the spiral rising silo

Bending process

Packing & Delivery

Our Company

YingKou Professional Roll Forming Machine Co., Ltd. main products are:Steel-drum production line,steel drum,PRO-240/PRO-120 Arch sheet roll forming machine,Multi-shape Building Machine,Screw-jointed Equipment,Arch Sheet Project,

MSBM Project,Screw-jointed Project,KR Series Roll Forming Machine,Glazed tile Roll Forming Machine,Double Layer
Roll Forming Machine,840 Corrugated Sheet Roll Forming Machine,Corrugated Roof Sheet Forming Machine,
Concealed Roof Sheet Forming Machine,Steel Decking Roll Forming Machine,C/Z/U/M Machine,Lifting Machine,
Unlimited Length Ridge Tile Forming Machine,Sheering Machine,Window and Door Taping machine,
Flat Sheet Bending Machine,Pipe Bender Machine,Bending Machine,Slitting Machine,Slitting Line,
SM-40 Spiral Steel Silo Forming Machine,PU Spray and Perfusion Equipment,Colored Steel Sheet Coils,etc.

Our Service

Pre-Sales Service

* Support inquiry and consult.

* Design machine you want.
* View our Factory.
* Provide the technical support.

During the Production

* We will send photo of making machine process detail every once in a while.

After-Sales Service

* Training how to use machine.
* Training how to make project.
* Engineers available to service machinery overseas.

FAQ

Q: Can you make the machine according to my design or photo type? A: Yes, we have an experienced team for working out the most suitable design and production plan for the machine according to your demand or photo type that you are going to book with us.
Q: Are you a factory or trading company? A: We are a factory located in YingKou city, LiaoNing Province, China. Our city is near Beijing. All clients from abroad and home are warmly welcome to visit our factory!
Q: How do you guarantee the quality of the products? A: Every section of our production has strict manufacture process, than professional inspectors check every section of the production, next the production will work for testing quality, which must be 100% quality assurance. Unqualified resolute don't a better factory.
Q: What is your service? A: We provide the technical support for whole life. Pre-sales service includes inquiry and design support and view our factory. After-sales service includes training how to instal the machine, training how to use the machine, and engineers available to service machinery overseas.
