Home > Products > Roll forming machine > Automatic C Z Shape Purling Cold Forming Machine

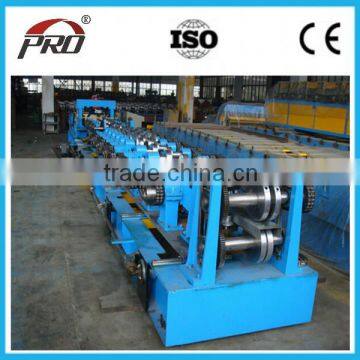

Automatic C Z Shape Purling Cold Forming Machine

FOB Price

US$ 19,500 - 21,500 / Set

1 Set(Min. Order)

Port Dalian
Payment TermsT/T L/C D/P D/A Credit Card PayPal

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Liaoning, China		Brand Name	Pro
Model Number	C80-300		After-sales Service Provided	Engineers available to service machinery overseas

Product Description

Automatic C Z Shape Purling Cold Forming Machine

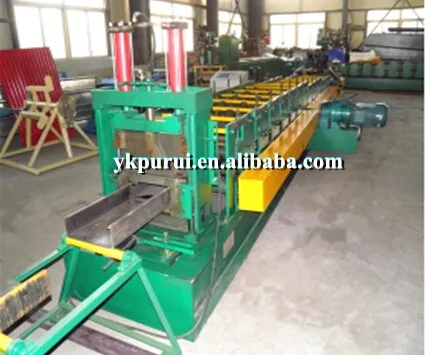

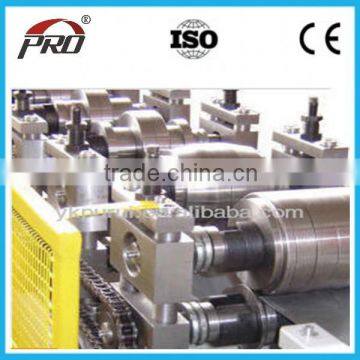

Detailed Images

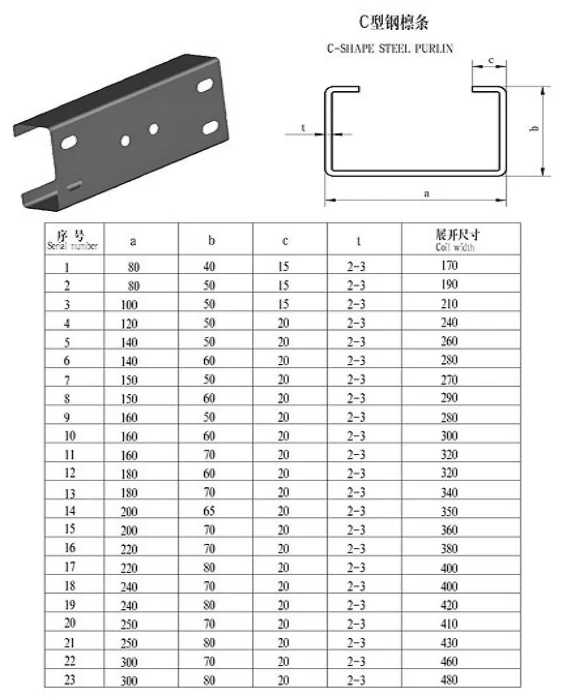

Profile Drawing

Machine component:

NO	Name	Unit	Qty
1	Decoiler	set	1
2	Entry Beach	set	1
3	Main Machine for roll forming	set	1
4	Cutting System	set	1
5	punching	set	1
6	Output Table	set	1
7	Control System(PLC)	set	1
8	Hydraulic station	set	1

Equipment configuration

Feeding device , transmission, main machine and forming roller (including guide table), cutting (after roll forming) device, hydraulic system, electric control system, run out table, etc. Main rack of the machine is processed on the planer type milling machine.

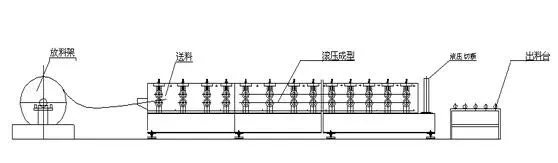

Technological process figure

Production process

5T Manually De-coiling →Roll Forming → Guiding & Feeding & Correcting → Punching Device→ Cutting after roll forming →Hydraulic system→ Electric control system →Output product.

Machine Technical data:

No	Item		Parameter	Note
	Suitable	Type	Galvanized Steel
		Width	According to profile
		Thickness	2.00—4.0mm
		Cover width	According to profile
		Wave height	According to profile	Refer to drawing
		Length	Any length
		Active shaft	45 steel tempered
		Roller	Cr12 quenched	Up to final design
		Cutting Blade	Cr12 quenched
		Type	380V/3PH/50HZ	Customized
		Main motor	18.5kw	Up to final design
		Hydraulic	5.5kw
		Forming speed	8-10m/min	Excludes cutting & punching
		Type	Hydraulic
		Max. capacity	3000kgs
		Suitable coil OD	1200mm
		Suitable coil ID	508/610mm
		Max Coil width	500mm
		Motor power	3kw
		Hydraulic Power	2.2kw
	Forming Stand		About 15 groups
	Transmission style		Chain, sprocket	Double row Entire chain
	Main machine structure		Wall panel
	Type of Cutting		length-set cutting	pre-cutter
	Control System		Mitsubishi PLC& transducer
	Product support		Automatic stacker/ Simple run out table

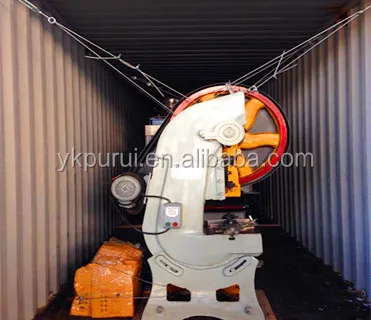

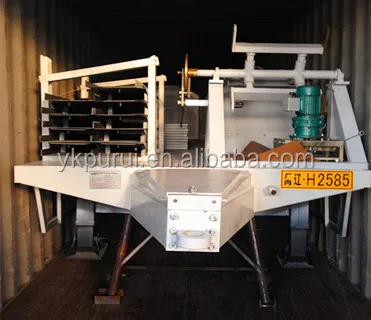

Packing & Delivery

Our Company

Factory

Workshop

Rollers

YingKou Professional Roll Forming Machine Co., Ltd. main products are:Steel-drum production line,steel drum,PRO-240/PRO-120 Arch sheet roll forming machine,

Multi-shape Building Machine,Screw-jointed Equipment,Arch Sheet Project,MSBM Project,

Screw-jointed Project,KR Series Roll Forming Machine,Glazed tile Roll Forming Machine,Double Layer

Roll Forming Machine,840 Corrugated Sheet Roll Forming Machine,Corrugated Roof Sheet Forming Machine,

Concealed Roof Sheet Forming Machine,Steel Decking Roll Forming Machine,C/Z/U/M Machine,Lifting Machine,

Unlimited Length Ridge Tile Forming Machine,Sheering Machine,Window and Door Taping machine,

Flat Sheet Bending Machine,Pipe Bender Machine,Bending Machine,Slitting Machine,Slitting Line,

SM-40 Spiral Steel Silo Forming Machine,PU Spray and Perfusion Equipment,Colored Steel Sheet Coils,etc.

Our Service

Pre-Sales Service

* Support inquiry and consult.

* Design machine you want.
* View our Factory.
* Provide the technical support.

During the Production

* We will send photo of making machine process detail every once in a while.

After-Sales Service

* Training how to use machine.
* Training how to make project.
* Engineers available to service machinery overseas.

FAQ

Q: Can you make the machine according to my design or photo type? A: Yes, we have an experienced team for working out the most suitable design and production plan for the machine according to your demand or photo type that you are going to book with us.
Q: Are you a factory or trading company? A: We are a factory located in YingKou city, LiaoNing Province, China. Our city is near Beijing. All clients from abroad and home are warmly welcome to visit our factory!
Q: How do you guarantee the quality of the products? A: Every section of our production has strict manufacture process, than professional inspectors check every section of the production, next the production will work for testing quality, which must be 100% quality assurance. Unqualified resolute don't a better factory.
Q: What is your service? A: We provide the technical support for whole life. Pre-sales service includes inquiry and design support and view our factory. After-sales service includes training how to instal the machine, training how to use the machine, and engineers available to service machinery overseas.
