Yingkou PRO screw-joint arch building making machine
US$ 8 - 100,000
/ Set
1 Set(Min. Order)
- Dalian port
- T/T
You May Like
-
PR-1000-680 screw joint arch sheet roll forming machine
-
PRO arch sheet roll forming machine or building machinery from China
-
PRS-1000-610 Screw-joint arch roof production line or roll forming machine
-
PRO Screw-joint arch steel forming machine
-
PR-1000-680 CNC screw joint arch sheet roll forming machine
-
CNC screw joint arch sheet roll forming machine
Product Details
| Condition | New | Type | Tile Forming Machine | |
| Tile Type | Colored Steel | Use | Roof | |
| Production Capacity | 10-12m/min | Place of Origin | Liaoning, China | |
| Brand Name | PRO | Model Number | PRO1000-680 | |
| Power(W) | 25 KW | Voltage | 380V or 220V | |
| Weight | 10T | Certification | CE &SGS | |
| Warranty | 13months | After-sales Service Provided | Engineers available to service machinery overseas |
Product Description

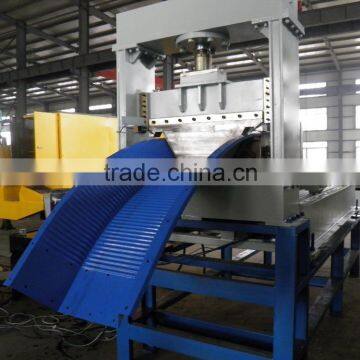

Yingkou PRO screw-joint arch building making machine
- Profile of PRO1000-680
- Main parameters
1. Dimension : 10000mm×1500mm×1500mm
2. Weight : Around 8 T
3. Shearing material : 12CrMoV
4. Shearing type : Mechanical
5. Total motor power : 25KW
6. Main motor : 7.5KW
7. Decoiler motor : 3.0KW
8. Leveling machine motor : 4.0KW
9. Shearing machine motor : 3.0KW
10. Hydraulic station power : 7.5KW
11. Roller Material : 45# high-quality steel (Standard), quenched HRC 55~65, hard
chrome plating.
12. Shaft Material : 45# high-quality steel, galvanized
- Technological process
- Loading (load & expand galvanized coil on decoiler)
- Feeding & Leveling (prepare flat galvanized sheet for punching)
- Edge-punching & Ends-punching on flat galvanized sheet
- Shearing punched sheet
- Roll forming sheared sheet
- Bending Roll formed sheet
l Step-by-step construction
