Home > Products > Toroidal transformer > Wall Lamp Isolation 240VAC 24VAC Transformer
Wall Lamp Isolation 240VAC 24VAC Transformer
- FOSHAN
- T/T L/C D/P D/A Credit Card PayPal
You May Like
Product Details
| Place of Origin | Guangdong, China | Brand Name | ECKO | |
| Model Number | Power Transformer | Usage | Audio | |
| Phase | Single | Coil Structure | Toroidal | |
| Coil Number | Autotransformer |
Product Description
Home Use Lighting 240VAC 24VAC Transformer
(If you need customized design,please click here)
Specification: ·Power rating 10W~25kw ·Primary Customized,AC 110V,115V, 120V, 127V,220V,230V, 240V etc,50HZ/60HZ ·Secondary Customized,AC 12V,24V,36V, 48V,120V,240V etc ·Power factor 0.9 to 0.98 ·Efficiency 90%-99% ·Voltage regulation 16-1.6% ·Output no-load loss 0.5-10W ·Temperature rise ≤65°C
Feature: ·Smaller in size ·Cost effective ·Easy to mount ·High efficiency ·Low leakage flux ·Low hum noise ·Low stray field ·Lower off-load power consumption

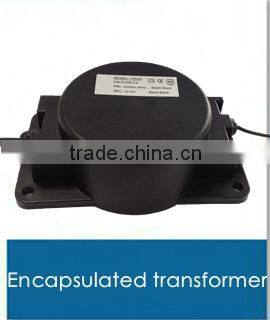

Mounting (2 kinds): ·Parts for mounting supplied(rubber mats, screws and nuts) ·Central proxy resin encapsulation and drilling | |
Technical parameters
| Rated Power(VA) | Voltage Regulation (%) | Efficiency (%) | Dimension(mm) | Weight (Kg) | |
| Height | Diameter | ||||
| 30 | 16 | 83 | 30 | 80 | 0.6 |
| 100 | 11 | 88 | 42 | 100 | 1.3 |
| 150 | 7.3 | 90 | 45 | 115 | 1.85 |
| 200 | 6.2 | 91 | 53 | 123 | 2.3 |
| 250 | 5.6 | 92 | 53 | 128 | 2.6 |
| 300 | 5.3 | 93 | 55 | 135 | 3 |
| 400 | 4.6 | 94 | 60 | 140 | 3.8 |
| 500 | 4.3 | 95 | 66 | 146 | 4.5 |
| 800 | 4 | 95 | 85 | 160 | 7 |
| 1000 | 3.8 | 96 | 90 | 165 | 8.5 |
| 1200 | 3.3 | 96 | 95 | 168 | 9 |
| 1500 | 3 | 96 | 100 | 173 | 9.5 |
| 2000 | 2.9 | 96 | 110 | 183 | 13 |
| 4000 | 2.2 | 97 | 135 | 245 | 23 |
| 6000 | 2 | 98 | 155 | 285 | 33 |
| 10000 | 1.8 | 98 | 185 | 335 | 49 |
| 15000 | 1.7 | 99 | 205 | 375 | 69 |
| 20000 | 1.6 | 99 | 235 | 415 | 95 |
| 25000 | 1.6 | 99 | 245 | 435 | 115 |
The above parameter is only for your reference, customer-made is subject to customer’s request.
We are able to manufacture the transformer which power is below 25KVA.
