Butterfly Hydraulic Valve
- Chongqing
- T/T
You May Like
Product Details
| Standard or Nonstandard | Standard | Structure | Butterfly | |
| Pressure | High Pressure | Power | Hydraulic | |
| Material | Stainless Steel | Temperature of Media | Normal Temperature | |
| Media | Oil | Port Size | 100-4000 | |
| Place of Origin | Chongqing, China | Model Number | Heavy Hammer Type | |
| Brand Name | Hi-Sea |
Product Description
Specifications
hydraulilc valve:1.Diameter:2.6m
2.Pressure:1.6MPa
3.Operating Pressure:1.6MPa
4.Physics Power:AC380V
hydraulic valve:

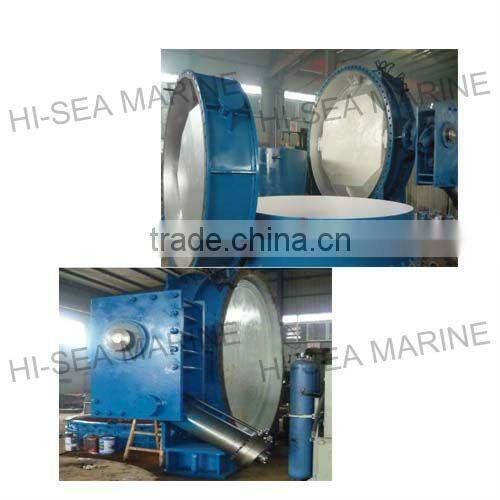

Butterfly Hydraulic Valve
All kinds of auxiliary equipments can be provided, including inlet valve devices (large, middle and small size single spherical valve; butterfly valve and gate valve covering a specification from 200 to 3400mm, hand-electrically operated and hydraulic control), governors(large, middle and small size single microcomputer governor covering an operation oil pressure from 2.5 to 16MPa), excitation devices (large, middle size single SCR microcomputer excitation system and small size single microcomputer integrated panel) and automatic systems etc. High quality and competitive price can be promised.
This is technical parameters of heavy hammer butterfly valve
Basic Parameters | ||
Nominal Diameter (mm) | 2600 | |
Nominal Pressure (MPa) | 1.6 | |
Test Pressure (MPa) | Sealing | Max. Water Head/120 |
Strength | 2.4 | |
Operating Pressure (MPa) | ≤1.6 | |
Applied Temperature (°C) | ≤8 | |
Applied Medium | Water, oil etc. | |
Electro-hydraulic Control Parameters | |
Physics Power | AC380 V ± 10% |
Control Power | AC220V, DC220V, DC24V |
Electrical Machinery Power | 4KW, 7.5KW |
Rated Oil Pressure | 16MPa |
Pressure Maintaining Range | ≈8~11MPa |
Oil Tank Volume | 63L |
System Medium | YB-N32, YB-N46 |
Materials of Main Parts | |
Name | Material |
Body | Carbon Steel |
Disc | Carbon Steel |
Shaft | Stainless Steel |
Body Sealing | Stainless Steel |
Disc Sealing Ring | Stainless Steel, Soft Graphite |
Transmission Shaft | Copper Alloy |
Packing | Soft Graphite |
Wallboard | Carbon Steel |
heavy hammer type butterfly valve
