350W DC-DC Converter SD-350 Series

FOB Price

US$ 10 - 50 / Piece

1 Piece(Min. Order)

Port SHENZHEN
Payment TermsT/T D/P D/A Credit Card PayPal

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Guangdong, China	Brand Name	GRAIGAR
Model Number	SD-350	Output Power	1 - 50W
Output Type	Dual	Output Voltage	350W

Product Description

Specifications

2:1 wide input range
Protections: Short circuit / Overload / Over voltage / Over temperature
1500VDC I/O isolation

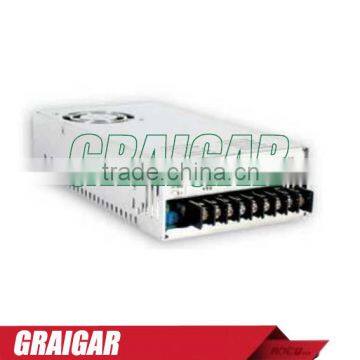

350W DC-DC Converter SD-350 Series

MODEL NO.: SD-350

Features:

2:1 wide input range
Protections: Short circuit / Overload / Over voltage / Over temperature
1500VDC I/O isolation
Forced air cooling by built-in DC Fan
100% full load burn-in test
24V and 48V input voltage design refer to LVD

SPECIFICATION:

MODEL

SD-350B

SD-350C

SD-350D

OUTPUT

DC VOLTAGE

12V

24V

48V

12V

24V

48V

12V

24V

48V

RATED CURRENT

57A

27.5A

14.6A

7.3A

60A

27.5A

14.6A

7.3A

60A

29.2A

14.6A

7.3A

CURRENT RANGE

0 ~ 57A

0 ~ 27.5A

0 ~ 14.6A

0 ~ 7.3A

0 ~ 60A

0 ~ 27.5A

0 ~ 14.6A

0 ~ 7.3A

0 ~ 60A

0 ~ 27.5A

0 ~ 14.6A

0 ~ 7.3A

RATED POWER

285W

330W

350.4W

300W

330W

350.4W

300W

350.4W

RIPPLE & NOISE (max.) Note.2

100mVp-p

120mVp-p

150mVp-p

200mVp-p

100mVp-p

120mVp-p

150mVp-p

200mVp-p

100mVp-p

120mVp-p

150mVp-p

200mVp-p

VOLTAGE ADJ. RANGE

4.5~5.5V

11~16V

23~30V

43~53V

4.5~5.5V

11~16V

23~30V

43~53V

4.5~5.5V

11~16V

23~30V

43~53V

VOLTAGE TOLERANCE Note.3

2.00%

1.00%

2.00%

1.00%

2.00%

1.00%

LINE REGULATION

0.50%

0.30%

0.20%

0.50%

0.30%

0.20%

0.50%

0.30%

0.20%

LOAD REGULATION

1.00%

SETUP, RISE, HOLD TIME

300ms, 50ms at full load

INPUT

VOLTAGE RANGE

B:19 ~ 36VDC C:36 ~ 72VDC D:72 ~ 144VDC

EFFICIENCY (Typ.)

74%

80%

84%

76%

81%

82%

78%

83%

87%

89%

DC CURRENT

14.4A/24V

16A/24V

17.6A/24V

7.6A/48V

8.8A/48V

9A/48V

6A/96V

INRUSH CURRENT (Typ.)

C:45A/48VDC D:45A/96VDC

PROTECTION

OVERLOAD

105 ~ 135% rated output power

Protection type: Shut down o/p voltage, re-power on to recover

OVER VOLTAGE

5V: 5.75~6.75V; 12V: 16.8~20V; 24V: 31.5~37.5V; 48V: 53~65V

Protection type: Shut down o/p voltage, re-power on to recover

OVER TEMPERATURE

95ºC± 5ºCTSW1 detect on main power transistor

Protection type: Shut down o/p voltage, recovers automatically after temperature goes down

ENVIRONMENT

WORKING TEMP.

-20 ~ +60ºC (Refer to output load derating curve)

WORKING HUMIDITY

20 ~ 90% RH non-condensing

STORAGE TEMP., HUMIDITY

-40 ~ +85ºC ,10 ~ 95% RH

TEMP. COEFFICIENT

±0.03%/ºC (0 ~ 50ºC)

VIBRATION

10 ~ 500Hz, 2G 10min./1cycle, 60min. each along X, Y, Z axes

SAFETY & EMC (Note.4)

SAFETY STANDARDS

Design refer to EN60950-1 CB, TUV

WITHSTAND VOLTAGE

I/P-O/P:1.5KVAC I/P-FG:1.5KVAC O/P-FG:0.5KVAC

ISOLATION RESISTANCE

I/P-O/P, I/P-FG, O/P-FG:100M Ohms/500VDC

EMI CONDUCTION & RADIATION

Design refer to EN55022(CISPR22) CLASS B

EMS IMMUNITY

Design refer to EN61000-4-2,3,4,6,8;ENV50204,EN55024,light industry level,criteria A

OTHERS

MTBF

209.4K hrs min. MIL-HDBK-217 (25ºC)

DIMENSION

215*115*50mm (L*W*H)

PACKING

1.1Kg; 12pcs/14.4Kg/0.92CUFT

NOTE

1.All parameters NOT specially mentioned are measured at normal input, rated load and 25ºC of ambient temperature.

2.Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor.

3.Tolerance: includes set up tolerance, line regulation and load regulation.

4.The power supply is considered a component which will be installed into a final equipment. The final equipment must be re-confirmed that it still meets EMC directives.
