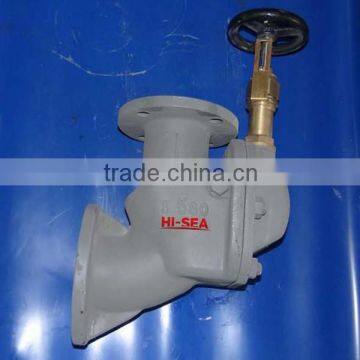

Marine Cast Steel Angle Storm Valve
USD $20 - $500
/ Piece
1 Piece(Min.Order)
- 300 Piece / Pieces per Month
- Any Port of China
- T/T
You May Like
Product Details
| Standard or Nonstandard | Standard | Structure | Angle | |
| Pressure | Low Pressure | Power | Manual | |
| Material | Casting | Temperature of Media | Normal Temperature | |
| Media | Other, Sea Water | Port Size | DN50-DN200 | |
| Place of Origin | Chongqing, China | Model Number | JIS F3060R | |
| Brand Name | HS | Application | Other, Marine, Sea water and fresh water |
Product Description
Storm Valve
Marine Cast Steel Angle Storm Valve:
1.Test standard:JISF7400.
2.End standard:JISB2210.
3.End type:Flange.
4.PN:5K/10k.
5.DN:50mm-200mm.
6.Main material:
- Body/Bonnet:ZG230-450;
- Seat:SS410/BC6;
- Stem:SS410/BC6;
- Disc:SS410/BC6.
7.Application:Seawater and freshwater piping.
8.Function:Such valves are used for discharging seawater or freshwater and preventing reflluence .
9.Fundamental diemnsions of Marine Cast Steel Angle Storm Valve JIS F3060R 5k&10k:
Chart 1 Fundamental dimensions of storm valve with PN 5k
| IMPA | Type | DN | Face to face/L(mm) | Flange diam./D(mm) | Flange pitch/C(mm) | Flange hole/n*d(mm) | Weight/kg |
| 754251 | F3060R 5k Angle | 50 | 170 | 130 | 105 | 4XΦ15 | 13.90 |
| 754252 | 65 | 200 | 140 | 130 | 4XΦ15 | 20.10 | |
| 754253 | 80 | 220 | 155 | 145 | 4XΦ19 | 24.10 | |
| 754254 | 100 | 250 | 170 | 165 | 8XΦ19 | 35.20 | |
| 754255 | 125 | 270 | 235 | 200 | 8XΦ19 | 52.70 | |
| 754256 | 150 | 310 | 265 | 230 | 8XΦ19 | 63.20 | |
| 754257 | 200 | 400 | 320 | 280 | 8XΦ23 | 83.70 |
Chart 2 Fundamental dimensions of storm valve with PN 10k
| IMPA | Type | DN | Face to face/L(mm) | Flange diam./D(mm) | Flange pitch/C(mm) | Flange hole/n*d(mm) | Weight/kg | |
| 754251 | F3060R 10k Angle | 50 | 170 | 155 | 120 | 4XΦ19 | 15.29 | |
| 754252 | 65 | 200 | 175 | 140 | 4XΦ19 | 22.11 | ||
| 754253 | 80 | 220 | 185 | 150 | 8XΦ19 | 26.51 | ||
| 754254 | 100 | 250 | 210 | 175 | 8xΦ19 | 38.72 | ||
| 754255 | 125 | 270 | 250 | 210 | 8XΦ23 | 57.97 | ||
| 754256 | 150 | 310 | 280 | 240 | 8xΦ23 | 69.52 | ||
| 754257 | 200 | 400 | 330 | 290 | 12XΦ23 | 92.07 | ||
10.Drawing of Marine Cast Steel Angle Storm Valve JIS F3060R 5k:
11. Certificate available:
