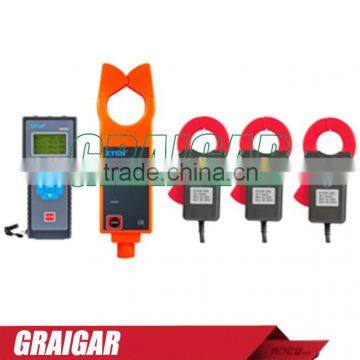

ETCR9500C-Three-Channel Wireless HV CT Ratio tester

Functions

The on-line measurement and detection for primary and secondary current, transformation ratio, error, phase (group) difference, polarity, phase sequence, and leaker in the three-channel high & low voltage current transformer and the voltage transformers

Power supply

HV Detector DC6V alkaline batteries (1.5V AAA × 4)

Principal machine: DC6V alkaline batteries (1.5V AAA × 4)

30-hour continuous operation available

Test mode

Clamp CT, HV 1CT, LV 3 CT double- shield

Transmission mode

High-pressure tested data transmitted through wireless network, with a linear transmission distance of 20m;

Range

HV detector 1st: 0.1mA ~ 1000A

LV current clamp 2nd: 0.01mA ~ 10A

Resolution

HV detector: 0.1mA; LV current clamp: 0.01mA

Primary circuit test accuracy

(23 C ± 3 C, below70% RH)

0.0mA-9.99A: ±1%±5dgt

10.0A-49.9A: ±2%±5dgt

50.0A-199.9A:±3%±5dgt

200A-600A:   ±4%±5dgt

601A-1000A:  ±5%±5dgt

Secondary circuit test accuracy

0.00mA-10A: ±1%±5dgt (three-channel being displayed in one screen)   (23C±3C less than 70%RH)

CT ratio

Three kinds of transformation ratio indications :

(1)convert the transformation ratio based on the adjustable basic value of 5A for secondary circuit current; (2)convert the transformation ratio based on 10kV-YY of 10kV/380V, that means 1st means the current of the line under 380V, 2nd means the secondary circuit current of CT under the 380V, and then calculate the ratio between the 10KV line and the secondary circuit;

(3)the measured current ratio can be calculated by the measured CT ratio between the primary and secondary circuit)

ReferenceRange

Reference range of transformation: 0.00A ~ 99.99A, the default secondary circuit  current is transformed to 5A;

Range of Ratioerror

(F.Er)

0.0% ~ 9.9%, the error between the measured CT ratio and the preset CT ratio

Range of CTratio

0000-9999/0.0A-9.9A

Range of Ratioerror

0.0%- 9.9%, the principal machine can sound a alarm of “beep - beep – beep” if the measured value is more than the preset error.

Phase polarity

Symbol  indicated for in-phase positive polarity

Symbol  indicated for in-phase negative polarity

Indication of Phase Sequence

Cursor in clockwise rotation and “Positive Phase”  indicated for positive phase sequence

Cursor in counterclockwise rotation and “Negative Phase”  indicated for negative phase sequence

Indication of Error

Symbol “Error” indicated if  the tester can’t identify the phases, polarity,  and phase sequence properly;

Data Storage

1500 sets of dada memory; press the Left arrow key to select data, and to save and auto-number the selected data (the good condition of data available under power-down or battery replacement)

Automatic Recording Interval Time

From 00 minutes to 99 minutes, the tester stops automatic record if being set to 00 minutes; the principal machine doesn’t shut down automatically if being set from 01 minutes to 99 minutes.

Sampling rate

3 times / sec

Shift

Full-automatic shift

Dimensions

Principal machine:W75mm × H170mm × T30mm;

HV detector: W 76mm × H 255mm × T 31mm;

LV current clamp: W 70mm × H115mm × T 38mm;

Clamp Size

HV detector clamp: φ48mm

LV current clamp: 25mm × 30mm

Voltage

Less than 70kV voltage for line test(operation by being connected to 5 insolating rods required)

Display Mode

LCD: 128dots × 64dots;

backlight available for dark areas

LCD Size:

44mm × 27mm;

Data Retention

Press the Left arrow key to retain the data ; press the Left arrow key to cancel retention if the symbol “HOLD” displays;

Data Search

Press the MEM key and the Arrow key to search data;

Overflow Display

Overflow available if being out of range: the symbol “OL A” displayed;

Zero-signal indication

The symbol “---” is shown if the principal machine can’t receive the signal from the HV detector;

Backlight Control

Available; ON / OFF means to open /close the backlight;

Alarm prompt

The principal machine can sound an alarm of “beep - beep – beep” if the measured value is more than the preset error. and press the Right arrow key to launch or stop the alarm function;

Auto power-off

Automatic power-off available after about 15 minutes as of starting;

Battery voltage

The low- voltage symbol is displayed to remind user to replace the battery if the battery voltage is lower than 4.8V;

Weight

Principal machine:240g (including batteries)

HV detector: 335g (including batteries)

LV current clamp: 150g × 3

Total weight: 10kg (including instrument box and the insulating rods)

Requirements on Interferences

No strong electromagnetic interference; no interference from 433MHz and 315MHz channel

Operating temperature and humidity

-25C-45C; less than 80%Rh

Storage temperature and humidity

-10C-60C; less than 70%Rh

Insulating rod size

Outer diameter φ32mm, inner diameter φ24mm, 1m /piece, 5 pieces

Lead length ofLV current clamp

2 m / Piece

Dielectric strength

AC100kV/rms between HV detector cover and the 5^th insulating rod; the AC1000V/rms between the principal machine and the LV current clamp shell between

Structure

Anti-leak type II (HV detector)
