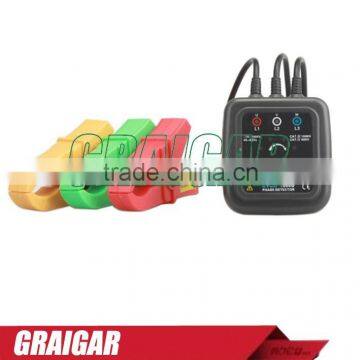

HOT SALE! ETCR1000D-Large caliber Non-contact Phase Sequence Detection
Negotiable
/ Piece
1 Piece(Min. Order)
- shenzhen
- T/T Credit Card PayPal
You May Like
-
ETCR148-Super-large Caliber Clamp Leakage Current Sensor
-
2013 Best Quality High Accuracy and Stability Phase Meter ETCR4100 Double Clamp Digital Phase Meter
-
ETCR9300B-Low Voltage Current Transformation Ratio Tester
-
ETCR9500C-Three-Channel Wireless HV CT Ratio tester
-
HOT SALE ! ETCR3000B Earth Resistance Soil Resistivity Tester
-
ETCR2000A+ Clamp-On Digital Ground Resistance Tester
Product Details
| Model Number | ETCR1000D, ETCR1000d | Type | Voltage Regulator | |
| Brand Name | ETCR, Graigar | Place of Origin | Guangdong, China |
Product Description
HOT SALE! ETCR1000D-Large caliber Non-contact Phase Sequence Detection
PRODUCT DESCRIPTION
Introduction
Safe and Time Saving | Traditional phase sequence measurement methods must poke the three-phase wire terminal, and connect the three bare alligator clips or test pins of phase sequence meters to the three bare firing lines, while ETCR1000D uses clamp non-contact measurement, without taking off the wire and no need to contact high-voltage bare fire-wire, the test can be made by directly clamping the three-phase insulating sheath by three super-sensitive high-insulated clamps. Conducting measurement on sheathed cable significantly improves the safety of field testing, effectively protect the operator’s personal safety and increase productivity! |
Convenient Operation | Instrument base plate is provided with magnet, instrument can adsorbed on the metal shell when testing, the operation more convenient. |
Multi-Purpose | In addition to phase sequence detection, it also has the functions of live wire examination, simple power detection, fire-wire identification, phase deficiency determination, break location detection, DC line break and line maintenance, equivalent to 3 induction electric pens. |
Dynamic Display | LED dynamic display, intuitive and clear |
Sensitive and reliable | More sensitive ETCR1000D clamp, can even sense the AC voltage signal as low as a few Volts, with a wider range of live electricity. |
Beautiful and scientific | The three clamps of ETCR1000D are in three colors, Red, Yellow and Green; It is more in line with the distinction of three-phase line, and more scientific and artistic overall appearance. |
Ultra-low Power Consumption | ETCR1000D has a better power-saving performance with the maximum rated power of 100mVA. |
Technical Specifications
Functions | Phase detection (normal phase, reverse phase and phase deficiency), Live wire examination, Simple Power detection, Breakpoint location and Line maintenance. |
Power Supply | DC3V AA Mn batteries (R6P) ×2 PCS, Continuously working for 200 hours |
AC Voltage Range(V) | AC0-600V, 40-70Hz (Sine Wave Continuous Input) |
Clamp Wire Size | Diameter ø10-ø40mm |
LED Display | Positive Phase Sequence The four phase-sequence lamps blink in order (clockwise). Negative Phase Sequence The four phase-sequence lamps blink in order (counterclockwise). Line-voltage IndicationL1 L2 L3 lamp light up. Default Phase L1/L2/L3 lamp is off. Open Circuit L1/L2/L3 lamp is off. |
Power On Indication | Power On indication light turns on |
Auto Power off | After 5minutes, the meter automatically cut off power supply. |
Meter Dimension | Width, height, thickness 70mm*75mm*30mm |
Clamp Lead Length | 0.5m |
Meter Weight | 180g (with battery) |
Working Temperature and Humidity | -10c 55c below 80%rh |
Storage Temperature and Humidity | -20c-60c; below 90%rh |
Maximum Measured Voltage | AC600V |
Dielectric Strength | 5.4kVrms |
Maximum rated Power | 100mVA |
Safety Provisions | EN61010-1: 2001, EN61010-031: 2002, Pollution level 2, CAT iii(600V), Transient over-voltage 6000V |
Accessories | Meter: 1 Piece; Carrying case; 1 Piece. |
