Product Details
| Place of Origin | Chongqing, China | Brand Name | Hi-Sea | |
| Model Number | Aluminum Anode for Harbor &Offshore Engineering Facilities | Application | Cathodic Protection System | |
| Dimensions | Customer Required |
Product Description
Cathodic Protection Aluminum Anode
for Harbor and Offshore Engineering Facilities
The most commonly used aluminum alloy anodes are Al-Zn-In series and Al-Zn-Hg series, applicable to the cathodic protection of ships, ports and marine facilities in seawater, sea water cooling system and reservoir deposited water site and other construtures.
Aluminum zinc indium system (AZI) sacrificial anode is casted by high purity aluminum, zinc, indium and other metal alloy. Aluminum alloy anode is produced in line with the implementaion of GB4948-2002 Aluminum Zinc Indium Alloy Sacrificial Anode.
The aluminum alloy can prevent the corrosion of steel structure in seawater, widely used for the anti-corrosion of the ship hull, pressurized water tank, seawater pipeline, port and terminal facilities, marine engineering, drilling platform, condensator and pipelins in soil. The performance of aluminum anode is influenced by the chemical composition of the alloy, so we offer different composition of aluminum alloys to meet our customer requirements.
Implementing Standard
U.S.Mil-A-1800K/W, gb4948-2002
Main Performance
The driving voltage is low; light weight; high current efficiency.
Application
Aluminum alloy sacrificial anode is used for the metal anti-corrosion cathodic protection of ships, mechanical equipment, offshore engineering and port facilities in seawater as well as the protection of pipes, cables and other facilities in mud.
Specifications
16kg, 22kg, 23kg, 35kg, 50kg, 85kg, 120kg, 131kg, 180kg
Product Categories
1. Ordinary Aluminum Alloy Sacrificial Anode;
2. Highly Activated Aluminum Alloy Sacrificial Anode;
3. High Efficiency Aluminum Alloy Sacrificial Anode;
4. High Temperature Aluminum Alloy Sacrificial Anode;
5. Bracelet Type Aluminum Alloy Sacrificial Anode.
Note: our company can also design and produce all kinds of special specifications and properties of aluminum alloy sacrificial anode according to the different needs of customers.

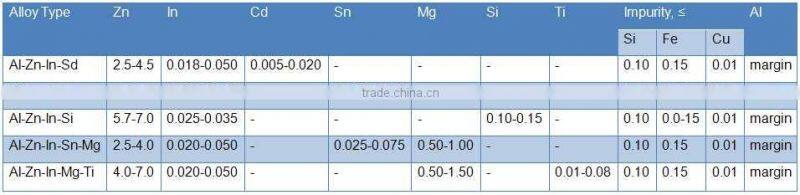

Chemical Composition
Electrochemical Properities

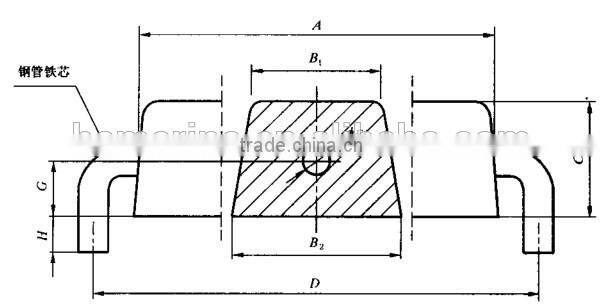

Drawing of Sacrificial Anode for Harbor & Offshore Engineering Facilities
Aluminum Anode for Harbor and Marine Engineering Facilities
Cathodic Protection Aluminum Anode for Harbor and Offshore Engineering Facilities
Sacrificial Anode for Cathodic Protection System
Marine Anode
Aluminium Alloy Sacrificial Anode
Zinc Alloy Sacrificial Anodes
Impressed Current Anodes
Deep Well Anode Under Construction
Anode Installation for Oil Pipeline
Magnesium Anode Under Construction
Anode Construction Site
Thermite Welding
Stray Current Testing
BV
DNV
