V1100 Desktop Single Beam Medical Visible Spectrophotometer 350-1020nm
Negotiable
/ Piece
1 Piece(Min. Order)
- Shenzhen
- T/T Credit Card PayPal
You May Like
-
Dual Beam Scanning UV-Vis Spectrophotometer UV1900PC 320*240 dot matrix LCD Display Built-in RAM
-
Precision UV1900PC Double Beam UV Visible Spectrophotometer with Professional Software
-
U5100 Double Beam Scanning UV-Vis Spectrometer Low Stray Light Dual Lamp
-
New Design U5000 Double Beam UV Vis Spectrometer Automatically High Quality
-
Advanced Double Beam UV Visible Spectromet U5200 8 Inches Touch Screen with Scanning Function
-
High Accuracy UV-Vis Scanning Spectrophotometer UV1800 Medical Laboratory Instrument
Product Details
| Brand Name | YK | Model Number | V1100 | |
| Size | 520*450*320mm | Weight | 8kg | |
| Focal Length | 6nm | Wavelength Range | 350-1020nm | |
| Measurement Range | 380-780 |
Product Description

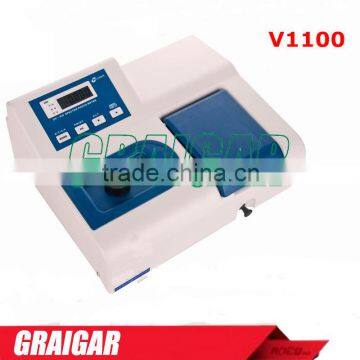

V1100 Desktop Single Beam Medical Visible Spectrophotometer 350-1020nm
This model is a simple single beam spectrometer. The wavelength is set manually from the dial on the front panel. Direct readout of transmission or absorption on the LED display. Measured values can be transferred to PC via the RS232 for further analysis. Low price and simple design make this model make this ideal tool for education or routine analysis.
Specifications:
Model | V1100 | VIS-722 | VIS-722(N.S) |
Optical System | Czerny-Turner (1200L/mm Grating) | ||
Wavelength | 350-1020nm | 320-1020nm | 320-1020nm |
Bandwidth | 6nm | 5nm | 4nm |
Wavelength Accuracy | +/-2nm | +/-2nm | +/-2nm |
Wavelength Repeatability | <=1nm | <=1nm | <=1nm |
Wavelength Set: | Manually | Manually | Manually |
Work Mode | T, A, C | T, A, C | T, A, C |
Photometric Accuracy | +/-1%T | +/-0.5%T | +/-0.5%T |
Stability | +/-0.004A/H @500nm | +/-0.004A/H @500nm | +/-0.003A/H @500nm |
Stray Light | <=0.3%T | <=0.3%T | <=0.2%T |
Data Output | RS232 | RS232 | RS232 |
Display Mode | LED | LED | LED |
Detector: | Silicon Photodiode | Silicon Photodiode | Silicon Photodiode |
Included Accessories
- 1 Main Instrument
- 1 Power Cable
- 4 x 10mm Glass Cuvettes
- 2 x 10mm Quartz Cuvettes
- 1 Cell Holder
- 1 Tungsten Lamp
- 1 Singal Cable
Optional Accessories
- 5mm-100mm Glass Cuvettes
- Tungsten Lamp
- 50mm-100mm Cell Holder
Overall Dimension & Weight
- Shipping Package Dimension: 520mm*450*320mm
- Gross Weight: 12kg
- Net Weight: 8kg
Applications
- Education in universities and colleges
- Environmental monitoring & control
- Food & Beverage production and quality control
- Agricultural monitoring
- Geology & metallurgy
- Gas & oil
