Dredging Cutter Head for Sale

FOB Price

US$ 1 - 70,000 / Piece

1 Piece(Min. Order)

Port Shanghai Qingdao and other ports
Payment TermsT/T Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Chongqing, China		Brand Name	Hi-sea
Model Number	Client's requirements		Part	Other, Dredging Cutter Head

Product Description

Dredging Cutter Head for Sale

dredging cutter head for sale cutter head dredging head

Dredge cutter head of cutter suction dredger is mainly used to cooperate with the dredger for homework.Dredger is a very common device in the clearing operations.Dredgers are in charge of dredging work and so on.The work efficiency is very high.However,the dredge cutter head is an important part of cutter suction dredger.It is available for cutting and stirring sediment.And it largely determines the production quantity and the dredging efficiency.

The basic cutter head skeleton includes a hub, a ring and several curved arms that link the hub and ring together. The adapters with teeth or replaceable cutting edges are fitted on the front side of the cutter arm.

Hi-sea dredge cutter head has professional design and high quality.The cutter head is multi-use and can be used for slurry, mud, sand, compacted sand, gravel, rocks, and minerals.Therefore,we provide a wide range of cutter heads to the clients. Dredge cutter heads can be customized according to clients’ special requests.

Features:
Low cost
Low spill
Various cutter heads
Refined tooth and cutting edge design
Easy to repair
Replaceable dredge cutter teeth
Cutter shaft, cutter bearing,blade and others can be optional

Parameters:

Dia of suction pipe	Inner dia(mm)	Rotated speed(rpm)	Blade No.
250-300	830	0-34	5
350-400	955	0-35	5
350-400	955	0-30	5
400-450	1330	0-30	5
500-550	1550	0-30	5-6
600-650	1750	0-32	5-6
600-650	1750	0-30	5-6
600-650	1750	0-24	5-6
600-650	1830	0-30	5-6
650-700	2000	0-30	5-6
700-750	2150	0-30	6
800-850	2260	0-30	6
850-900	2330	0-30	6
900-950	2400	0-30	6

Note:The designs of dredge cutter head can be customized according to your special requirements.For more information,please contact us directly.

Drawing of Dredging Cutter Head for Sale

Detailed Image

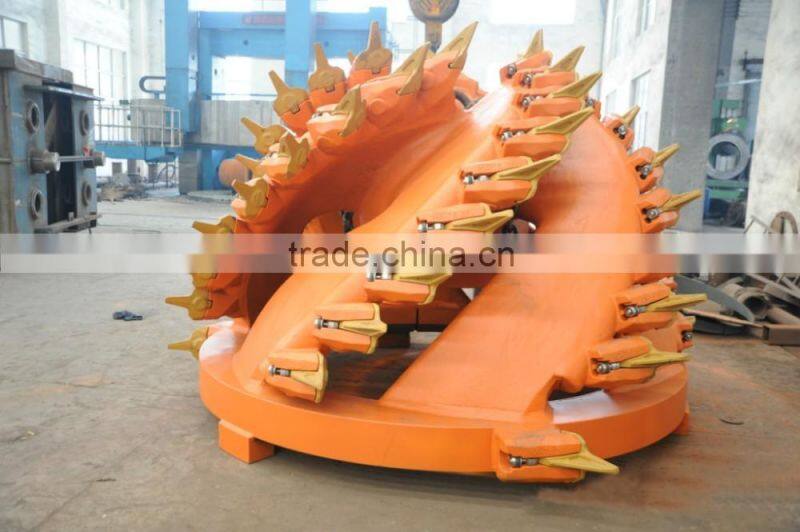

Dredging Cutter Head for sale(1)

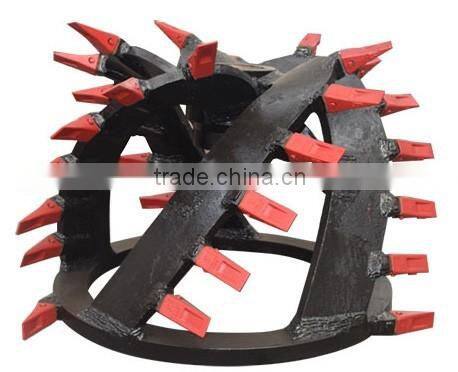

_{Dredging Cutter Head for sale}(2)

Certifications

RINA LR BV DNV

ABS NK CCS KR
