Home > Products > Building Equipments and Material > Hot Rolled Structural Steel Unequal Leg and Thickness Angle L-Shaped Section
Hot Rolled Structural Steel Unequal Leg and Thickness Angle L-Shaped Section
- any port in China
- T/T Credit Card
You May Like
Product Details
| Standard | AISI, ASTM, BS, DIN, GB, JIS | Dimensions | 250*90*9*13 | |
| Grade | Other, S235JR, S275J0, S275JR, S355 | Place of Origin | Chongqing, China | |
| Brand Name | Hi-Sea | Model Number | unequal leg and thickness steel angle | |
| Type | Other, steel angle | Application | Construction |
Product Description
Hot Rolled Structural Steel Unequal Leg and Thickness Angle L-Shaped Section
unequal leg and thickness angle hot rolled unequal leg and thickness angle structural steel L-shaped section unequal leg and thickness angle

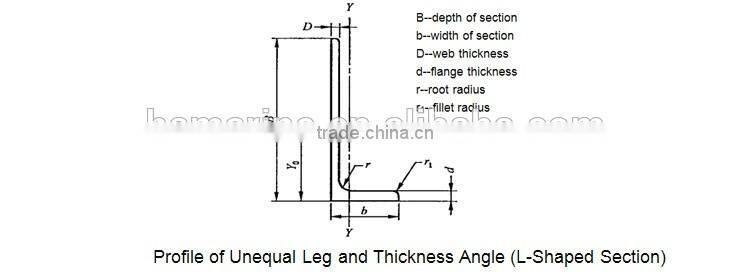

The unequal leg and thickness angles are a kind of special steel angles which are with unequal legs and different thickness of walls. They are also known as “L-shaped angle”. They are often used for shipbuilding. Compared with bulb flats, the unequal leg and thickness angles have larger section modulus and rigidity. What’s more, under the condition of same section modulus, the unequal leg and thickness angles can increase the loading and economic benefits. They are described by both leg length (longer first) and the both wall thickness (thinner first), eg. L250×90×9×13. In addition to shipbuilding usage, the unequal leg and thickness angles can be used for bridges, power transmission towers, beams... We are able to offer a wide range of materials and dimensions of the angle. If you are interested in our unequal leg and thickness angles, welcome to contact us.
Features of Hot Rolled Structural Steel Unequal Leg and Thickness Angle
• Made of structural steel
• Full selection of steel grades, such as grade CCSA, AB/AH32, Q235, Q275, S275JR...
• In line with GB/T 706-2008 or JIS G3192-2008
• Standard-sized, well-shaped, reliable
• A wide range of dimensions
Packing: in bundle, standard seaworthy packing or as required
All items are to be properly packed to ensure cargo safety during sea and inland transportation.
Delivery: 7 ~ 30 days after receiving deposit
For ex-stock, items will be delivered within 7 days after receiving deposit
For customized items, delivery date is subject to availability.
we have built long-term partnerships with many shipping carriers and airlines which have good reputation, reasonable price and excellent service. We are together to provide you the more cost efficient solution. Please contact us for more details.
Carbon Structural Steel and Alloy Steel Inverted Angle
In line with GB/T 706-2008 or JIS G3192-2008
Hot rolled, standard-sized, precision-made, reliable and economical
A wide range of materials: CCSA, AB/AH32, S275JR, S355, SS400...
Chinese Standard GB Hot Rolled Unequal Leg Angle
In accordance with GB/T 706-2008
Hot rolled
A wide range of dimensions,with the range of L2.5/1.6#~L20/12.5#
American Standard ASTM Carbon Steel Alloy Steel Angle Bar
To meet requirements of ASTM
Made of carbon steel or alloy steel
A wide range of dimensions
Galvanized Angle Bar Steel Angle
To meet the requirements of GB/T 706-2008, GB/T 700-2006 or GB/T 1591-2008
A wide range of materials, such as, CCSA, CCSAH32, CCSAH36, Q235, Q275, Q345...
Hi-Sea Marine is a professional supplier for marine equipment and marine materials. The product range for Hi-Sea Marine covers marine deck equipment, marine propulsion equipment, marine mooring equipment, marine outfitting equipment, marine kitchen equipment, marine electric equipment, marine hardware, marine steel plate, marine steel section, marine steel pipe...
For marine steel, Hi-Sea Marine is able to offer marine steel plates, marine steel sections and marine steel pipes. Marine steel sections include bulb flats, steel angles, wide flange beams ( H-beams), I-beams, flat bars, steel channels, half-round bars, T-sections... Our company is in the position to provide you a complete product scope. These products are provided with relevant certificates.
Hi-Sea Marine always holds that the principle of mutual benefit - between corporations, workers, customers - is the most effective route to profitable and sustainable growth.
Chongqing Hi-Sea Marine Equipment Import & Export Co., Ltd.
Sales Manager: Amanda Chen
Add: 15-1, Jinshan Matrix A, Saidi Rd., New North Zone, Chongqing 401122, China
Tel: +86-23-67868920 EXT 8006
Fax: +86-23-67868920
Mobile: +86-18875086812
Web:
Note: The detail held on the product pages is as a guide only.
