Home > Products > Low voltage porcelain insulator > Stay Ceramic Insulator
Stay Ceramic Insulator
- Shenzhen Shanghai Ningbo Qingdao Fuzhou
- T/T Money Gram Credit Card
You May Like
Product Details
| Place of Origin | Jiangxi, China | Brand Name | TSBXJ | |
| Model Number | 54-1,54-2,54-3,54-4 | Type | Insulator | |
| Material | Porcelain | Application | Low Voltage | |
| Rated Voltage | 0.4kV;11kV,33kV | Tensile Strength | 44kN~89kN |
Product Description
Product Description in Detail

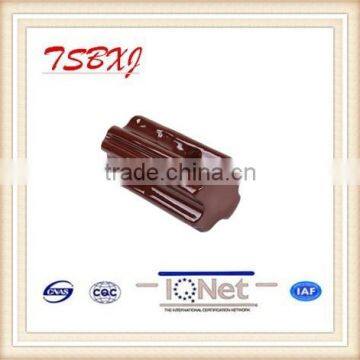

Stay type insulator,low voltage type
size:D64/73/86/89 *H89/108/140/172mm
Specification
| Type | 54-1/54-2/ 54-3/54-4 | ||||
| Main Dimensions(mm) | D | 64/73/86/89 | |||
| H | 89/108/140/172 | ||||
| Creepage Distance | |||||
| Power-frequency Puncture Voltage(kV) | |||||
| Average flashover voltage | Power-frequency | Dry(kV) | 25/30/35/40 | ||
| Wet(kV) | 12/15/18/23 | ||||
| Critical-Impulse wave | Positive(kV) | ||||
| Negative(kV) | |||||
| Radio-Influence-voltage Data | Test Voltage to ground(kV) | ||||
| Maximum RIV at 1000kHz(uV) | |||||
| Electro mechanical Failing Load(kN) | 44/53/89/89 | ||||
| Mechanical Impact Strength(n.m) | |||||
| Unit Weight(kg) | 0.5/0.65/1.2/1.85 | ||||
Procedures
Features
1).Porcelain insulators are mainly used on low-voltage overhead transmission and distribution lines to support and insulate conductors.
2).Low voltage type insulators usually serve in coastlands and rainy areas and well flashover performance in wet condition.
our products applies to power station,transmission tower/iron tower ,telegraph pole/wire pole,communciation,transformer,cable/electric cable,wire/electric wire,switch cabinet,meter box,etc.
Packing List
| Part No. | size of crate (mm) | pcs /crate | pcs /20ft container | total crate (crate) | size of pallet (mm) | total pallet(pallet) | G.W /case | N.W /case | G.W /20'FCL | N.W /20'FCL | |
54-2
|
430*310*265
| 40 | 19200 | 480 | 930*860*80 930*1290*80 |
12 12
|
29
| 26 | 14160 | 12480 | |
Factory show
welcome for your inquiry!
Contact Us
- Pingxiang Best Insulator Group Co., Ltd.
- Contact nameZhiWei Luo Chat Now
- Phone86-0799-6378286, 6378186
- AddressFutian Industrial Park, , Pingxiang, Jiangxi
