DVB-T2 Ghana India digital Satellite Receiver malaysia digital satellite stb

 DVB-T2  Ghana India digital Satellite Receiver malaysia digital satellite stb

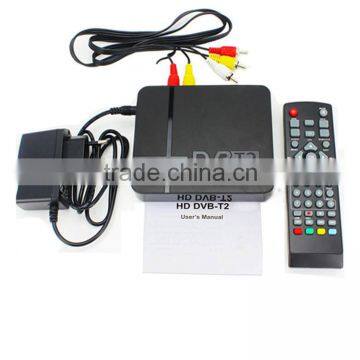

product name:DVB T2 Terrestrial Receiver DVB-T2 MPEG-2/-4 H.264  FTA Full HD  Mini Set Top Box

specifications

1 MLStandard DVB-T2/ High Definition MPEG4 AVC/H.264HP@L4,MPEG-2MP@HL
2 Automatic PAL/NTSC conversion
3 2000 channels TV and Radio programmable
4 The maximum speed of the traffic flow of at least 50 Mbit / sec
5 8 different favorite groups selection
6 Fully support to 7 days Electronic Program Guide(EPG)
7 JPEG BMP GIF support,Flesh tone extension,Black/White extension
8 4/8/16-bit OSD with anti-flickering
9 Channel search in automatic, manual and network search
10 Various channel editing function(favorite,move,lock,skip,delete,rename,find,sort)
11 Parental control for channels
12 Plug and Play installation, with an ease to use Menu System
13 Software upgrades through USB/Cardreader
14 Time set by GMT offset automatic and manual,Summer Time support
15 5 event timers,off/Once/Daily/Weekly/Monthly Mode
16 Subtitle support
17 VBI insertion for Teletext,CC and WSS
18 Automatic save for last channel
19 Support Logic Channel Number(LCN)
20 Active Antenna Power supply control



System Resources
- CPU/MPU/Mainchip: MSD7816 (MIPS 34K@600MHz)
- Flash memory: 32Mbit
- DDR-2 SDRAM: 512Mbit

Demult iplexer
- Standard: ISO/IEC 13818-1
- Input Max. Bit Stream Rate: 120Mbps

Tuner
- Maxlinear high sensit ive and reliable silicon tuner: MXL201
- Input Frequency Range : VHF: 174~230MHz, UHF: 470~862MHz
- IF Bandwidth : 6,7 or 8MHz
- Input Signal Level : -85dBm ~ -20dBm
- RF Input Connector: D-type connector(RF IN)
- Input impedance : 75Ω

De-modulator
- Modulat ion mode : OFDM (Orthogonal Frequency Division Mult iplexing)
- Demodulat ion :256QAM, 64QAM, 16QAM and QPSK
- Guard interval : 1/4, 19/128, 1/8, 19/256, 1/16, 1/32, 1/128
- FEC Code rates: 1/2, 3/5, 2/3, 3/4, 4/5, 5/6

Connector
- RF Input: 1 x IEC169-2, Female
- RF Output: 1 x IEC169-2, Male
- Digital Output: 1 x HDMI
- Analog Output: 1 x Scart
- Digital Autio Output: 1 x Coaxial
- USB: 1 x USB2.0 for upgrading, mult i-media play, PVR and t imeshifting

Environmental Cond itions
- Input Voltage: AC200 ~ 240V
- Power Consumpt ion: Max. 5W
- Stand-by Power Consumption: <0.5W
- Operat ing temperature: 0 ~ 45°C
2012 in Russia will be fully open DVB-T2 compatible DVB-T receive TV show more and more clear signal receiving more stable
