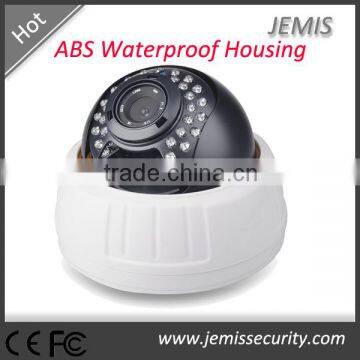

Sony CCD 480tvl dome ABS Waterproof Housing IR cctv camera housing

Model NO.

JM-SE126

VIDEO

Image Device

1/3"SONY SUPER HAD CCD
Sony Effieo 4140+673 CCD

TV System

PAL/NTSC

Total Pixels

PAL:1020(H)*596(V);NTSC:1020(H) x 508(V)

Effective Pixels

PAL:976(H) x 582(V);NTSC:976(H)*494(V)

Scanning System

2:1 Interlace

Synchronization

Internal

Horizontal Resolution

480TVL

Min. Illumination

0Lux(IR-ON )

S/N Ratio

>50dB

Video Output

1Vp-p,75ohm, BNC

LENS

Focal Length

 3.6/6/8mm fixed lens

OPERATIONAL(For OSD)

SHUTTER/AGC

AUTO

BACKLIGHT

ON/OFF

MIRROR

ON/OFF

BRIGHTNESS

AUTO

CONTRAST

1-128

SHARPNESS

1-128

HUE

1-128

GAIN

AUTO

MOTION DETECTION

ON/OFF

DETECT SENSE

0-111

BLOCK DISP

ON/OFF

MONITOR AREA

ON/OFF (4 AREA)

Privacy Mask

ON/OFF (4 AREA)

CAMERA ID

ON/OFF

ATR

ON/OFF

Noise Reduction

2D-DNR

NR MODE

Y/C(Y LEVEL 0-4;C LEVEL 0-4)

HLC

ON/OFF

OSD Menu

8 languages

White Pixel Detection and Compensation

Static and Dynamic

External Synchronization

Line-Lock

White Balance

ATW / PUSH / USER1 / USER2 / MANUAL / PUSH LOCK

BURST

ON/OFF

DELAY CNT

0-10

Electronic Shutter Speed

PAL:1/50 ~ 1/100,000sec; NTSC:1/60 ~ 1/100,000sec

IR Distance

30pcs ir leds with 20m distance

Infrared Spectrum

850nm

ENVIRONMENTAL

Operation Temperature

-10℃~ +50℃

Storage Temperature

-20℃~ +50℃

Vandal-proof Casing

Outdoor(IP66 waterproof)

ELECTRICAL

Input Voltage/Current

DC12V,<600mA

Adapter Requirement

DC12V 1.5A
