Small Waterproof IR Bullet IP Camera SA7801B-MPC-WDRD hd Surveillance Camera

Specifications

Small Waterproof IR Bullet IP Camera SA7801B-MPC-WDRD

1. Basic Description
SA7801B- MPC-WDRD series based on IP network, achieve network digital surveillance, transmit clear, smooth video surveillance images.

SA7801B- MPC-WDRD series use 1/3" Progressive Scan WDR CMOS and advanced H.264 codec, Maximum resolution : 1280*720, Excellent wide dynamic function, low light performance. Supports dual streaming, Transmit high-quality H.264 video in the low-bandwidth network environment smooth , also supports MJPEG compression; Built-in fixed aperture zoom lens; Support day/night auto converting; dual IR-Cut filter, even in low light environment or even black can output a clear picture. 36 IR LEDs, IR distance: 30 M(max). Support audio, alarm function, provide third-party systems integration interface.
This series of products using the waterproof design and removable shell , not only provides excellent waterproof and dustproof performance, but also easy installation and removal, suitable for indoor / outdoor environment.
The series of products applicable for corridor, warehouse, residential zone, underground parking, supermarkets, bars and other low light or total darkness environment, It is a good choice that upgrade from analog surveillance to network digital surveillance
With video surveillance system software platform, can realize different network environments of large-scale network surveillance.

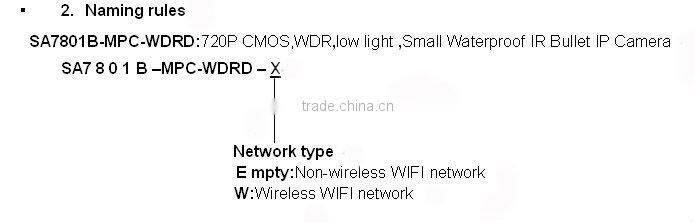

3. Expand Type
Basic:SA7801B-MPC-WDRD
WIFI:SA7801B-MPC-WDRD-W

4. Key Features
* Max resolution:1280×720, output Real-time HD 720P image
* 1/3" Progressive Scan CMOS, Capture motion images without jagged
* WDR≥100dB
* Excellent low light performanc, Min.Illumination: 0.05Lux@(F1.2)
* Support Color/BW mode converting (dual IR-Cut filter)
* Built-in fixed aperture zoom lens, Focal Length :2.8-12mm
* 36 IR LEDs, IR distance 30m
* H.264/MJEG is optional, dual streaming, low bandwidth, and high quality.
* Support two-way talking
* Support Micro SDHC card storage; SD2.0 standard, maximum storage 32G
* Support 4 areas privacy mask
* Support motion detection, network fault detection and alarm video, image snapping
* Built-in Web server enables the use of a standard Web browser for viewing and management
* Support ONVIF protocol

5. Applications Scenarios
The series of products applicable for corridor, warehouse, residential zone, underground parking, supermarkets, bars and other low light or total darkness environment.
