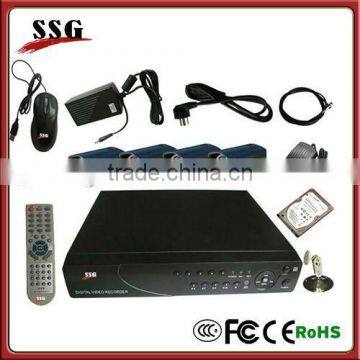

4 Channel H.264 DVR with built-in GSM alarm system with free CMS software

Specifications

4 Channel H.264 DVR with built-in GSM alarm system with free CMS software

Name: 4 Channel DVR with built-in GSM alarm system

Model: SA-1168-DVR04-2S-GSM

Attestation: CCC,CE,ROHS

Type:Alarm +CCTV DVR

Description:

Parameter:

DVR Specification and parameters:

Video Signal PAL system(625 line) NTSC system(525 line)

Video input Compound Video: 1.0V p-p/75Ω,BNC×4

Video output Compound Video: 1.0V p-p/75Ω,BNC×1,VGA×1

Audio input RCA connector×1

Audio output RCA×1Audio output;RCA×1; Intercom output

Network compatibility 10/100M10/100M self-adaption Ethernet port; Support LAN,WAN,3G and ADSL dynamic IP network.

Serial port RS485,support PTZ control, Lens control.

backup methods Support USB,CDRW,DVDRW and network backup

Display resolution ratio 704×576;VGA:1024×768(Optional)

Compressed resolution ratio 352×288

compressing standard H.264

Hard disk 1unit2THard disk

electronic clock Y/M/D; H/M/S

privacy protection 128 data encryption+ second level command management.

Power supply:DC12V/3A

power consumption 10W(without Hard disk)

Temperature/Humidity: +5°C - +50°C;humidity:< 90%

Keeping temperature -20°C - +70°C;humidity:< 95%

Size W×H×L:255×45×225mm

GSM alarm parameters:

Alarm receiving method Wireless signal output, transmitting distance:≥150 meters.

Alarm phone numbers 6 group,phone number:support 16 digital at most

E×ternal siren sound ≥110dB.

Frequency 315MHz/433MHz

Situation:

1. Surveillance equipment and wireless alarm system: 2 in one! During alarm, user can use mobile phone(which must support one of the operating systems as follows:Windows Mobile .Symbian3.Symbian5, Iphone, blackberry, Android) to visit DVR.

2. Mini factory monitoring, all DVRs can use client software to monitor.

3. Small supermarket, warehouse.

4. Shop, enterprise.

5. Villa monitoring, support video call alarm during alarm.

6. Base station, oil well monitoring.

7. Farm, orchard.

8. Can work with CMS.

9. School monitoring

10. hospital monitoring

11. Fishpond.

4 channel DVR Standard Functions:25 frames per second for Real-time Monitoring;With VGA;4 channels for video input,1 channel for video output,1 channel for audio,Support remote monitoring, USB port and operation by mouse,Support synchronous playback of the first, second and forth channels; Support video recording while playback; Video stream and frame rate are adjustable; Can be monitored by mobile; Support a SATA harddisk (more than 2000G); Support remote monitoring by mobile that with the operating system of Windows Mobile, Symbian3, Symbian5, iPhone, Blackberry and Google; Support video circular viewing,with operation keyboard and 485 control port(can control PTZ rotation) , signals can be transmitted by video cable or twisted-pair cable.

TEL Alarm Functions:

Auto dial 6 groups of alarm phone numbers; Record 10 seconds voice message; Sound/mute alarm; Telephone line anti-cutting function; Listen-in the spot; Remote control through mobile phone; With built-in siren; Volume of the siren is adjustable; Support 5 remote control and 20 wireless sensors.

Standard package for adding TEL alarm function: built-in lithium battery x 1 + built-in siren x 1 + Telephone line x1, learning code.

GSM Alarm Functions:

Alarm report by SMS and auto dial; Arm/disarm by SMS; Listen-in the spot; Message auto storing when power off; Built-in backup lithium battery, Sound/mute alarm; Listen-in the spot; Remote control through mobile phone; Support 5 remote control and 16

3G Alarm Functions:

1.watch analog camera video video mobile video call,2. defence zone paired with camera and fixed videio channel,trigger relative camera and dial video call number,3.wireless alarm function,Support 5 remote control and 20 wireless sensors,4.can connect external MIC and sperker to make two-way talk,5.10 seconds voice recording function.
