HG Plastic oil bottle blow moulding machines
- GUANGZHOU
- T/T
You May Like
Product Details
| Condition | New | Product Type | Plastic Bottle | |
| Place of Origin | Guangdong, China | Brand Name | HENGGANG | |
| Model Number | HGA.C-2C | Voltage | 380v | |
| Power(W) | 72kw | Dimension(L*W*H) | 3400*2200*1900mm | |
| Weight | 3500kg | Certification | CE | |
| Warranty | 1 YEAR | After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
Detailed Product Description of Plastic oil bottle blow moulding machines:
Double Cavity,1300bph for 5L, this blow molding machine is specially designed for oil bottle blowing.
Features of Plastic oil bottle blow moulding machines:
1.Using hydro-pneumatic linkage mold clamping mechanism which runs stably with high speed and great clamping force.
2.The control system adopts man-machine interface with Mitsubishi PLC which is of high sensitivity and accuracy.
3.Using coated infrared heating lamps which enable fast and stable heating.
4.Using centralized noise-reducing air recycling system which minimize the noise as much as possible.
5.Using slide core in stepping unit which is easy to operate and saves energy.
Parameters of Plastic oil bottle blow moulding machines:
Item | HGA.C-2C | |
Container | Max. Container Volume | 5000 ml |
Neck Diameter Range | 50 mm | |
Max. ContainerDiameter | 180 mm | |
Max. Container Height | 330 mm | |
Theoretical Output | 1300 bph | |
Molding | Clamping stroke | 200 mm |
Stretching stroke | 500 mm | |
Bottom Stoke | 50 mm | |
Preform distance | 200 mm | |
Preform Holder | 500 pcs | |
Cavities | 2 No. | |
Electrical System | Max. Heating Power | 72 kw |
Heating Power | 24 kw | |
Air System | Operating Pressure | 7-8 kg/c m2 |
Low Air Consumption | 2000 ltr/min | |
Blowing Pressure | 35 kg/c m2 | |
High Air consumption | 4500 ltr/min | |
Cooling Water | Operating Pressure | 5-6 kg/c m2 |
Temperature | 8-12°C | |
Flow rate | 60 ltr/min | |
Machine | Size(L×W×H) | 3400×2200×1900mm |
Weight | 3500 kg | |

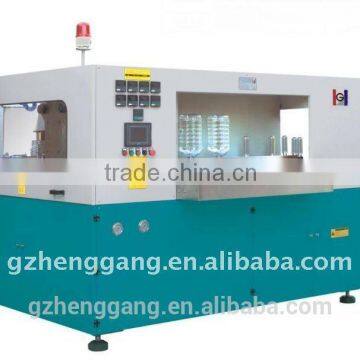

Machine Picture of Plastic oil bottle blow moulding machines:
Product made by Plastic oil bottle blow moulding machines:
Our factory:
All the cavity molds(moulds) of Plastic oil bottle blow moulding machines are manufactured by ourselves. We have our own CNC processing machine and experienced engineer, who has been making cavity molds at least 5 years. Besides the cavity molds, other hardware parts are also produced by ourselves. Thus we have strong confidence in the stability of our machine because all parts can jointed and worked as a integrated unit.
The most frequently used material for molds are Aluminum, S136(stainless iron):
Our Plastic oil bottle blow moulding machines has already accquired the CE certificate:
:
