PET hot filling stretch blow moulding machine
- Guangzhou
- T/T Credit Card
You May Like
Product Details
| Place of Origin | Guangdong, China | Brand Name | HENGGANG | |
| Model Number | HGA.H-6C | Condition | New | |
| After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
Detailed Product Description of hot filling stretch blow moulding machine:
6 Cavity,2600bph for 1500ml, could blow all kinds of shapes, different volumes of hot filling PET bottles.
Features of hot filling stretch blow moulding machine :
1.Using hydro-pneumatic linkage mold clamping mechanism which runs stably with high speed and great clamping force.
2.The control system adopts man-machine interface with Mitsubishi PLC which is of high sensitivity and accuracy.
3.Using coated infrared heating lamps which enable fast and stable heating.
4.Using centralized noise-reducing air recycling system which minimize the noise as much as possible.
5.Using slide core in stepping unit which is easy to operate and saves energy.
Parameters of hot filling stretch blow moulding machine:
Item | HGA.H-6C | |
Container | Max. Container Volume | 1500 ml |
Neck Diameter Range | 18-38mm | |
Max. ContainerDiameter | 98 mm | |
Max. Container Height | 320 mm | |
Theoretical Output | 2600 bph | |
Molding | Clamping stroke | 120 mm |
Stretching stroke | 400 mm | |
Bottom Stoke | 60 mm | |
Preform distance | 114 mm | |
Preform Holder | 96 pcs | |
Cavities | 6No. | |
Electrical System | Max. Heating Power | 60 kw |
Heating Power | 35 kw | |
Air System | Operating Pressure | 8 kg/c m2 |
Low Air Consumption | 2000 ltr/min | |
Blowing Pressure | 30 kg/c m2 | |
High Air consumption | 24000 ltr/min | |
Cooling Water | Operating Pressure | 7 kg/c m2 |
Temperature | 10-12°C | |
Flow rate | 40 ltr/min | |
Machine | Size(L×W×H) | 5350×2100×2500mm |
Weight | 6500 kg | |

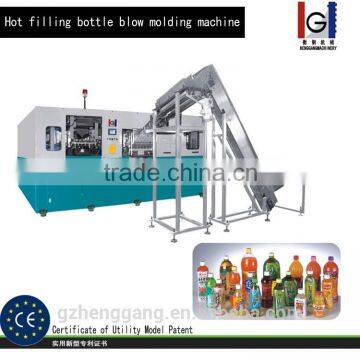

Machine photo of hot filling stretch blow moulding machine
Factory overview:
We have two work shops to produce the hot filling stretch blow moulding machine. One is to process the metallic components. We have CNC, drilling, grinding machines etc.. We can be sure about the perfect matching between different parts:
Technical support:
Besides the good quality of hot filling stretch blow moulding machine, a good bottle design is very important for the client. We establish a experienced engineering team, to offer professional technical support to our clients.
Sample drawings made by CAD and UG software
Actual molds on site shooting:
Imported Electrical components:
The major electrical components of hot filling stretch blow moulding machine are using imported famous brand. The high quality electrical components strenthen the stability of our Plastic pet cans blowing machines
After-sales service:
We will send engineers abroad once you decide to choose our hot filling stretch blow moulding machine
Certifications
Our hot filling stretch blow moulding machine has acquired the CE and other domestic patents
