Plastic hot filling bottle blowing machine
- Guangzhou
You May Like
Product Details
| Condition | New | Application | Bottle | |
| Plastic Processed | PET | Blow Moulding Type | Stretch Blow Moulding | |
| Automatic | Yes | Place of Origin | Guangdong, China | |
| Brand Name | HG | Model Number | HGA.H-6C(1500ml) | |
| Voltage | 380v | Power(W) | 60kw | |
| Dimension(L*W*H) | 5350x2100x2500mm | Weight | 6500kgs | |
| Certification | CE | Warranty | 1 year | |
| After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
Detailed Product Description of Plastic hot filling bottle blowing machine:
This blow molding machine can contain hot drinks like tea or others which temperature of drinks may vary from 80-100 degree.
Features of Plastic hot filling bottle blowing machine:
1.Using hydro-pneumatic linkage mold clamping mechanism which runs stably with high speed and great clamping force.
2.The control system adopts man-machine interface with Mitsubishi PLC which is of high sensitivity and accuracy.
3.Using coated infrared heating lamps which enable fast and stable heating.
4.Using centralized noise-reducing air recycling system which minimize the noise as much as possible.
5.Using slide core in stepping unit which is easy to operate and saves energy.
Parameters of Plastic hot filling bottle blowing machine:
Item | HGA.H-6C | |
Container | Max. Container Volume | 1500 ml |
Neck Diameter Range | 18-38mm | |
Max. ContainerDiameter | 98 mm | |
Max. Container Height | 320 mm | |
Theoretical Output | 2600 bph | |
Molding | Clamping stroke | 120 mm |
Stretching stroke | 400 mm | |
Bottom Stoke | 60 mm | |
Preform distance | 114 mm | |
Preform Holder | 96 pcs | |
Cavities | 6 No. | |
Electrical System | Max. Heating Power | 60 kw |
Heating Power | 35 kw | |
Air System | Operating Pressure | 8 kg/c m2 |
Low Air Consumption | 2000 ltr/min | |
Blowing Pressure | 30 kg/c m2 | |
High Air consumption | 24000 ltr/min | |
Cooling Water | Operating Pressure | 7 kg/c m2 |
Temperature | 10-12°C | |
Flow rate | 40 ltr/min | |
Machine | Size(L×W×H) | 5350×2100×2500mm |
Weight | 6500 kg | |

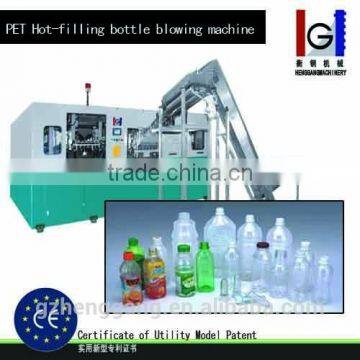

Machine photo of Plastic hot filling bottle blowing machine
Factory overview:
We have two work shops to producing the Plastic hot filling bottle blowing machine. One is to process the metalic components. We have CNC, drilling, grinding machines etc.. We can be sure about the perfect matching between different parts:
Technical support:
Besides the good quality of Plastic hot filling bottle blowing machine, a good bottle design is very important for the client. We establish a experienced engineering team, to offer professional technical support to our clients.
Sample drawings made by CAD and UG software
Actual molds on site shooting:
Imported Electrical components:
The major electrical components of Plastic hot filling bottle blowing machine are using imported famous brand. The high quality electrical components strenthen the stability of our Plastic pet cans blowing machines
After-sales service:
We will send engineers abroad once you decide to choose our Plastic hot filling bottle blowing machine
Certifications
Our Plastic hot filling bottle blowing machine has acquired the CE and other domestic patents
